Westerschelde 16 May 2017 |
Name |

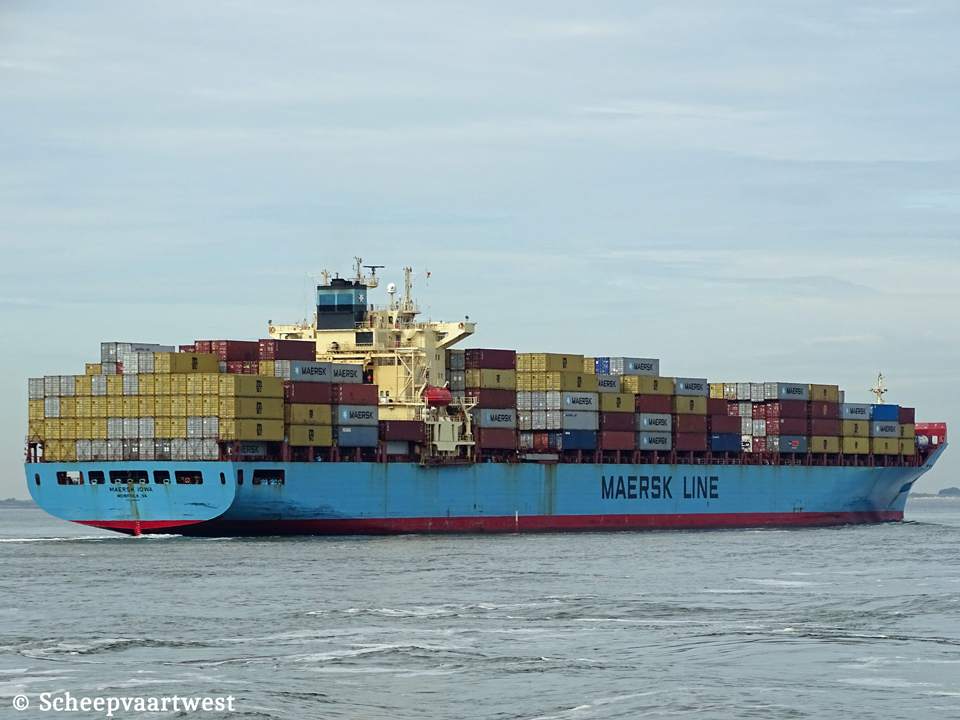

MAERSK IOWA |
Type |
Cellular containership - Panamax |
IMO-number |
9298686 |
Call sign |
KABL |
Flag |
United States of America |
Port of registry |
Norfolk |
GT |
50.686 t |
DWT |
61.454 t |
NT |
29.491 t |
Number of 20ft containers |
4.650 |
Container capacity 14t |
3.647 |
Reefer capacity |
700 |
Length |
292,08 m overall 277,00 m between perpendiculars |
Breadth |
32,30 m extreme |
Draught |
Summer: 13,52 m |
Depth |
21,70 m |
Speed |
Max: 24,4 knots |
Built |
2006 |
Keel laid |
25/07/2005 |
Date of completion |
10/01/2006 |
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
Yard number |
1630 |
Hull material |
Higher tensile steel |
Hull type |
Double hull |
Continuous decks |
1 |
Main engine |
1x Wärtsilä 8RT-flex96C - 2 stroke single acting 8 cylinder 960 x 2.500 mm combustion engine Mcr 45.778 kW / 62.240 hp at 102,0 rpm Csr 38.896 kW / 52.883 hp Builder: Hyundai Heavy Industries Co Ltd - South Korea |
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm |
Boilers |
1x Exhaust gas eEconomiser 1x Water tube auxiliary boiler |
Generators |
4x Hyundai/Himsen 9H25/33, 4 Stroke 9 cylinder 250 x 330 mm diesel engines each Mcr 2.160 kW connected with generators each 2.030 kW - 450 Volt 62 Hz |
Thruster |
1x Controllable pitch 1.335 kW / 1.815 hp, forward 1x Controllable pitch 810 kW / 1.101 hp, aft |
Tank capacities |
Ballast: 24.102 m³ |
Cargo gear |
Gearless |
Crew size |
28 |
Manager |
Maersk Line Ltd. Suite C, 2510, Walmer Avenue Norfolk VA USA |
Registered owner |
Maersk Line Ltd. USA |
Latest data adjustment |
19 January 2023 |
