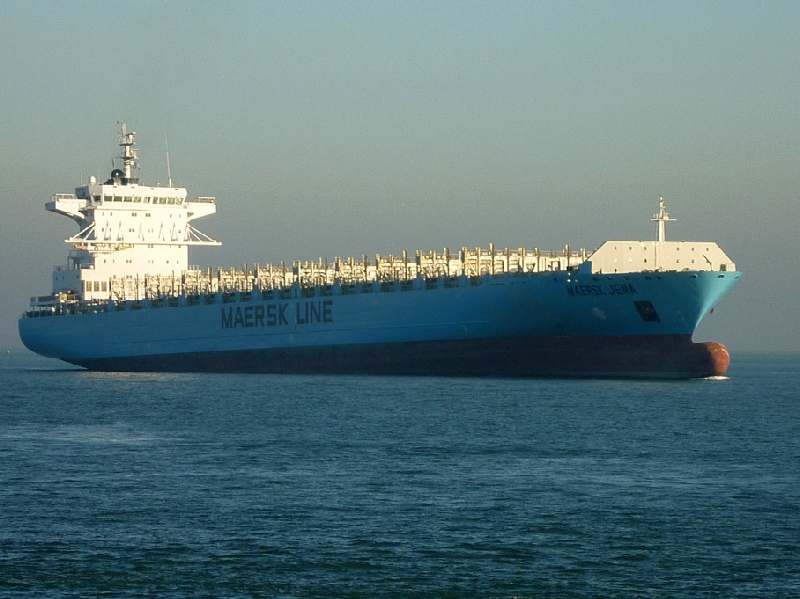

Maersk Jena 01
Westerschelde 10 November 2011


Name

MAERSK JENA

Previous names

2007-01/08/2007 Andes

Type

Cellular containership

IMO-number

9399739

Call sign

A8MG9

Flag

Liberia

Previous flag

Germany

Port of registry

Monrovia

GT

32.901 t

DWT

34.471 t

NT

13.452 t

Number of 20ft containers

In hold: 1.301

On deck: 1.550

Total: 2.851

Number of 40ft containers

1.372

Container capacity 14t

2.116

Reefer point

746

Length

224,50 m overall

216,81 m registered

212,50 m between perpendiculars

Breadth

31,00 m registered

Draught

Max.: 12,20 m

Keel to mast end

56,00 m

Freeboard

4.616 mm

Depth

19,70 m moulded

Speed

21,3 knots

Built

2007

Keel laid

16/03/2006

Launch date

20/02/2007

Date of completion

30/07/2007

Builder

Yangfan Group Co., Ltd.

169 Lujiazhi Road, Shenjiamen Putuo District

316100 Zhoushan , Zhejiang Province

People's Republic of China

Yard number

2047

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W 7L70MC-C - 2 stroke 7 cylinder 700 x 2.360 mm combustion engine Mcr 22.890 kW / 31.121 hp at 108,0 rpm

Year of manufacture: 2006

Manufacturer: Dalian Marine Diesel Co., Ltd.

1, Hai Fang Street Xigang District

116021 Dalian

People's Republic of China

Propellers

1x Solid propeller - aft at 108,0 rpm

Diameter: 7.100 mm - 5 blades

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 22,3 m²

1x Exhaust gas heated - 10,0 bar

Heating surface: 403,0 m²

Year of manufacture: 2006

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Machinery Industry Park Qingdao Development Area

266500 Qingdao

People's Republic of China

Electric installations

4x Plant 450 V each 2.140 kVA

1x Plant 450 V - 250 kVA

1x Plant 24 V - 117 Ah

1x Plant 24 V - 140 Ah

Diesel generators

4x Yanmar 6EY26LW - 4 stroke 7 cylinder 260 x 385 mm diesel engine each Mcr 1.840 kW connected with generators each 1.712 kW / 2.140 kVA / 450 Volt at 720 rpm

Emergency generator

1x Diesel generatorset 250 kVA / 200 kW at 1.800 rpm

Batteries

1x Battery for automation 140 Ah

1x Battery for start emergency engine 117 Ah

Compressed air receivers

2x Receivers each 8.000 litres - 33,0 bar

1x Receiver 500 litres - 33,0 bar

1x Receiver 1.500 litres - 10,0 bar

Bow thruster

1x Transverse thruster 1.300 kW / 1.767 bhp, forward

Diameter: 2.000 mm - 4 blades

Tank capacities

Heavy fuel oil: 4.511 m³

Marine diesel oil: 238 m³

Lub oil: 242 m³

Ballast water: 15.974 m³

Anchor equipment

3x Anchors weight each 9.900 kg

Chain length: 660,00 m

Diameter: 78 mm

Accommodation

For a crew of 23 persons with heating, ventilation

and air-conditioning

Cargo gear

Gearless

Manager

NSC Schifffahrts GmbH & Cie. KG

Dockland Van-der-Smissen-Str. 9

22767 Hamburg

Federal Republic of Germany

Operator

Maersk Line

Owner

FHH Fonds Nr. 37 MS "ANDES" GmbH & Co. KG

Van-der-Smissen-Str. 9

22761 Hamburg

Federal Republic of Germany

Renamed

2012 Fesco Korea

Liberia, Monrovia - Call sign: A8MG9

Owner: ms Andes Schifffahrtsgesellschaft mbH & Co KG

Manager: Reederei NSC Schiffahrt

Latest data adjustment

21 October 2022
