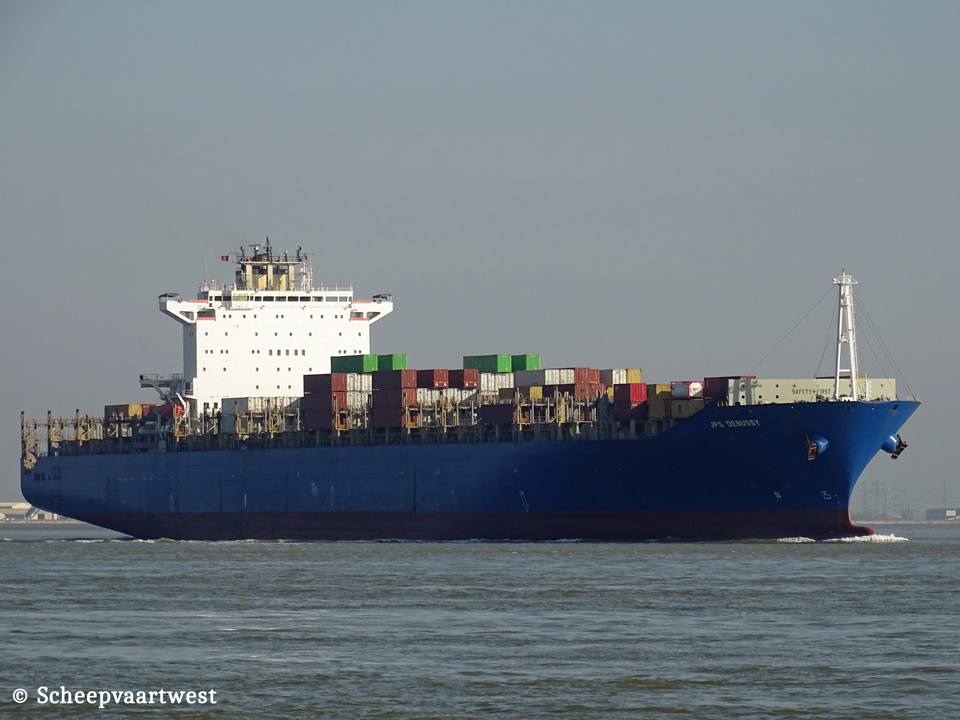

JPS Debussy IMO 9235907 01
Westerschelde 17 February 2016


Name

JPS DEBUSSY

Previous names

2001 - 2015 CMA CGM Debussy

Type

Cellular containership - Panamax

IMO-number

9235907

Call sign

SVBB6

Flag

Greece

Port of registry

Piraeus

Previous flags

  • 20/11/2001 Republic of Panama

  • 05/09/2006 French Southern & Antarctic Territories

  • 09/2006 - 2009 France - Marseille - Call sign: FOUH

  • 2009 - 2010 United Kingdom - Call sign: 2CSA8

GT

73.157 t

DWT

Summer: 80.250 t

NT

41.255 t

Number of 20ft containers

6.627

Container capacity 14t

4.555

Reefer capacity

500 on deck up to 3RD tier

Length

300,40 m overall

282,50 m between perpendiculars

Breadth

40,30 m overall

Draught

Summer: 14,271 m

Freeboard

Summer: 5.855 mm

Depth

24,10 m

Speed

25,9 knots

Built

2001

Keel laid

21/05/2001

Launch date

01/10/2001

Date of completion

03/11/2001

Builder

Hanjin Heavy Industries & Construction Co., Ltd.

Pusan

South Korea

Yard number

N-089

Hull material

Steel

Hull type

Single hull double bottom

Watertight bulkheads

22

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 12K-98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm internal combustion engine 68.520 kW / 93.098 hp at 104,0 rpm

Built: 2001

Builder: Hyundai Heavy Industries Co. Ltd. Industrial Plant & Offs, Ulsan - South Korea

Propellers

1x Screw propeller solid - aft at 104 rpm

Boilers

1x CHO Kangrim 137,00 m² - 10,0 bar

1x CHR Kangrim 645,00 m² - 10,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Main diesel generatorsets each 3.500 kVA - 2.800 kW - 4.022 hp

Emergency generator

1x Diesel generatorset 687 kVA - 550 kW - 826 hp

Bow thruster

1x 2.000 kW

Number of holds

8

Number of hatches

8

Cargo hatchways

16

13x 12,50 x 35,80 m

1x 12,50 x 15,90 m

1x 12,50 x 25,60 m

1x 12,50 x 30,60 m

Tank capacities

Ballast: 15.938,4 m³

Lifting equipment

1x Crane - SWL 4,0 t

3x Cranes - SWL 12,5 t each

Cargo gear

Gearless

Manager

J.P. Samartzis Maritime Enterprises Co. S.A.

Leof. Andrea Siggrou 128

Athens 117 45

Greece

Registered owner

Samco Shipping S.A.

Athens

Greece

Scrapped as

14/12/16 JPS DEBUSSY-I at Gadani - Pakistan

Latest data adjustment

13 May 2023
