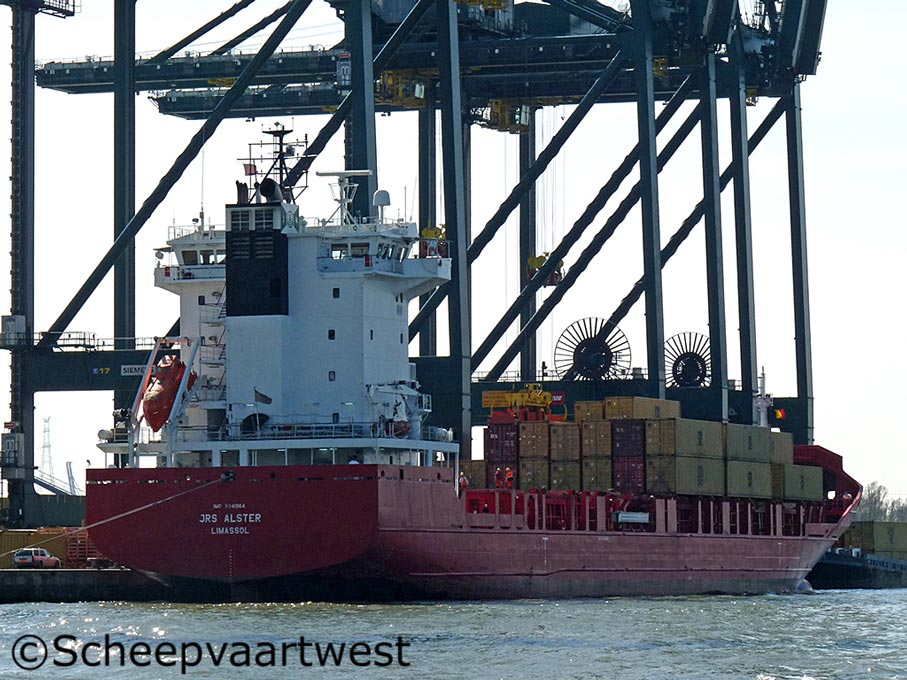

JRS Alster 01
Antwerpen 06 April 2010



Name

JRS ALSTER

Previous names

JRS Castor

Lómur

JRS Castor

Type

Containership

IMO-number

9341964

Call sign

C4YE2

Flag

Cyprus

Port of registry

Limassol

GT

7.545 t

DWT

8.146 t

NT

3.165 t

Number of 20 ft containers

698

Container capacity 14t

436

Reefer capacity

120

Length

129,56 m overall

121,24 m registered

Breadth

20,60 m registered

Draught

7,40 m

Freeboard

3.411 mm

Depth

10,80 m moulded

Speed

Service: 16,5 knots

Max.: 17,5 knots

Built

2007

Keel laid

29.12.2004

Launch date

16.07.2007

Date of completion

13.09.2007

Builder

Fujian Mawei Shipbuilding Ltd.
3, Chuan Zheng Road Mawei District
350015 Fuzhou
People's Republic of China

Yard number

VMW437-23

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAK 8M43C - 4 stroke 8 cylinder 430 x 610 mm diesel engine - 7.200 kW at 500 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

Controllable pitch propeller - aft at 149 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 35,8 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 137,4 m²

Year of manufacture: 2007

Manufacturer: PWT Prozesswärmeträgertechnik GmbH
Max-Weber-Str. 10
25451 Quickborn
Federal Republic of Germany

Electric installations

1x Plant 450/230 V - 563 kVA

1x Plant 450/230 V - 563 kVA

1x Plant 450/230 V - 563 kVA

1x Plant 450 V - 1.250 kVA

1x Plant 450 V - 181 kVA

1x Plant 24 V - 56 Ah

1x Plant 24 V - 143 Ah

1x Plant 24 V - 200 Ah

Shaft generator

1x 1.250 kVA / 1.000 kW

Generators

3x Main diesel generatorsets each 563 kVA

Emergency generator

1x Diesel generatorset 181 kVA

Batteries

2x Batteries for automation each 200 Ah

2x Batteries for UPS radio each 143 Ah

2x Batteries for start emergency engine each 56 Ah

Compressed air receivers

2x Receivers, each 1.000 litres - 30,0 bar

1x Receiver 20 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 600 kW, forward

Anchor equipment

3x Anchors weight each 4.590 kg
Chain length: 550,00 m

Cargo gear

Gearless

Crew size

17

Manager

WMS Shipmanagement GmbH & Co. KG
Zippelhaus 3
20457 Hamburg
Federal Republic of Germany

Owner

Agilitas Reederei GmbH & Co. KG
Königstr. 34
26789 Leer
Federal Republic of Germany
