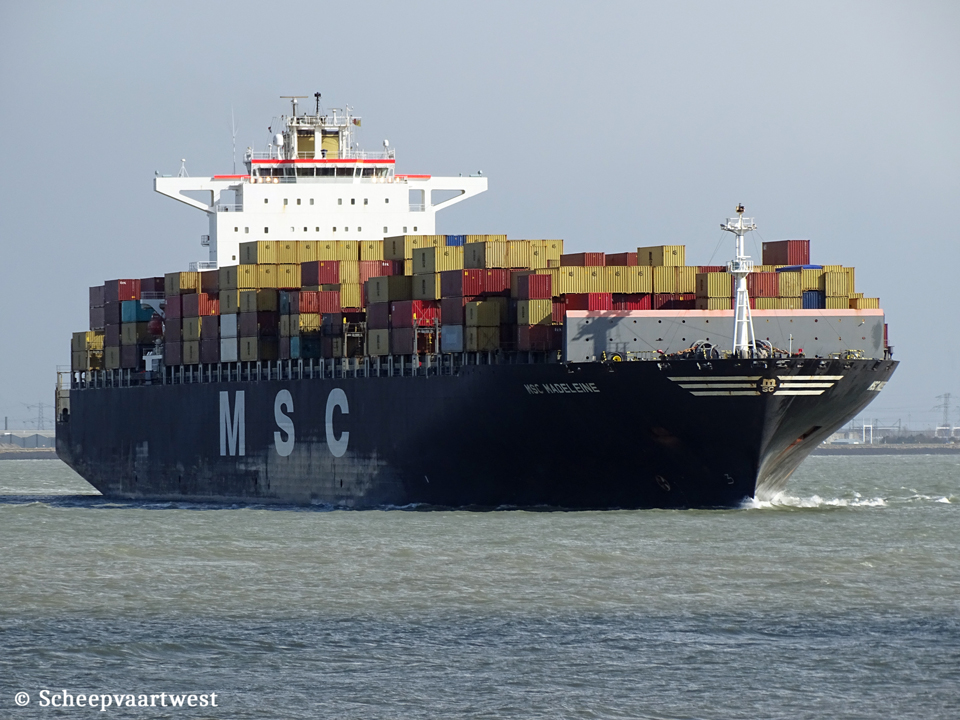

MSC Madeleine IMO 9305702 01
Westerschelde 12 March 2020


Name

MSC MADELEINE

Previous names

2006 - 2006 Ambika

Type

Cellular containership

IMO-number

9305702

Call sign

3EFR7

Flag

Republic of Panama

Port of registry

Panama City

GT

107.551 t

DWT

Summer: 114.732,6 t

NT

59.850 t

Number of 20ft containers

9.113

Container capacity 14t

6.880

Reefer capacity

700

Length

348,51 m overall

333,44 m between perpendiculars

Breadth

42,80 m extreme

Draught

Summer: 15,50 m

Keel to mast end

64,50 m

Depth

20,14 m

Speed

Max: 25,6 knots

Built

2006

Keel laid

13/12/2005

Launch date

10/03/2006

Date of completion

04/05/2006

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

H1680

Hull material

Steel

Main engine

1x MAN-B&W 12 K98MC - 2 stroke 12 cylinder combustion engine 68.639 kW / 93.360 hp at 94,0 rpm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated

Heating surface: 871 m³

1x Auxiliary boiler, oil/gas fired

Heating surface: 66 m²

Generators

4x MAN-B&W 7 L32/40 main diesel generatorsets each 2.986 kW

Emergency generator

1x Scania DC 12/41AO1E diesel generatorset 300 kW

Bow thruster

1x 2.500 kW

Number of holds

10

Tank capacities

Ballast: 28.980,9 m³

Anchor equipment

Length: 770,00 m

Diameter: 111 mm

Cargo gear

Gearless

Commercial manager

MSC Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

ISM manager

Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa 29

80063 Piano di Sorrento NA

Italy

Registered owner

Compania Naviera Madeleine S.A.

Care of MSC Mediterranean Shipping Co., SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

07 August 2023
