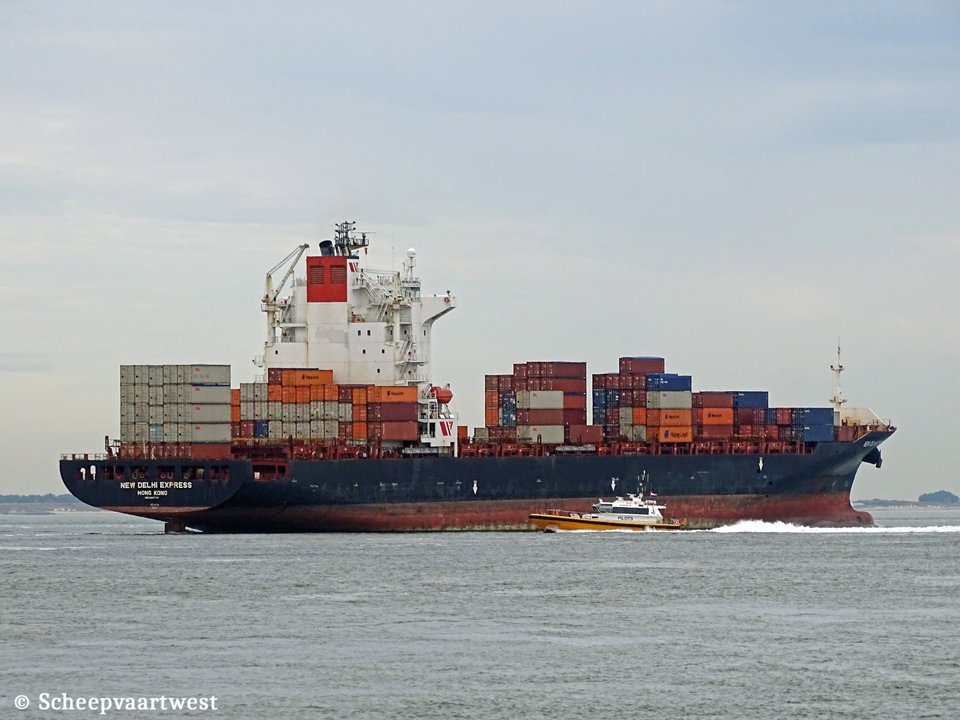

New Delhi Express IMO 9301770 02
Westerschelde 16 May 2017

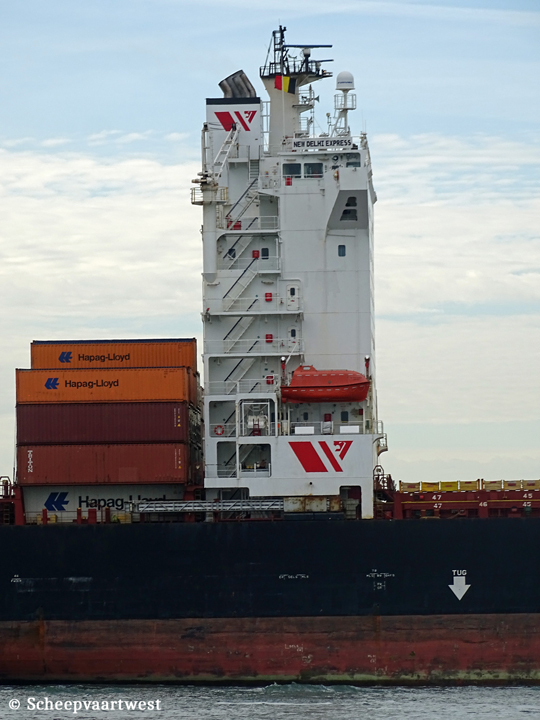

New Delhi Express IMO 9301770 01
West 16/05/17


Name

NEW DELHI EXPRESS

Previous names

2005- 2006 CP Kanha

Type

Cellular containership - Carriage of Dangerous Goods - Refrigerated Cargo

IMO-number

9301770

Call sign

VRBK5

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

39.941 t

DWT

50.869 t

NT

24.458 t

Displacement

67.271 t

Number of 20ft containers

4.250

Container capacity 14t

2.805

Reefer capacity

400

Length

260,04 m overall

245,15 m between perpendiculars

Breadth

32,25 m moulded

Draught

Summer: 12,72 m

Freeboard

6.750 mm

Depth

19,30 m moulded

Speed

Max: 24,5 knots

Built

2005

Keel laid

25/05/2005

Date of completion

18/10/2005

Builder

Samsung Shipbuilding & Heavy Industries Co. Ltd.

80 Jangpyeong 3-Ro

Geoje-Si,Gyeongsangnam-Do, 53261

South Korea

Yard number

1539

Hull material

Steel

Main engine

1x MAN-B&W/Hyundai 8K90MC-C - 8 cylinder 900 x 2.300 mm combustion engine Mcr 36.560 kW / 49.707 hp at 104,0 rpm

Propellers

1

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

1x Auxiliary composite boiler - 10,0 MPa

Manufacturer: Kangrim Industries Co,. Ltd - South Korea

Generators

4x MAN-B&W 6L27/38 main diesel generatorsets each 1.800 kW

Manufacturer: Nishishiba Electric Co.

Bow thruster

1x 1.600 kW

Tank capacities

Fuel oil: 6.406,80 m³

Diesel oil: 262,50 m³

Lub oil: 351,90 m³

Ballast: 11.652,50 m³

Fresh water: 681,0 m³

Lifting equipment

1x Engine room crane - SWL 10,0 t

1x Provision crane port - SWL 10,0 t

1x Provision crane Stbd - SWL 4,0 t

Manufacturer: Oriental Precision Engineering

Cargo gear

Gearless

Crew

22

Manager

Hapag Lloyd

Hamburg

Germany

Owner

Seaspan Ship Management Ltd.

2600-200 Granville Street

Vancouver, BC V6C lS4

Canada

Renamed

2017 Seaspan New Dalhi

Hong Kong - China - Call sign: VRBK5

Owner: Bankcomm Jinsi Tianjin Ship Chartering Co. Ltd.

Manager: Seaspan Ship Management Ltd.

Latest data adjustment

31 August 2023
