Neuenfelde 02

Westerschelde 06 April 2012

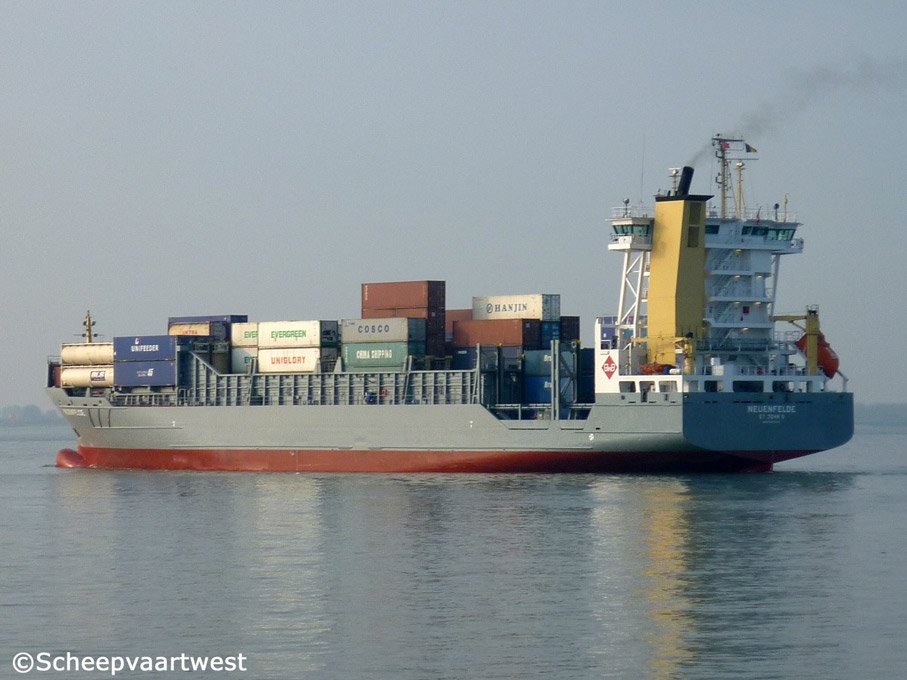

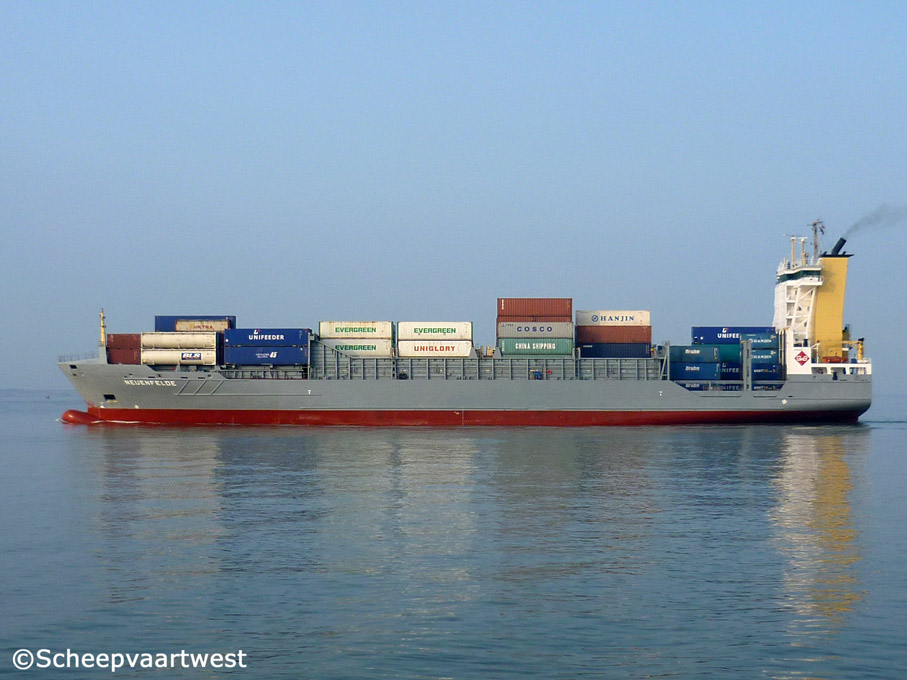

Neuenfelde 05   Neuenfelde 07
Westerschelde 06/04/12 Westerschelde 06/04/12



Name

NEUENFELDE

Previous names

2001 - 11.2011 OOCL Neva

Type

Cellular containership

IMO-number

9231846

Call sign

V2DO9

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

9.981 t

DWT

Summer: 11.390 t

NT

6.006 t

Number of 20ft containers

868

Length

134,42 m overall

124,40 m between perpendiculars

125,08 m registered

Breadth

22,50m registered

Draught

8,70 m

Poop

9,45 m

Depth

11,30 m

Speed

18,0 knots

Built

2001

Keel laid

23.06.2000

Launch date

11.05.2001

Date of completion

06.2006

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1191

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x Mak -M43 - 4 stroke 9 cylinder 430 x 610 mm diesel engine - 8.400 kW at 500 rpm

Reduction power: 7.950 kW

Year of manufacture: 2001

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 130,0 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 52,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 208,0 m²

Year of manufacture: 2000

Manufacturer: PWT Prozesswärmeträgertechnik GmbH
Max-Weber-Str. 10
25451 Quickborn
Federal Republic of Germany

Electric installations

2x Plants each 380/220 V - 380 kVA

1x Plant 380 V - 1.625 kVA

1x Plant 380 V - 290 kVA

Shaft generator

1x 1.625 kVA

Generators

2x Main diesel generatorsets each 380 kVA

Emergency generator

1x Diesel generatorset 290 kVA

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar

Bow thruster

1x Transverse thruster BRUNVOLL - 750 kW, forward

1x Transverse thruster BRUNVOLL - 450 kW, aft

Tank capacities

Fuel oil: 920 m³

Water ballast: 4.033 m³

Anchor equipment

3x Anchors weight each 5.250 kg

Chain Length: 577,50 m

Manager

Reederei Bartels GmbH & Co. KG
Am Bahnhof 7
21376 Gödenstorf
Federal Republic of Germany

Registered owner

MS "NEUENFELDE" Schiffahrts GmbH & Co. KG
Am Bahnhof 7
21376 Gödenstorf
Federal Republic of Germany

Latest data adjustment

29 July 2015
