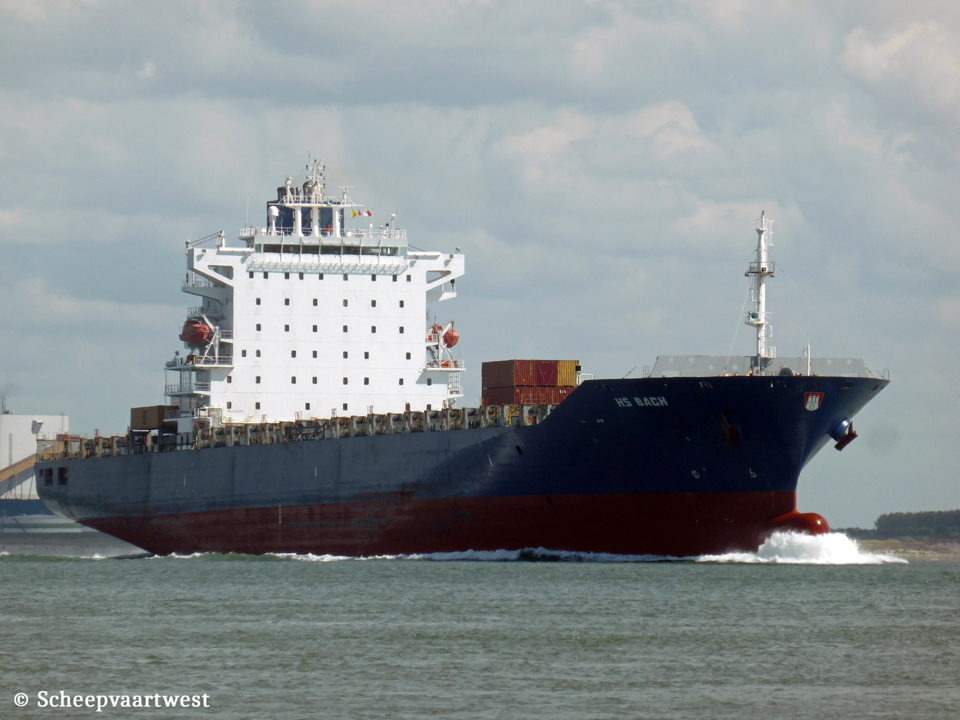

HS Bach IMO 9323015 01
Westerschelde 16 August 2015


Name

HS BACH

Type

Cellular containership

IMO-number

9323015

Call sign

A8ND8

Flag

Liberia

Port of registry

Monrovia

GT

38.320 t

DWT

46.318 t

NT

21.924 t

Number of 20ft containers

On deck: 2.153

In hold: 1.433

Total: 3.586

Container capacity 14t

2.501

Reefer capacity

500

Length

246,86 m overall

232,31 m between perpendiculars

Breadth

32,20 m moulded

Draught

Summer: 12,30 m

Forecastle

19,20 m

Deckhouse

12,80 m

Bridge

108,83 m

Freeboard

4.167 mm

Depth

19,30 m moulded

Speed

Max: 23,4 knots

Built

2007

Builder

STX Offshore & Shipbuilding Co., Ltd.

100, Wonpo-dong Jinhae-gu

Changwon-si

Republic of Korea

Yard number

1213

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Watertight bulkheads

8

Number of decks

2

Upper deck & 2nd deck

Main engine

1x STX/MAN-B&W 9K80MC-C - 2 stroke 9 cylinder 800 x 2.300 mm combustion engine 32.490 kW / 44.174 hp at 104,0 rpm

Manufacturer: STX Engine Co., Ltd.

36, Gongdanro474-gil Sungsan-gu

Changwon

Republic of Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 8,83 bar

Heating surface: 36,1 m²

1x Steam boiler, exhaust gas heated - 8,83 bar

Heating surface: 650,6 m²

Year of manufacture: 2007

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)

40, Wongnam-dong

Changwon

Republic of Korea

Electric installations

4x Plants each 450 V - 2.250 kVA

1x Plant 450 V - 225 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

Generators

4x MAN-B&W 9L28/32H main diesel generatorsets each 1.800 kW - 2.250 kVA - 450 Volt

Emergency generator

1x Diesel generatorset 180 kW / 225 kVA

Batteries

1x Battery for UPS navigation 200 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 9.000 litres - 30,0 bar

1x Receiver 350 litres - 30,0 bar

1x Receiver 1.500 litres - 7,0 bar

1x Receiver 140 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.400 kW, forward

Number of holds

7

Cargo hold capacity

Bale:

No.1 cargo hold: 1.088,0 m³

No.3 cargo hold: 12.188,1 m³

No.4 cargo hold: 14.276,8 m³

No.5 cargo hold: 14.651,6 m³

No.6 cargo hold: 14.149,1 m³

No.7 cargo hold: 7.401,1 m³

Total: 70.962,9 m³

Number of hatches

7

4x 25,20 × 28,20 m

1x 24,96 × 28,20 m

2x 12,60 × 7,84 m

Tank capacities

Ballast: 13.248 m³

Anchor equipment

3x Anchors weight each 11.100 kg

Chain length: 687,50 m

Lifting equipment

1x Engine room overhead crane - SWL 1,8 t

1x Provision crane - SWL 2,8 t each

Cargo gear

Gearless

Crew size

26

Manager

Hansa Shipping GmbH & Co., KG

An der Alster 9

20099 Hamburg

Federal Republic of Germany

Renamed

2017 Heng Hui 5

China - Call sign: BVNI5

Owner & manager: Shishi Hengtong Shipping Co., Ltd. - China

Latest data adjustment

06 September 2023
