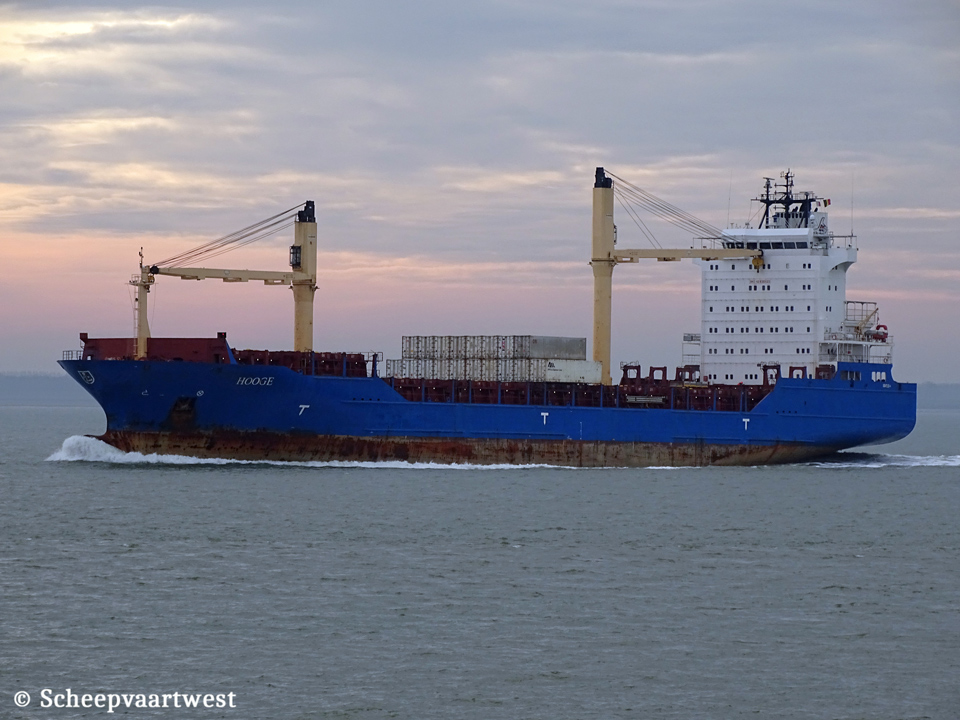

Hooge IMO 9301122 07

Westerschelde 29 December 2019

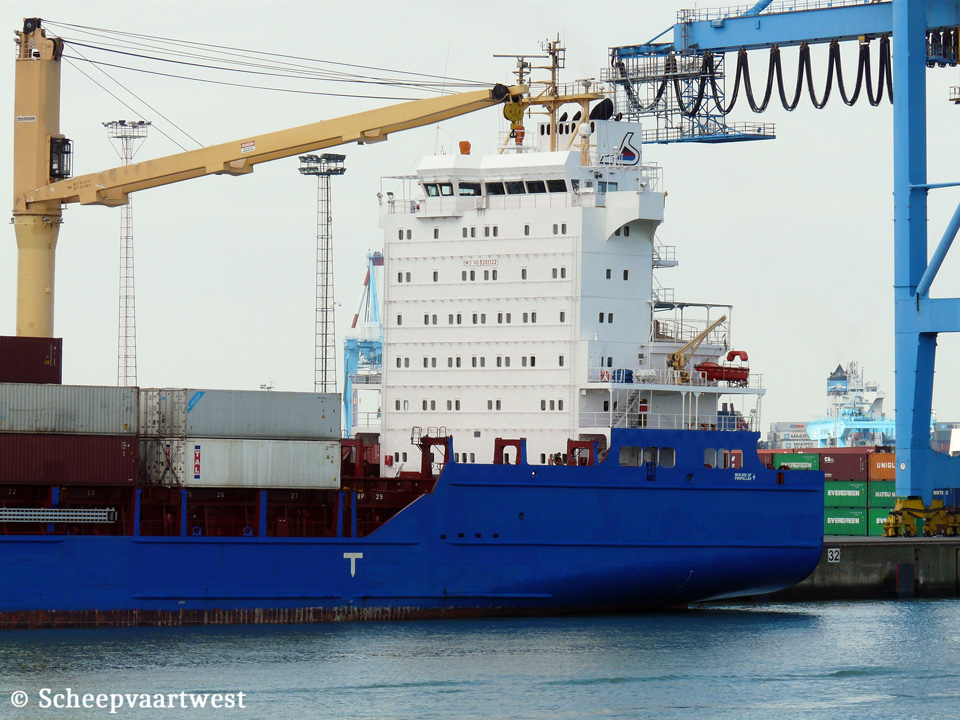

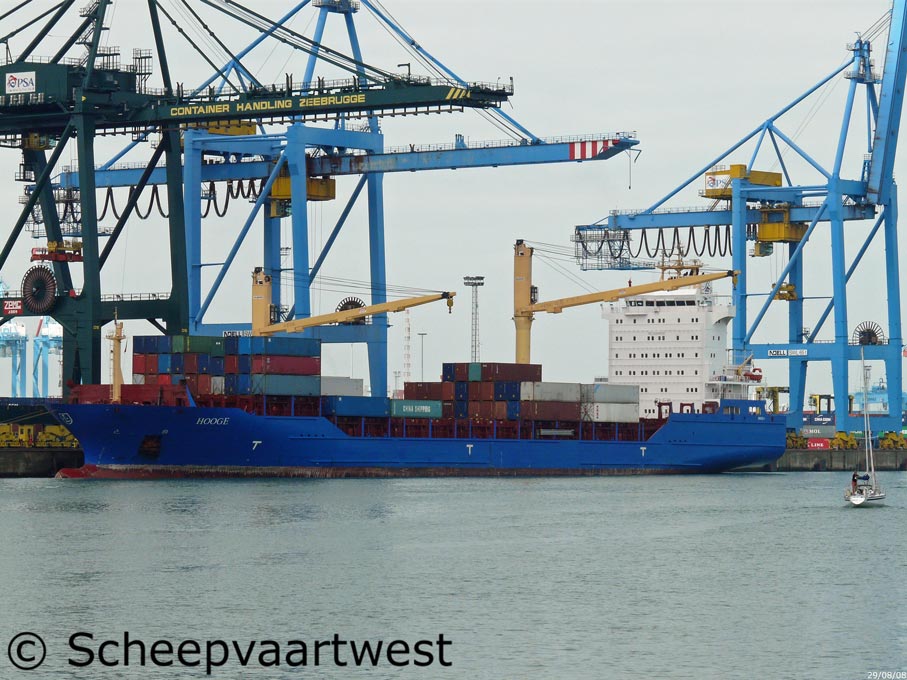

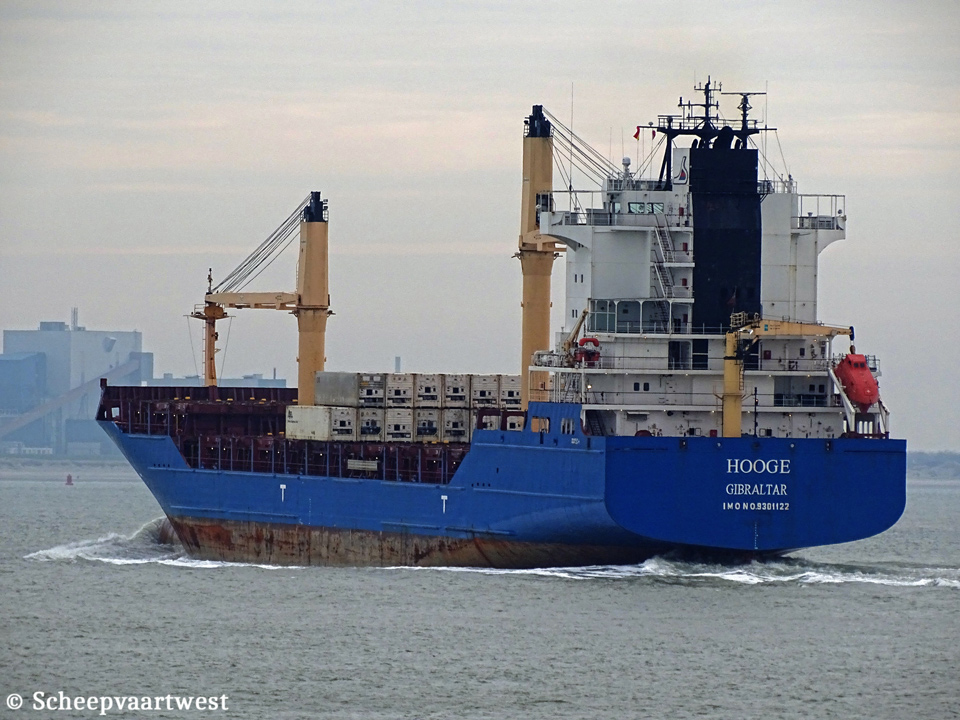

Hooge IMO 9301122 08   Hooge 01   Hooge IMO 9301122 05
Westerschelde 29/12/19 Zeebrugge 29/08/08 Zeebrugge 29/08/08









Name

HOOGE

Type

Cellular Containership

IMO-number

9301122

Call sign

ZDHM4

Flag

Gibraltar

Port of registry

Gibraltar

GT

15.633 t

DWT

16.986 t

NT

6.717 t

Number of 20ft containers

In hold: 492

On deck: 910

Total: 1.402

Number of 40ft containers

In hold: 230 + 42 TEU

On deck: 409 + 64 TEU

Total: 639 + 106 TEU

Container capacity 14TH

870

Reefer points

In hold: 120

On deck: 130

Total: 250

440 Volt - 60 Hz - 3 phase

Length

160,82 m overall

157,00 m between perpendiculars

151,35 m registered

Breadth

25,00 m overall

Draught

Summer: 9,90 m

Forecastle

23,91 m

Poop

24,46 m

Freeboard

4.015 mm

Depth

13,90 m moulded

Speed

19,5 knots

Built

2006

Keel laid

16/12/2004

Launch date

19/11/2005

Date of completion

17/07/2006

Builder

Shandong Province Weihai Shipyard

95 Haibin Road (N)

264200 Weihai , Shandong

People's Republic of China

Yard number

CZ044

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW

Year of manufacture: 2005

Manufacturer: Hudong Heavy Machinery Co., Ltd.

2851, Pudong Dadao

200129 Shanghai

People's Republic of China

Number of screws

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 19,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 349,0 m²

Year of manufacture: 2005

Manufacturer: Aalborg Industries Ltd.

86 Guangzhou Road North Jiaozhou

266300 Qingdao , Shandong

People's Republic of China

Electric installations

1x 450/230 V - 3.600 kVA

1x 450 V - 375 kVA

1x 24 V - 1.140 Ah

Generators

3x Main diesel generatorsets each 1.200 kVA / 960 kW

Emergency generator

1x Diesel generatorset 375 kVA / 300 kW

Batteries

2x Batteries for emergency lighting each 195 Ah

2x Batteries for UPS radio each 195 Ah

2x Batteries for start emergency engine each 180 Ah

Compressed air receivers

1x Receiver 320 litres - 33,0 bar

2x Receivers each 6.000 litres - 32,0 bar

1x Receiver 320 litres - 12,0 bar

Bow thruster

1x Transverse thruster - 800 kW, forward

Number of holds

4x Holds divided in 8 compartments

Hold 1: abt. 24,15 x 15,70 x 17,20 m, narrowing

Hold 2 - 6: 12,48 x 20,70 x 14,30 m

Hold 7: 6,24 x 20,70 x 14,30 m

Number of hatches

8x hatches with 14 hatchcovers

Hatch 1 - 2: abt. 6,24 x 15,70 m

Hatches 2 - 7: abt. 6,24 x 20,70 m

Tank capacities

Fuel oil IFO: 1.600 m³

MDO: 150 m³

Ballast: 8.053 m³

Fresh water: 272,6 m³

Lifting equipment

2x Mac Gregor single deck container cranes - SWL 45,0 / 40,0 t

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Diameter: 64 mm

Crew

19

Manager

Briese Dry Cargo GmbH & Co. KG

Hafenstr. 12

26789 Leer

Federal Republic of Germany

Owner

Briese Schiffahrts GmbH & Co. KG MS "HOOGE"

Hafenstr. 12

26789 Leer

Federal Republic of Germany

Latest data adjustment

20 March 2021
