| Westerschelde 02 Mach 2017 |
|
Name |

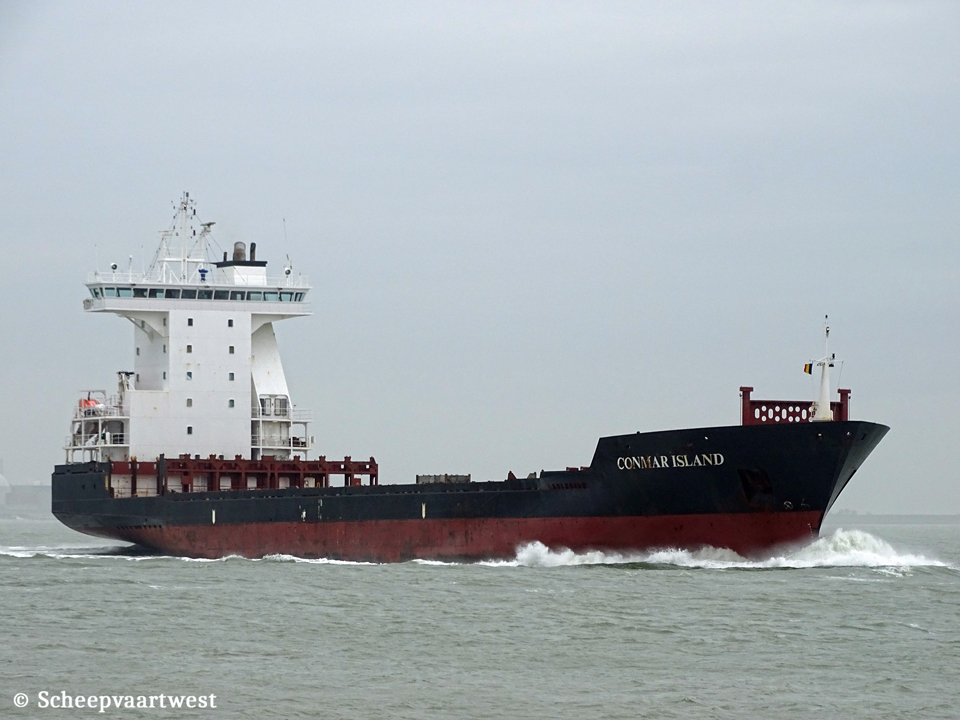

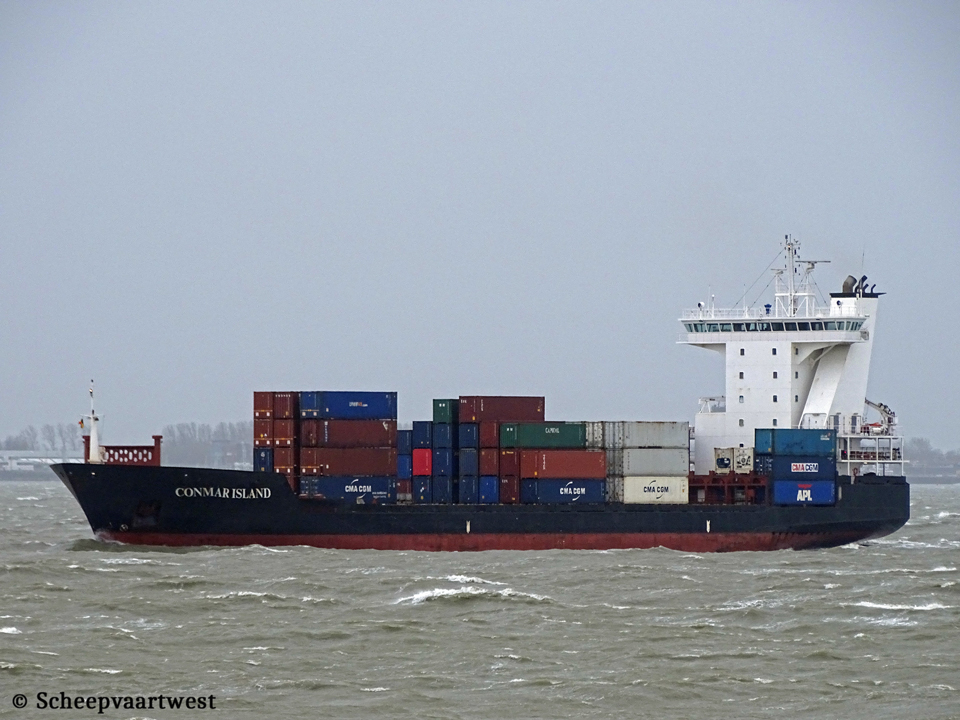

CONMAR ISLAND |
|
Previous names |
05/2008 - 10/2008 WEC Dali 10/2008 - 12/2012 Euro Discovery |
|
Type |
Containership - Small feeder |
|
IMO-number |
9360996 |
|
Call sign |
5BUK3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2008 - 2012 United Kingdom - Call sign: 2AWI2 |
|
GT |
8.032 t |
|
DWT |
10.316 t |
|
NT |
3.615 t |
|
Number of 20ft containers |
On deck: 666 In hold: 239 Total: 905 |
|
Container capacity 14t |
580 |
|
Reefer capacity |
200 |
|
Length |
138,15 m overall 129,80 m between perpendiculars |
|
Breadth |
21,70 m |
|
Draught |
7,75 m |
|
Freeboard |
1.413 mm |
|
Depth |
9,15 m |
|
Speed |
Service: 17,5 knots |
|
Build |
2008 |
|
Date of completion |
05/2008 |
|
Builder |
Peters Schiffbau GmbH + Wewelsfleth Yard Germany |
|
Yard number |
677 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine Mcr: 9.000 kW / 12.228 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 137,0 rpm |
|
Boilers |
1x CHR 190,00 m² - 10,0 bar 1x CHO 48,00 m² - 10,0 bar |
|
Shaft generator |
1x 2.400 kW / 400 Volt |
|
Generators |
2x Main diesel generatorsets each 790 kVA - 632 kW - 914 hp / 400 Volt |
|
Emergency generator |
1x Diesel generatorset 500 kVA - 400 kW - 417 hp |
|
Bow thruster |
1x Tunnel thruster 800 kW / 1.088 bhp, forward |
|
Number of holds |
4 |
|
Cargo hold capacity |
18.588 m³ |
|
Tank capacities |
Fuel: 525,8 m³ Ballast: 4.085 m³ |
|
Crew size |
12 |
|
Manager |
Conmar Shipping GmbH & co., KG Jork Germany |
|
Registered owner |
Conmar Island Sg Co Ltd. Limassol Cyprus |
|
Previous names & owners |
2008 - 2008 WEC Dali Owner: Reederei ms "Euro Discovery" GmbH & Co KG 2008 - 2012 Euro Discovery Owner: Reederei ms "Euro Discovery" GmbH & Co KG |
|
Renamed |
2017 Steen 06/2017 - 05/2023 Cyprus, Limassol - Call sign: 5BUK3 05/2023 Portugal, Madeira - Call sign: CQ2045 Owner: Steen Jens Und Waller GmbH, Drochtersen - Germany Manager: Jens & Waller Reederei GmbH, Drochtersen - Germany |
|
Latest data adjustment |
02 November 2024 |
