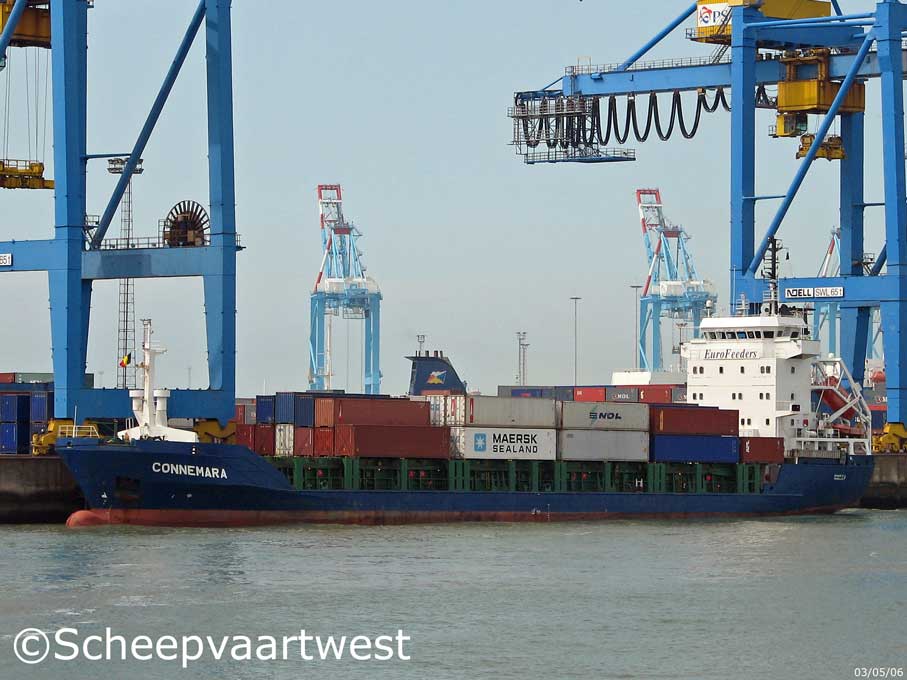

Connemare
Zeebrugge 06 May 2006



Name

CONNEMARE

Type

Multi-purpose containership

IMO-number

9118288

Call sign

EISN

Flag

Ireland

Previous flag

28.02.1998 Cyprus

Port of registry

Cork

GT

4.107 t

GRT

4.128 t

DWT

Summer: 5.184 t

NT

2.016 t

Number of 20ft Containers

374

Length

100,54 m overall
94,20 m between perpendiculars
95,30 m registered

Breadth

16,20 m over all

Draught

Summer: 6,39 m

Forecastle

7,56 m

Poop

11,37 m

Freeboard

1.810 mm

Depth

8,20 m moulded

Speed

14,5 knots

Line

Eurofeeders

Built

1998

Keel laid

10.04.1996

Launch date

02.04.1997

Completion

01.1998

Builder

Tianjin Shipbuilding Corp. Xinhe Shipyard
8, Xinhu Road
Tanggu 300450, Tianjin Province
People's Republic of China

Yard number

301

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x MAK 9 M 32 - 4 stroke single acting 9 cylinder 320 x 480 mm diesel engine - 3.960 kW / 5.380 bhp

Year of manufacture: 1996

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft

Boiler

1x Water heater, oil fired - 5,0 bar
Heating surface: 15,0 m²
Year of manufacture: 1996

Electric installations

1x 380/220 V - 850 kVA

1x 380 V - 550 kVA

1x 380 V - 126 kVA

Shaft generator

1x 550 kVA

Generators

2x Main diesel generatorsets each 425 kVA

Emergency generator

1x Diesel generatorset 126 kVA

Compressed air receivers

1x Receiver 500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 350 kW, forward

Cargo capacity

Grain/Bale: 7.235 m³ / 255.500 ft³

Tank capacities

Ballast: 1.758 m³

Bunker: 315 t

Fuel oil: 351 m³

Anchor equipment

3x Anchors weight each 3.060 kg

Chain length: 495,00 m

Crew size

16

Manager

KG Fisser & v. Doornum GmbH & Co.
Bernhard Nocht Str. 113
20359 Hamburg
Federal Republic of Germany

Operator

Emerald Isle Group

Owner

Emerald Isle Group
No. 2 Harbour Hill
Cork
Ireland

Renamed

15.10.07 MSC Bahamas
