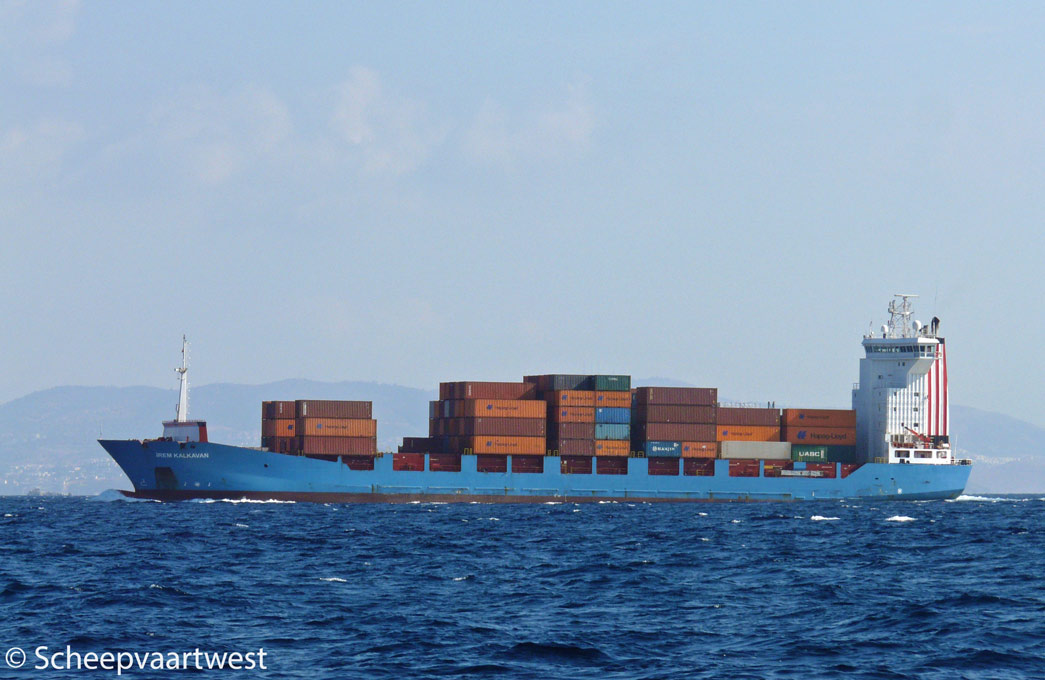

Irem Kalkavan 01
Aegean Sea - September 27 September 2013



Name

IREM KALKAVAN

Type

Containership

IMO-number

9322865

Call sign

V7JT5

Previous call sign

TCON6

Flag

Republic of Marshall Islands

Previous flag

27.02.2006 - 30.03.2006 Republic of Turkey

Port of registry

Majuro

Previous port of registry

27.02.2006 - 30.03.2006 Istanbul

GT

10.308 t registered

Suez: 9.9947,62 t

DWT

Summer: 12.545 t

NT

5.070 t registered

Suez: 7.581,47 t

Number of 20ft containers

1.145

Reefer capacity

250

Length

148,53 m overall

136,80 between perpendiculars

Breadth

22,70 m moulded

Draught

Max.: 7,80 m

Freeboard

3.517 mm

Depth

11,30 m moulded

Speed

19,3 knots

Built

2006

Keel laid

26.04.2005

Launch date

02.01.2006

Date of delivery

27.02.2006

Builder

Sedef Shipbuilding Industry Inc.,
Tuzla
Turkey

Yard number

136

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

10

Main engine

1x MAN B&W 7S50MC-C - 7 cylinder 500 x 2.000 mm diesel engine - 10.500 kW at 127,0 rpm

Manufacturer: MAN B&W Alpha Diesel A/S

Propellers

1x Bronze propeller

Manufacturer: Alstom Power - Poland

Shaft generator

1x DSG86L1-4 - 1.800 kW

Generators

3x DSG74M1-6 - diesel generatorsets each 570 kW

Manufacturer: Newage AVK Romania

Number of tanks

Ballast: 17

Fuel Oil: 10

Lubricating Oil: 7

Waste Water: 5

Diesel Oil: 3

Thermal Oil: 3

Hydraulic Oil: 3

Fresh Water: 2

Sludge: 2

Chain: 1

Tank capacities 100%

Diesel Oil: 91.24 m³ / 82,116 t

Freshwater: 116.64 m³

Fuel Oil: 1.258,56 m³ / 1.233,39 t

Hydraulic Oil: 14,24 m³

Lube Oil: 123,37 m³ / 111,03 t

Tank Ballast: 4.620,36 m³ / 4.735,87 t

Manager

Kalkavan Shipmanagement
Hamburg
Germany

Operator

Ecir Kalkavan Schiffseigentums GmbH & Co., KG
Admiralitaetstrasse 60
D-20459 Hamburg
Germany

Registered owner

Ecir Kalkavan Schiffseigentums GmbH & Co., KG

Last update

30 November 2013
