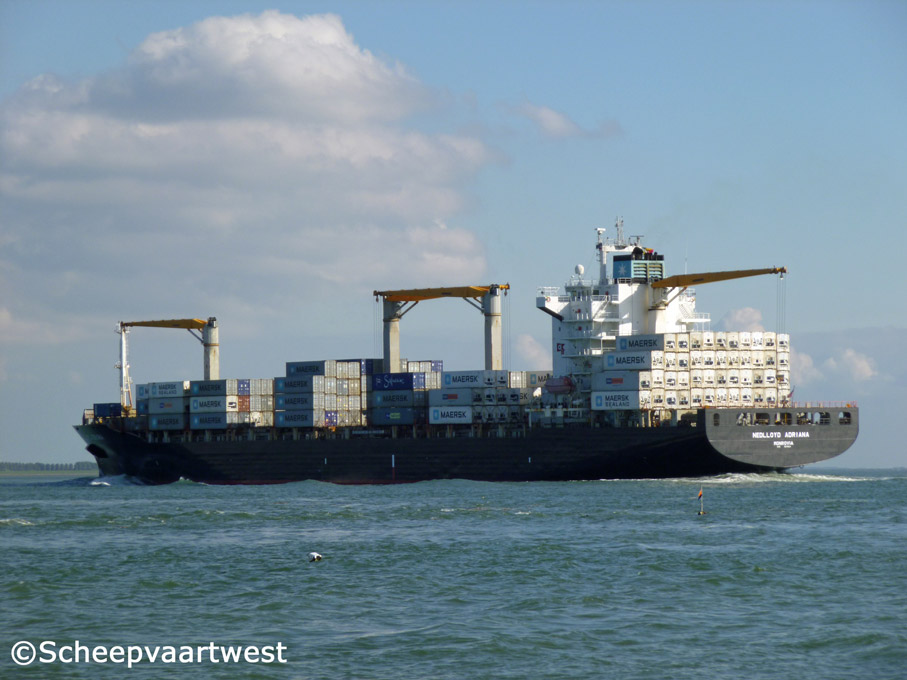

Nedlloyd Adriana 01
Westerschelde 06 October 2013



Name

NEDLLOYD ADRIANA

Previous names

2003 Launch as: Adriana Star

2003 - 12.2005 P&O Nedlloyd Adriana

Type

Cellular containership

IMO-number

9275024

Call sign

A8DG6

Flag

Liberia

Port of registry

Monrovia

GT

26.833 t

DWT

Summer: 34.282 t

NT

12.743 m

Number of 20ft containers

2.556

Container capacity 14t

1.850

Reefer capacity

600

Length

210,07 m overall

200,55 m registered

Breadth

30,20 m registered

Draught

11,50 m

Forecastle

26,45 m

Poop

38,96 m

Freeboard

5.240 mm

Depth

16,70 m moulded

Speed

21,0 knots

Built

2003

Keel laid

27.05.2003

Launch date

16.08.2003

Date of completion

15.10.2003

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Yard number

H1485

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Sulzer 7 RTA 72 U-B - 2 stroke 7 cylinder 720 x 2.500 diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2003

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 99,0 rpm

Boilers

Steam boiler, oil fired - 5,88 bar

Heating surface: 30,0 m²

Steam boiler, exhaust gas heated - 5,88 bar

Heating surface: 304,0 m²

Year of manufacture: 2003

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

4x Plants each 440/220 V - 2.133 kVA

1x Plant 440 V - 188 kVA

2x Plants each 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x  MAN-B&W 8L28/32 main diesel generatorsets each 2.133 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 2.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster 1.000 kW, forward

Tank capacities

Fuel oil: 4.174 m³

Water ballast: 9.457 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Cargo gear

4x Cranes - SWL 40,0 t each

Crew size

28

Manager

Blue Star Holding
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Registered owner

Nautlus Schiffsbetriebs GmbH & Co. MS "NEDLLOYD ADRIANA" KG
Montanhof Kattrepel 2
20095 Hamburg
Federal Republic of Germany

Last data update

25 January 2014
