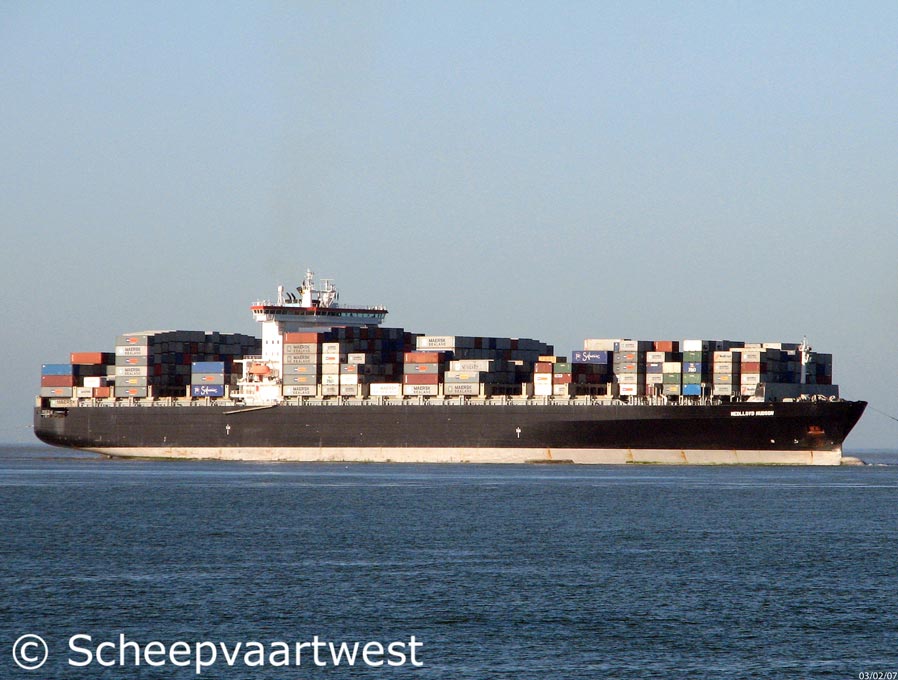

Nedlloyd Hudson 04
Zeebrugge 03 February 2007



Name

NEDLLOYD HUDSON

Previous name

2000-2006 P&O Nedlloyd Hudson

Type

Cellular Containership

IMO-number

9189354

Call sign

MZER8

Flag

United Kingdom

Port of registry

London

GT

66.526 t

DWT

67.515 t

NT

29.460 t

Number of 20ft containers

5.248

Container capacity at 14t

4.624

Reefer capacity

500

Length

277,97 m overall
264,40 m between perpendiculars

265,20 m registered

Breadth

43,46 m overall

40,00 m registered

Draught

Summer: 14,00 m

Forecastle

52,78 m

Bridge

79,17 m

Freeboard

6.180 mm

Depth

24,30 m

Speed

26,0 knots

Built

2000

Keel laid

22.10.1999

Launch date

28.02.2000

Date of completion

05.2000

Builder

Kvaerner Warnow Werft GmbH
Werftallee 10
18119 Rostock
Federal Republic of Germany

Yard number

020

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Sulzer 10 RTA 96 C - 2 Stroke single acting 10 cylinder 960 x 2.500 mm diesel engine - 54.900 kW

Year of manufacture: 1999

Manufacturer: Hyundai Engine & Machinery Co., Ltd.
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 114,1 m²

1x Thermal oil heater, exhaust gas heated - 13,0 bar

Heating surface: 648,0 m²

Year of manufacture: 1999

Manufacturer: Wiesloch Marine & Industries B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

1x 440/220 V - 11.000 kVA

1x 440 V - 3.000 kVA

1x 440 V - 412 kVA

Shaft generator

1x 3.000 kVA / 2.400 kW

Generators

4x MaK 8M25 main diesel generatorsets each - 2.750 kVA / 2.200 kW

Emergency generator

1x Diesel generatorset 412 kVA

Compressed air receivers

2x Receivers each 15.000 litres - 30,0 bar

2x Receivers each 250 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver1.000 litres - 10,0 bar

Bow thruster

1x Fixed pitch propeller LIPS - 2.000 kW, forward

Cargo capacity

Grain 126.120 m³

Tank capacities

Fuel oil: 7.491 m³

Ballast water: 20.862 m³

Anchor Equipment

3x Anchors weight each 17.800 kg

Chain length: 742,50 m

Cargo gear

Gearless

Manager

Maersk Ship Management B.V.
Boompjes 40
3011 XB Rotterdam
Netherlands

Operator

Maersk Line

Owner

Bank of Scotland Structured Asset Finance Ltd.
155 Bishopsgate
London EC2M 3AD
United Kingdom
