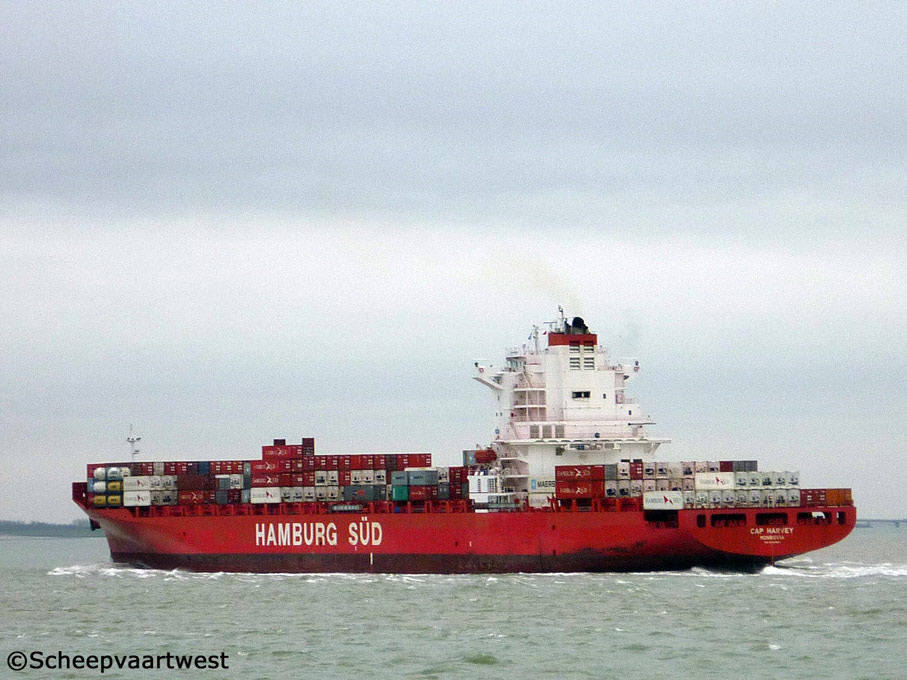

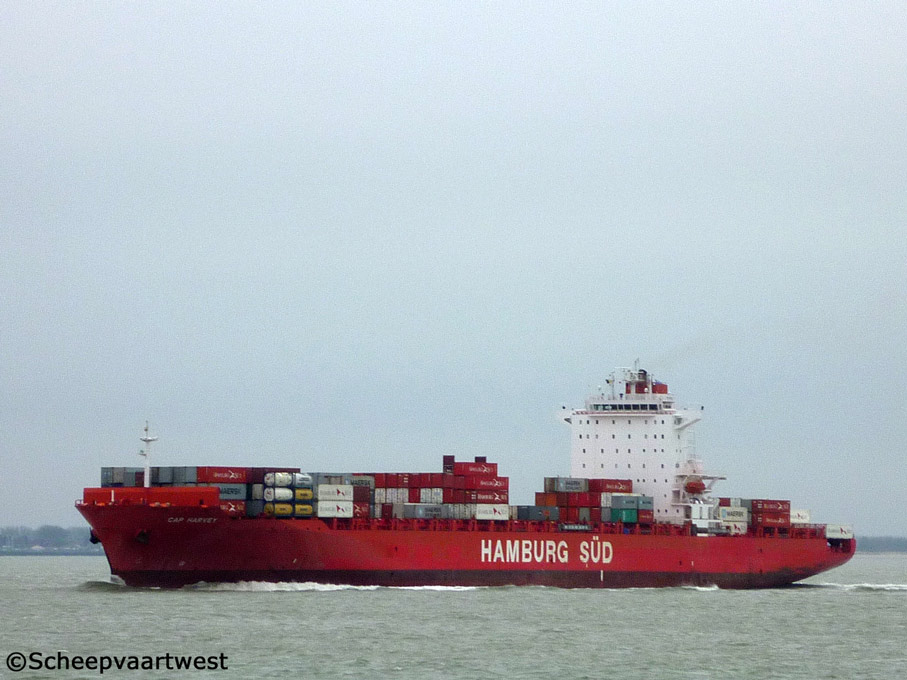

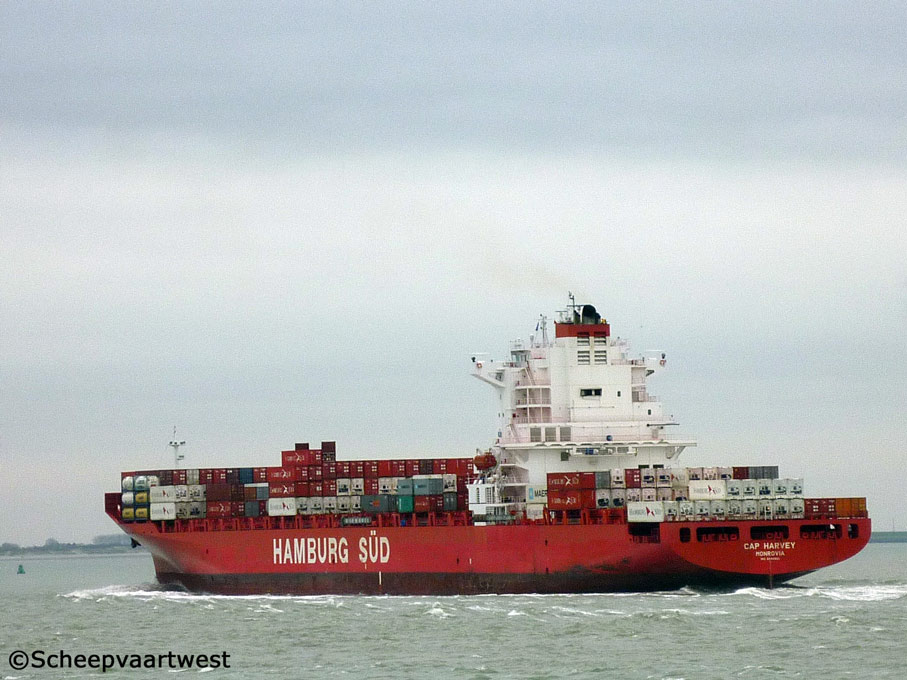

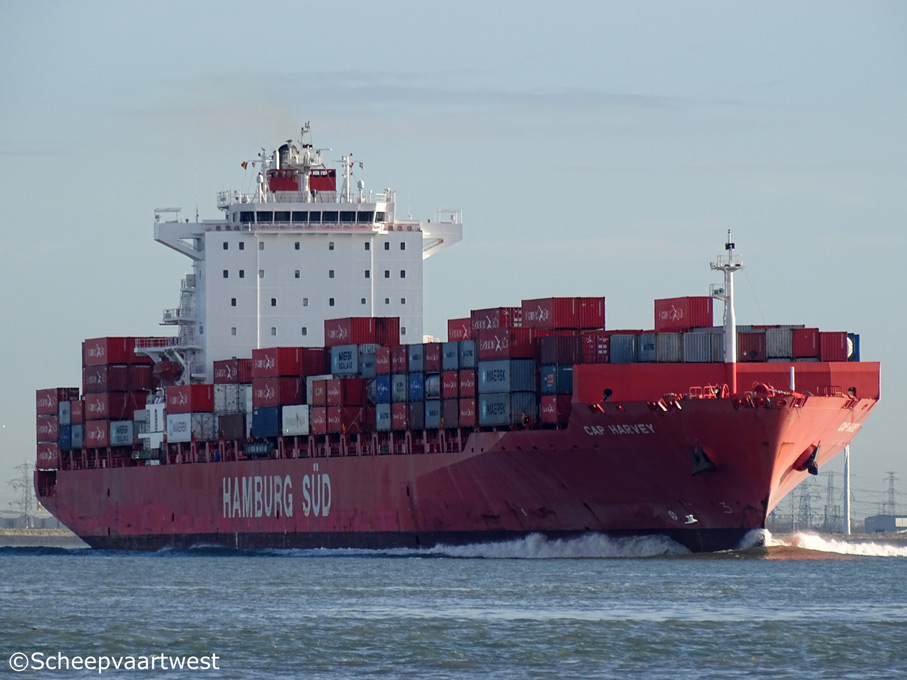

Westerschelde 23 November 2015 |
 |
 |
 |
 |
|||
| Westerschelde 23/11/15 | Westerschelde 25/01/14 | Westerschelde 25/01/14 | Westerschelde 25/01/14 |
|
Name |
CAP HARVEY |
|
Previous names |
CPO Richmond |
|
Type |
Cellular containership |
|
IMO-number |
9440801 |
|
Call sign |
A8VE2 |
|
Flag |
Republic of Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2009 Liberia 2009 - 2010 United Kingdom |
|
GT |
41.358 t |
|
DWT |
Summer: 51.743 t |
|
NT |
24.234 t |
|
Number of 20ft containers |
On deck (7 tiers): 2.689 In hold: 1.566 Total (7 tiers): 4.255 |
|
Container capacity 14t |
3.000 |
|
Reefer capacity |
On deck 40': 372 plugs In hold 40': 188 plugs Total 560 plugs |
|
Length |
262,06 m overall 248,00 m between perpendiculars 249,15m registered |
|
Breadth |
32,20 m registered |
|
Draught |
12,50 m |
|
Freeboard |
4.311 mm |
|
Depth |
19,30 m moulded |
|
Speed |
24,1 knots |
|
Built |
2009 |
|
Keel laid |
29/01/2009 |
|
Launch date |
10/04/2009 |
|
Date of completion |
20/05/2009 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
2061 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai/Wärtsilä 8RTA82C - 2 stroke 8 cylinder combustion engine - 36.160 kW at 102,0 rpm Year of manufacture: 2009 Manufacturer: Hyundai Heavy Industries Co., Ltd. 178, Sejong-ro, Jongro-gu Seoul, Soul-t´ukpyolsi Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired type Mission OS - 9,0 bar Heating Surface: 26,87 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao, 266300 Shandong People's Republic of China 1x Steam boiler, exhaust gas heated type Mission XS-2V - 9,0 bar Heating Surface: 172,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
2x Plants each 450 V - 2.112,5 kVA 2x Plants each 450 V - 2.812,8 kVA 1x Plant 450 V - 187,5 kVA 2x Plants each 12 V - 300 Ah 4x Plants each 24 V - 100 Ah 2x Plants each 24 V - 130 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
2x Hyundai-Himsen 8H25/33 main diesel generatorsets each 2.812,8 kVA / 2.250 kW 2x Hyundai-Himsen 6H25/33 main diesel generatorsets each 2.112,5 kVA / 1.690 kW |
|
Emergency generator |
1x Cummins 6CTA8-3-D(M) diesel generatorset 187,5 kVA |
|
Batteries |
12x Batteries for other purpose each 300 Ah 2x Batteries for start emergency engine each 300 Ah 12x Batteries for UPS radio each 200 Ah 2x Batteries for diesel control each 130 Ah 4x Batteries for automation each 100 Ah |
|
Compressed air receivers |
2x Receivers each 10.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 200 litres - 8,7 bar 1x Receiver 2.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 1.500 kW, forward |
|
Tank capacities |
Heavy fuel oil: 5.200 m³ Marine diesel oil:200 m³ Fresh water: 300 m³ Ballast water: 13.212,7 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Chain length: 705,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Manager |
CPO Containerschiffreederei GmbH & Co. KG |
|
Previous managers |
2009 - 2015 Reederei Claus-Peter Offen (GmbH & Co.) KG , Hamburg - Federal Republic of Germany |
|
Operator |
Hamburg Süd Group |
|
Owner |
Heron Hunter Ltd. |
|
Previous owners owner |
2009 - 2009 Reederei Claus-Peter Offen (GmbH & Co.) KG 2009 - 2009 Kommanditgesellschaft MS "CPO RICHMOND" Offen Reederei GmbH & Co 2009 - 2009 Kommanditgesellschaft MS "CPO BOSTON" Offen Reederei GmbH & Co. 2009 - 2015 Kommanditgesellschaft MS "CPO RICHMOND" Offen Reederei GmbH & Co., Hamburg - Federal Republic of Germany |
|
Renamed |
2018 Heron Hunter Liberia, Monclova - Call sign: A8VE2 Owner: Heron Hunter Ltd. Manager: CPO Containerschiffreederei (GmbH & Co.) KG |
|
Latest data adjustment |
09 November 2019 |
