| Westerschelde 20 December 2015 |
|
Name |

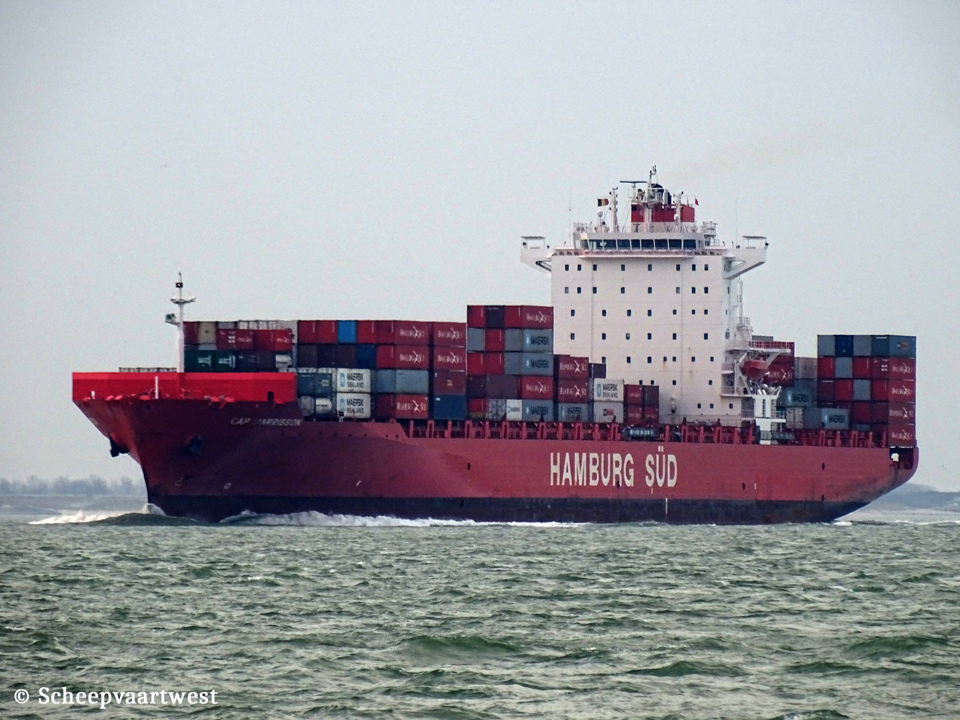

CAP HARRISSON |
|
Previous names |
2009 - 04/2009 CPO Baltimore |
|
Type |
Cellular containership |
|
IMO-number |
9440796 |
|
Call sign |
A8VD9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2010 United Kingdom - Call sign: 2BXL5 |
|
GT |
41.358 t |
|
DWT |
Summer: 51.699 t |
|
NT |
24.234 t |
|
Number of 20ft containers |
4.255 |
|
Number of 40ft containers |
2.720 |
|
Container capacity 14t |
560 |
|
Length |
262,07 m overall 249,15 m registered 247,99 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
Max: 12,50 m |
|
Depth |
19,30 m moulded |
|
Speed |
Max: 24,1 knots |
|
Built |
2009 |
|
Keel laid |
22/12/2008 |
|
Launch date |
06/03/2009 |
|
Date of completion |
24/04/2009 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
2060 |
|
Hull material |
Steel |
|
Hull type |
Double Bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 8RTA82C - 2 stroke 8 cylinder 820 x 2.646 mm combustion engine 36.160 kW / 48.163 hp at 102,0 rpm Build: 2008 Builder: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface 26,87 m² Build: 2008 Builder: Alfa Laval Aalborg A/S 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface 172,0 m² Build: 2008 Builder: Alfa Laval Aalborg A/S |
|
Electric installations |
1x Plant 450 V - 2.112,5 kVA 1x Plant 450 V - 2.112,5 kVA 1x Plant 450 V - 2.812,8 kVA 1x Plant 450 V - 2.812,8 kVA 1x Plant 450 V - 188 kVA 1x Plant 12 V - 300 Ah 1x Plant 24 V - 100 Ah 1x Plant 24 V - 130 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
2x Hyundai/Himsen 6H25/33 main diesel generatorsets each 1.690 kW / 2.112,5 kVA 2x Hyundai/Himsen 8H25/33 main diesel generatorsets each 2.250 kW / 2.812,8 kVA |
|
Emergency generator |
1x Cummins 6CTA8-3-D(M) diesel generatorset 188 kVA |
|
Batteries |
1x Battery for UPS navigation 300 Ah 1x Battery for start emergency engine 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for automation 130 Ah 1x Battery for automation 100 Ah |
|
Compressed air receivers |
2x Receivers each 10.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 200 litres - 8,7 bar 1x Receiver 2.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 1.500 kW, forward |
|
Tank capacities |
Ballast: 13.212,7 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Operator |
Hamburg Süd Hamburg Germany |
|
Owner |
Claus Peter Offen Hamburg Germany |
|
Renamed |
2016 - 01/2021 CPO Baltimore Liberia, Monrovia - Call sign: A8VD9 Registered owner: Kommanditgesellschaft MS "CPO BALTIMORE" Offen Reederei UG (haftungsbeschränkt) & Co. Manager: CPO Containerschiff Reederei GmbH & Co., KG Hamburg Germany 01/2021 Baltimore Star Marshall Islands, Majuro - Call sign: V7A4547 Owner: Tanos Shipping Corporation, Glyfada, 166 74 Athens - Greece ISM manager: V Ships Greece Ltd., 185 45 Piraeus, Greece Commerical manager: Chartworld Maritime management, Glyfada, 166 74 Athens - Greece |
|
Latest data adjustment |
18 Novemer 2023 |
