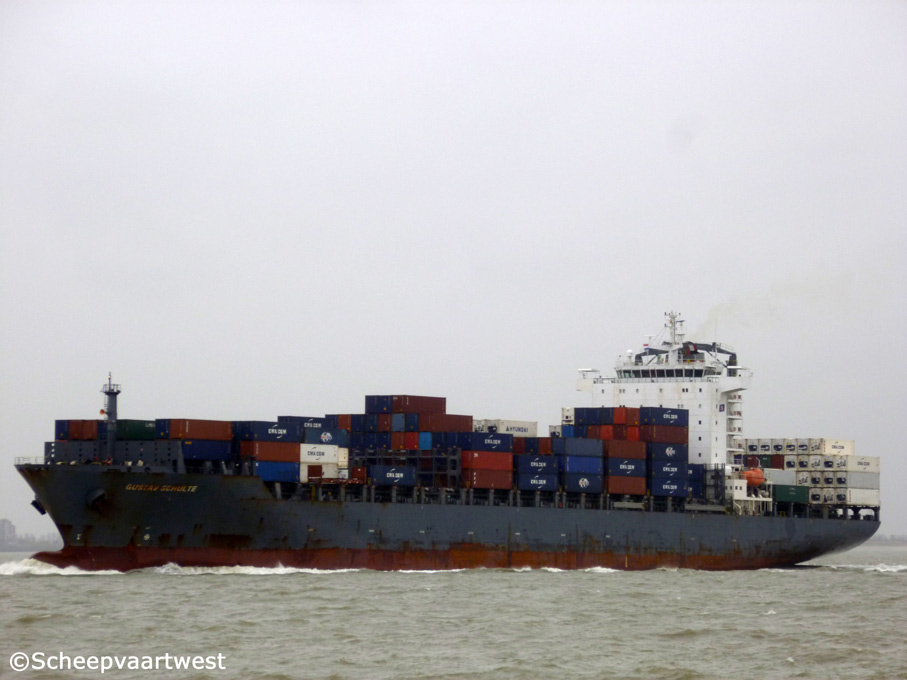

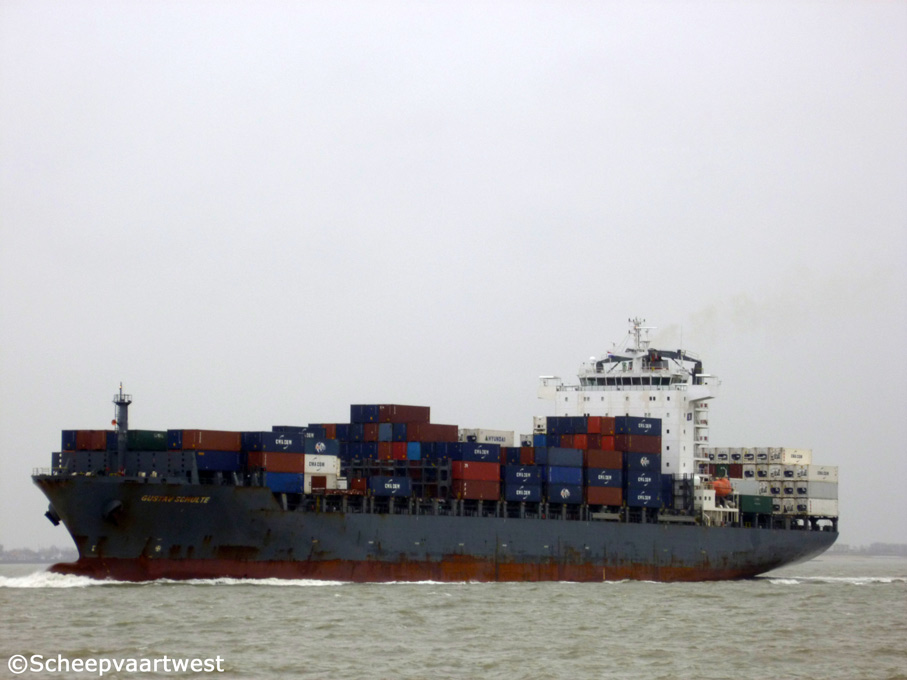

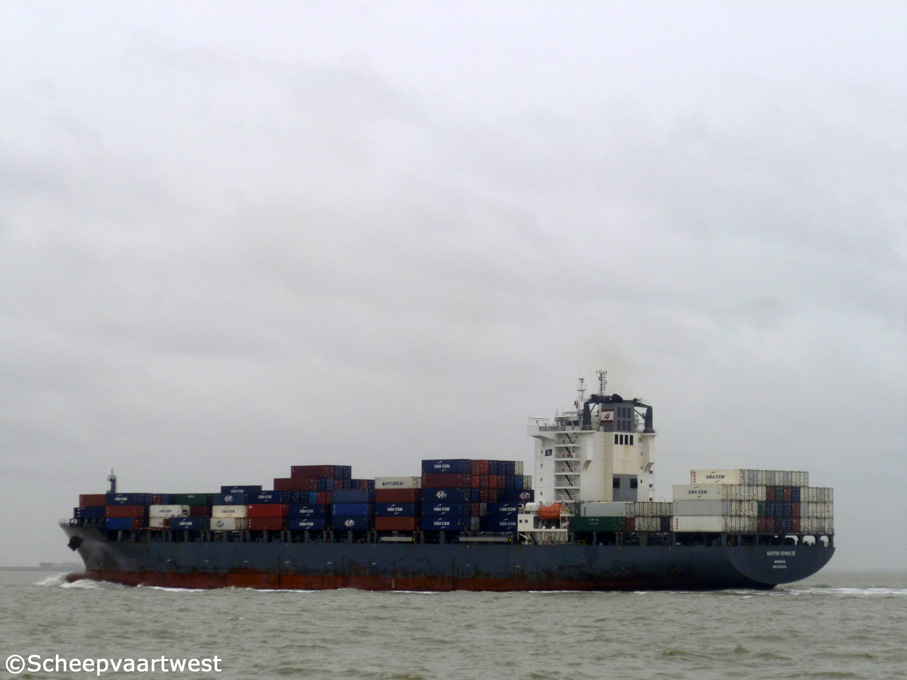

Westerschelde 06 February 2014 |
 |
 |
|
| Westerschelde 06/02/14 | Westerschelde 06/02/14 | |
|
Name |
GUSTAV SCHULTE |
|
Type |
Cellular containership |
|
IMO-number |
9436458 |
|
Call sign |
A8RV5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
35.991 t |
|
DWT |
Summer: 42.034 t |
|
NT |
15.938 t |
|
Number of 20ft containers |
3.534 |
|
Container capacity 14t |
2.353 |
|
Reefer capacity |
500 |
|
Length |
230,92 m overall 216,54 m registered |
|
Breadth |
32,20 m |
|
Draught |
12,00 m |
|
Keel to mast end |
54,44 m |
|
Freeboard |
2.811 mm |
|
Depth |
18,80 m moulded |
|
Speed |
22,2 knots |
|
Built |
2009 |
|
Keel laid |
08/12/2008 |
|
Launch date |
23/02/2009 |
|
Date of completion |
15/09/2009 |
|
Builder |
Shanghai Shipyard & Chengxi Shipyard Co., Ltd. 3F (Operation Dept.) No. 10 Bldg. 468, Yangshupu Road Yangpu Distric Shanghai People's Republic of China |
|
Yard number |
SS1134 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7K90MC-C - 2 stroke 7 cylinder 900 x 2.300 mm combustion engine 31.920 kW / 43.399 hp at 104,0 rpm Year of manufacture: 2008 Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan ,682-792 Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 35,4 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 628,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao, 266300 Shandong People's Republic of China |
|
Electric installations |
4x Plants each 450 V - 1.645 kVA 1x Plant 450 V - 212,5 kVA 2x Plants each 24 V - 78 Ah 2x Plants each 24 V - 150 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
4x Hyundai/Himsen 7H21/32 main diesel generatorsets each 1.645 kVA / 1.316 kW |
|
Emergency generator |
1x Sisu Diesel 645 DSBIG diesel generatorset 212,5 kVA |
|
Batteries |
12x Batteries for automation each 300 Ah 2x Batteries for UPS radio each 150 Ah 2x Batteries for start emergency engine each 78 Ah |
|
Compressed air receivers |
2x Receivers each 14.000 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 2x Receivers each 100 litres - 11,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Kawasaki KT-130B3 transverse thruster 1.180 kW, forward |
|
Number of holds |
6 |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Chain length: 687,50 m Diameter: 81 mm |
|
Cargo gear |
Gearless |
|
Manager |
Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG Vorsetzen 54 20459 Hamburg Federal Republic of Germany |
|
Registered owner |
Circular Quay Schifffahrtsgesellschaft mbH & Co. KG Deichstr. 48-50 20459 Hamburg Federal Republic of Germany |
|
Renamed |
09/2014 Circular Quay Liberia, Monrovia - Call sign: A8RV5 Owner: Circular Quay Schifffahrtsgesellschaft mbH & Co. KG |
|
Latest data adjustment |
14 September 2023 |
