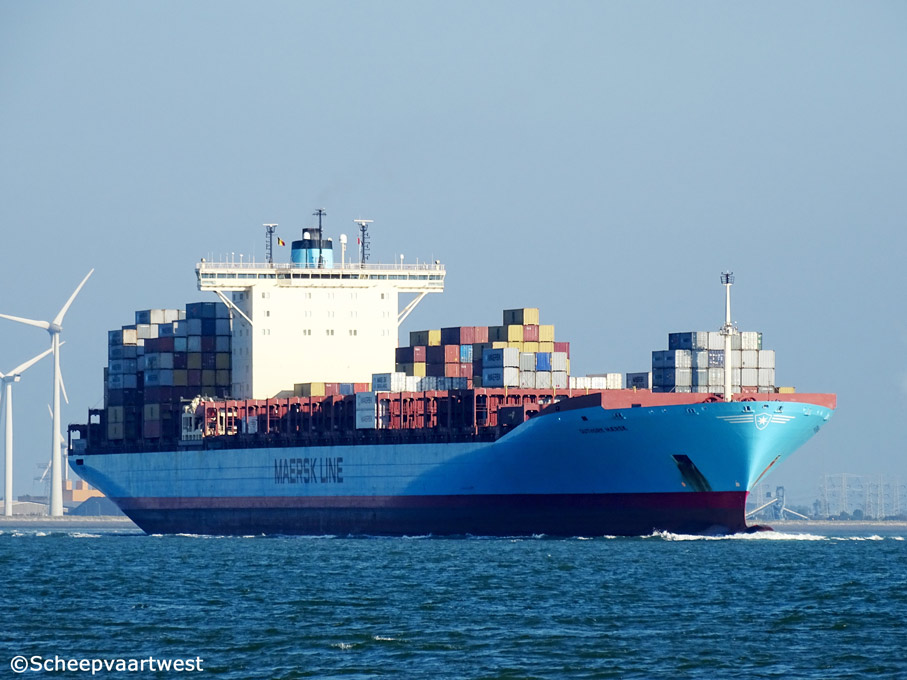

Westerschelde 10 October 2015 |
|
Name |
GUTHORM MAERSK |
|
Previous names |
01.2009 - 04.2014 Marit Maersk |
|
Type |
Cellular containership - Carriage of dangerous goods - Refrigerated Cargo |
|
IMO-number |
9359040 |
|
Call sign |
OUJN2 |
|
Flag |
Demnark |
|
Port of registry |
Skovshoved |
|
GT |
98.268 t registered Suez: 99823,35 t |
|
DWT |
Summer: 116.100 t |
|
NT |
50.732 t registered Suez: 89.506,51 t |
|
Number of 20ft containers |
10.150 |
|
Container capacity 14t |
7.668 |
|
Reefer capacity |
900 |
|
Length |
366,89 m overall 351,08 m between perpendiculars |
|
Breadth |
42,80 m moulded |
|
Draught |
Max.: 15,0 m |
|
Freeboard |
4.565 mm |
|
Depth |
24,10 m moulded |
|
Speed |
Max.: 25,0 knots |
|
Built |
2009 |
|
Keel laid |
13.06.2008 |
|
Launch date |
07.11.2008 |
|
Delivery date |
19.01.2009 |
|
Builder |
Odense Steel Shipyard Ltd. |
|
Yard number |
L215 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
Non tight: 8 Water tight: 14 Oil tight: 4 |
|
Main engine |
1x Doosan-Sulzer 12RT-FLEX96C - 2 stroke 12 cylinder 960 x 2.500 mm diesel engine 68.640 kW / 93.324 hp at 102,0 rpm Manufacturer: Doosan Engine Co. Ltd. |
|
Propellers |
1x Six blade solid bronze propeller |
|
Boilers |
1x LP exhaust gas boiler AV-6N - 12,0 bar 1x HP exhaust gas boiler AV-6N HP - 12,0 bar 1x Vertical watertube oil fired auxiliary boiler MISSION OS - 9,0 bar Manufacturer: Aalborg Industries A/S |
|
Shaft generator |
1x 2.000 kW |
|
Generators |
1x Combo power / Steam turbine generator - 6.000 kW / 7.000 kVA 3x MaK 8M32 diesel generatorsets each 3.600 kW Manufacturer: Sem Drasov |
|
Hold capacity |
195.661,4 m³ |
|
Number of tanks |
Ballast: 38 Fuel oil: 11 Lubricating oil: 8 Sea water: 7 Fresh water: 7 Diesel oil: 5 Waste water: 5 Sludge: 4 Chain: 2 Hydraulic oil: 1 |
|
Tank capacities |
Diesel oil: 412.8 m³ / 371,52 t Freshwater: 634 m³ Fuel oil: 12.543 m³ / 12.668,4 t Hydraulic Oil: 4,3 m³ / 3,87 t Lube Oil: 520,1 m³ / 468,09 t Tank Ballast: 42.222,5 m³ / 43.278,06 t |
|
Lifting equipment |
1x Monorail stores crane - SWL 11,5 t Builder: Acta A/S 2x Overhead engineroom crane - SWL 12,5 t Builder: Danish Crane Building 2x Stores/bunker/ suez-mob boat pedestal crane - SWL 5,0 t Builder: Acta A/S |
|
Cargo gear |
Gearless |
|
Manager |
AP Moller Singapore Pte. Ltd. 200 Cantonment ROAD 10-00 Southpoint Singapore, 089763 republic of Singapore |
|
Operator |
Maersk Line |
|
Owner |
Maersk Line |
|
Registered owner |
Maersk Line A/S |
|
Latest data adjustment |
08 November 2015 |
