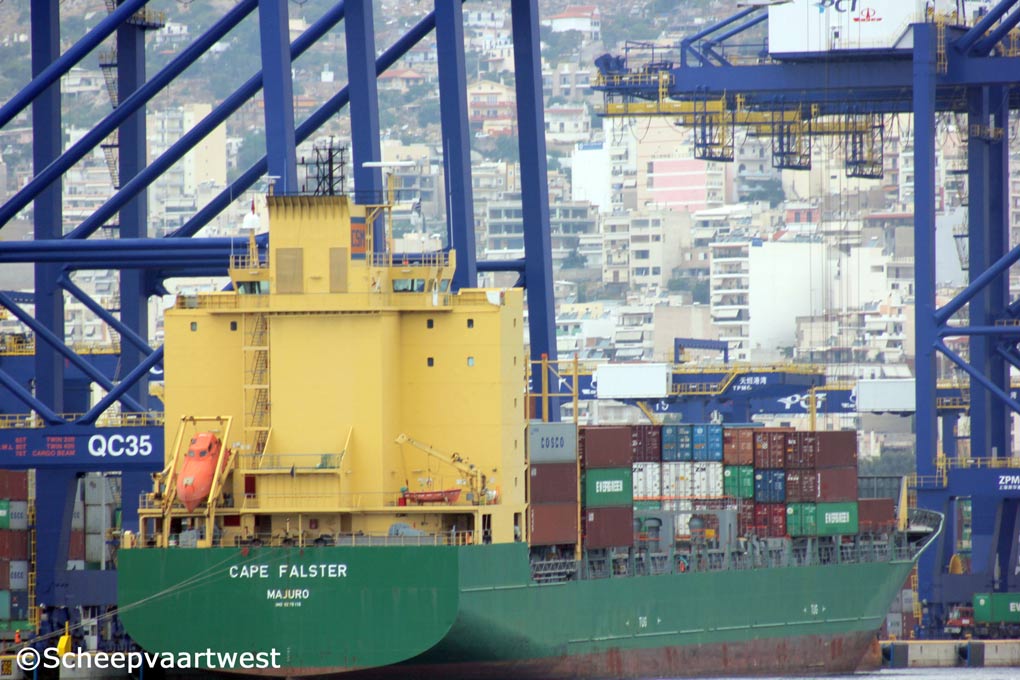

Cape Falster 01

Piraeus - Greece 17 June 2014



Name

CAPE FALSTER

Previous names

2005 - 05.2011 Cape Falster

2011 - 04.2012 Vento Di Tramontana

Type

Containership

IMO-number

9275115

Call sign

V7IU2

Flag

Marshall Islands

Port of registry

Majuro

GT

14.308 t

DWT

Summer: 16.397 t

NT

4.650 t

Number of 20ft containers

1.200

Container capacity 14t

924

Reefer capacity

178

Length

154,49 m overall

148,10 m registered

Breadth

25,00 m registered

Draught

9,00 m

Forecastle

12,90 m

Poop

13,29 m

Freeboard

5.215 mm

Depth

14,20 m moulded

Speed

19,0 knots

Built

2005

Keel laid

27.01.2005

Launch date

24.06.2005

Date of completion

01.09.2005

Builder

Detlef Hegemann Rolandwerft GmbH & Co. KG
Industriestr. 6
27804 Berne
Federal Republic of Germany

Yard number

217

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN B&W 7S50MC-C - 2 stroke 7 cylinder 500 x 2.000 mm diesel engine - 11.060 kW at 127,0 rpm

Year of manufacture: 2005

Manufacturer: MAN B&W Diesel A/S Frederikshavn
Niels Juels Vej 15
9900 Frederikshavn
Kingdom of Denmark

Propellers

1x Solid propeller (keyless) - aft at 127,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 17,4 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 180,0 m²

Year of Manufacture: 2005

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao, 266300 Shandong
People's Republic of China

Electric installations

3x Plants each 450/230 V - 925 kVA

1x Plant 450 V - 125 kVA

2x Plants each 24 V - 130 Ah

2x Plants each 24 V - 135 Ah

4x Plants each 24 V - 225 Ah

Generators

3x MAN-B&W 6L23/30H main diesel generatorsets each 925 kVA / 740 kW

Emergency generator

1x Diesel generatorset 125 kVA

Batteries

4x Batteries for automation each 225 Ah

Compressed air receivers

2x Receivers each 4.500 litres - 30,0 bar

1x Receiver 63 litres - 30,0 bar

Bow thruster

2x Transverse thruster each 700 kW, forward

Tank capacities

Fuel oil: 1.546 m³

Water Ballast: 6.937 m³

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Lifting equipment

3x Cranes - SWL 2,0 t each

Crew size

25

Manager

Columbia Shipmanagement (Deutschland) GmbH
Große Elbstr. 275
22767 Hamburg
Federal Republic of Germany

Registered owner

Cape Falster Shipping Co. Ltd.
Trust Company Complex Ajeltake Road Ajeltake Island
96960 Majuro
Republic of the Marshall Islands

Latest data adjustment

06 July 2014
