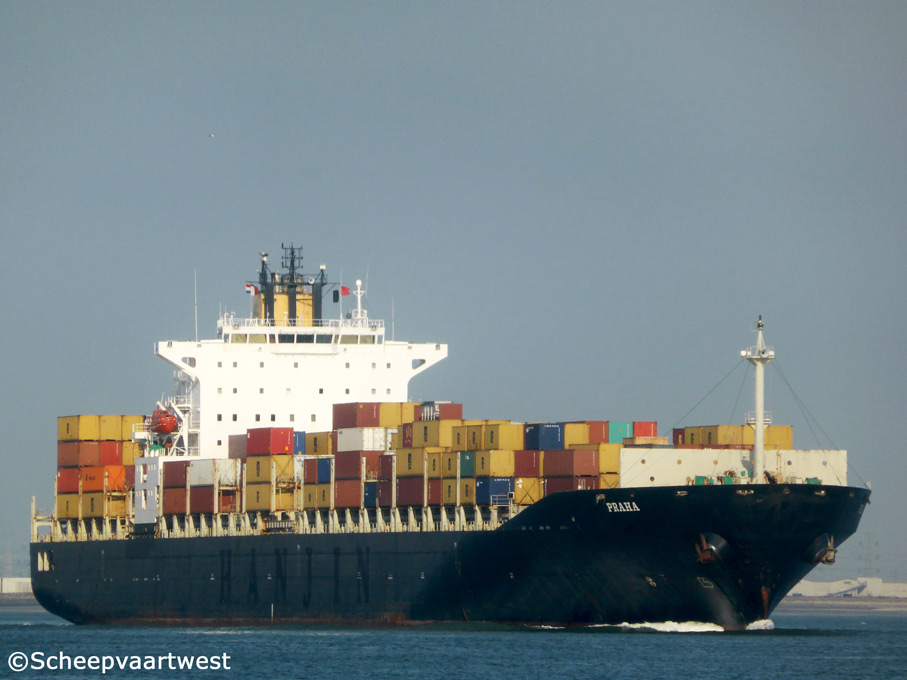

Praha 01

Westerschelde 22 July 2014



Name

PRAHA

Previous names

2001 - 05.2013 Hanjin Praha

Type

Cellular containership

IMO-number

9232072

Call sign

A8CP5

Flag

Liberia

Port of registry

Monrovia

GT

50.242 t

DWT

Summer: 58.750 t

NT

27.530 t

Number of 20ft containers

4.389

Container capacity 14t

3.051

Reefer plug

400

Length

282,08 m overall

266,42 m registered

Breadth

32,20m registered

Draught

13,00 m

Freeboard

4.370 mm

Depth

21,50 m moulded

Speed

24,0 knots

Built

2001

Keel laid

06.08.2001

Launch date

27.10.2001

Date of completion

12.2001

Builder

Hanjin Heavy Industries Co., Ltd.
29, 5-Ka, Pongnae-dong Yongdo-gu
Busan
Republic of Korea

Yard number

N-090

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 9K90MC-C - 2 stroke 9 cylinder 900 x 2.300 mm diesel engine - 41.040 kW at 104,0 rpm

Year of manufacture: 2001

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

Steam boiler, oil fired - 9,8 bar

Heating surface: 50,0 m²

Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 727,0 m²

Year of manufacture: 2001

Manufacturer: KangRim Industries Co., Ltd. (2nd Factory)
1515-11, Dadae-dong, Saha-gu
Busan
Republic of Korea

Electric installations

2x Plants each 440/220 V - 2.125 kVA

2x Plants each 440/220 V - 2.488 kVA

1x Plant 440 V - 213 kVA

2x Plants each 24 V - 146 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

2x Main diesel generatorsets each 2.488 kVA

2x Main diesel generatorsets each 2.125 kVA

Emergency generator

1x Diesel generatorset 213 kVA

Compressed air receivers

2x Receivers each 13.500 litres - 32,4 bar

1x Receiver 300 litres - 32,4 bar

4x Receivers each 60 litres - 9,7 bar

1x Receiver 20 litres - 9,7 bar

1x Receiver 200 litres - 7,7 bar

Bow thruster

1x Transverse thruster Nakashima 1.850 kW, forward

Tank capacities

Fuel oil: 6.057 m³

Water ballast: 17.561 t

Anchor equipment

3x Anchors weight each 12.300 kg

Chain length: 687,50 m

Cargo gear

Gearless

Manager

Reederei F. Laeisz GmbH
Lange Str. 1a
18055 Rostock
Federal Republic of Germany

Registered owner

DS-Rendite-Fonds Nr. 86 MS "PRAHA" GmbH & Co. Containerschiff KG
Stockholmer Allee 53
44269 Dortmund
Federal Republic of Germany

Scrapped

02.2016 Alan - India

Latest data adjustment

26 August 2014
