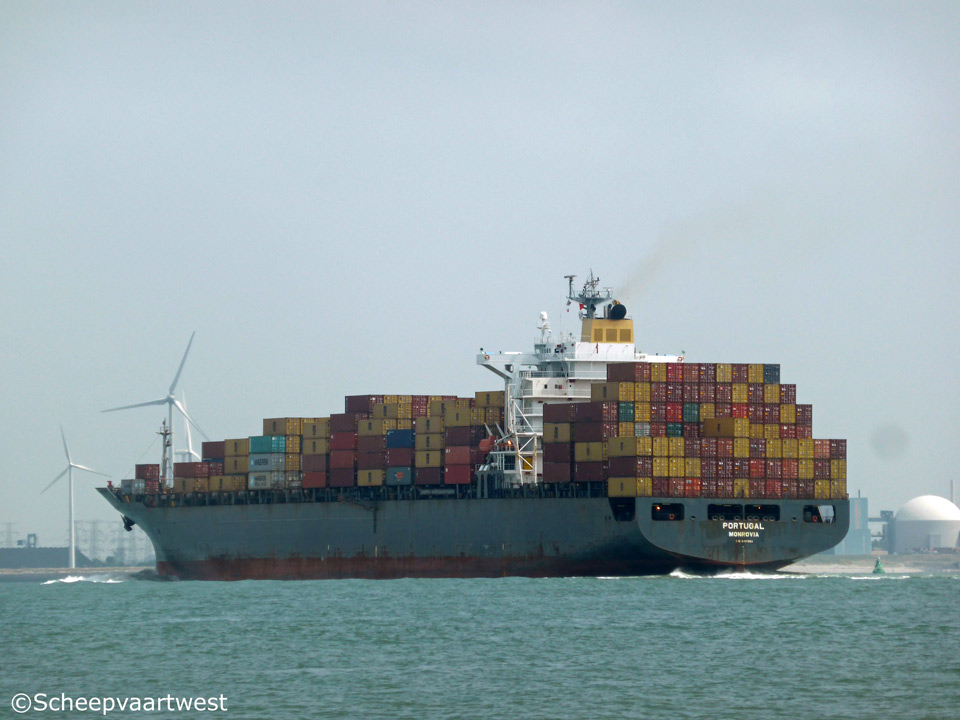

Portugal 01

Westerschelde 10 August 2015



Name

PORTUGAL

Previous names

1998 - 11.2006 Portugal Senator

11.2006 - 06.2008 CMA CGM Asia

06.2008 - 04.2012 CSAV Jura

Type

Cellular containership - Panamax

IMO-number

9147083

Call sign

D5IH5

Flag

Liberia

Port of registry

Monrovia

Previous flags

Germany, Rostock

2013 - 2015 G.D. Luxembourg, Luxembourg City

GT

53.324 t

DWT

Summer: 63.654 t

Number of 20ft containers

4.545

Container capacity 14t

3.361

Reefer capacity

350

Length

294,00 m overall

283,00 m between perpendiculars

Breadth

32,20 m

Draught

13,00 m

Depth

21,80 m

Speed

Max.: 24,6 knots

Built

1998

Keel laid

08.08.1997

Launch date

29.11.1997

Date of completion

18.02.1998

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

1023

Hull material

Steel

Hull type

Single hull

Double bottom

Bulkheads

8

Continuous decks

1

Main engine

1x Hyundai/B&W 9K90MC - 9 cylinder diesel engine 41.040 kW at 104 rpm

Propellers

1x Fixed pitch propeller

Boilers

2x HHI/MAN-B&W Holeby diesel type 8L28/32H - 1.550 kW at 720 rpm each 2 generators each 1.937,5 kVA - 440/220 V, 60 Hz each

1x HHI/MAN-B&W Holeby diesel type 7L28/32 H - 1470 kW at 720 rpm coupled with generator 1.725 kVA - 440/220 V, 60 Hz

Bow thruster

1x 1.800 kW

Number of holds

6

Hold capacity

Grain: 111.064 m³

Number of hatches

17

Hatch 1: 12,64 x 12,96 m

Hatch 2: 12,64 x 18,00 m

Hatch 3: 12,64 x 23,04 m

Hatch 4-17: 12,64 x 28,20 m

Tank capacities

Ballast: 18.125 t
Bunker: 6.000 t
Fuel oil: 6.170 m³

Cargo gear

Gearless

Crew

24

Manager

Reederei F. Lafisz

Hamburg
Germany

Owner

F. Lafisz

Hamburg
Germany

Scrapped

26.05.2016 Beached at Chittagong - Bangladesh

Latest data adjustment

10 May 2017
