Name |

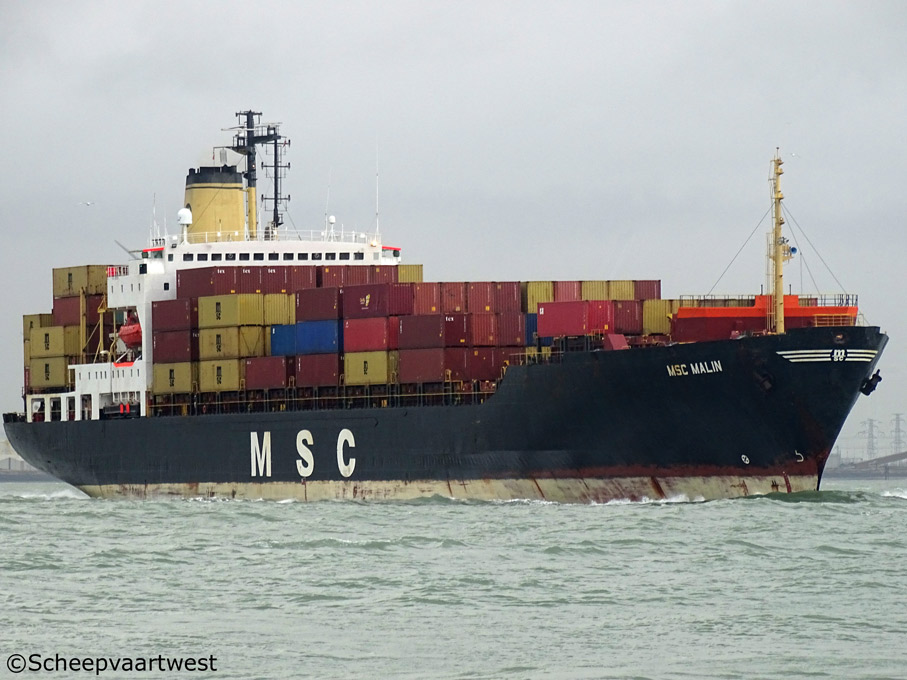

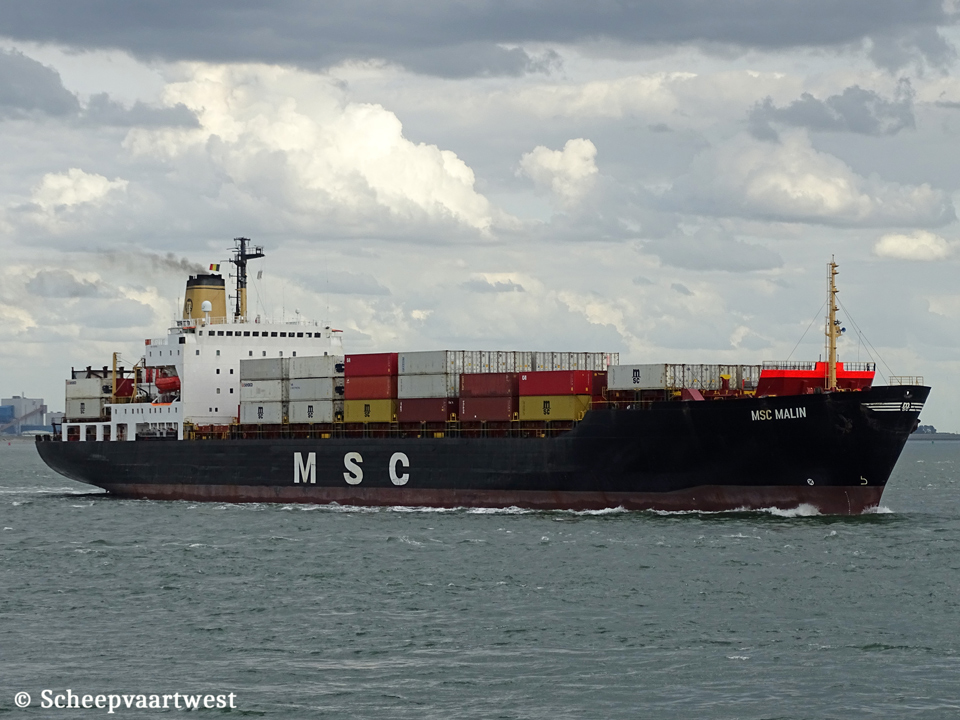

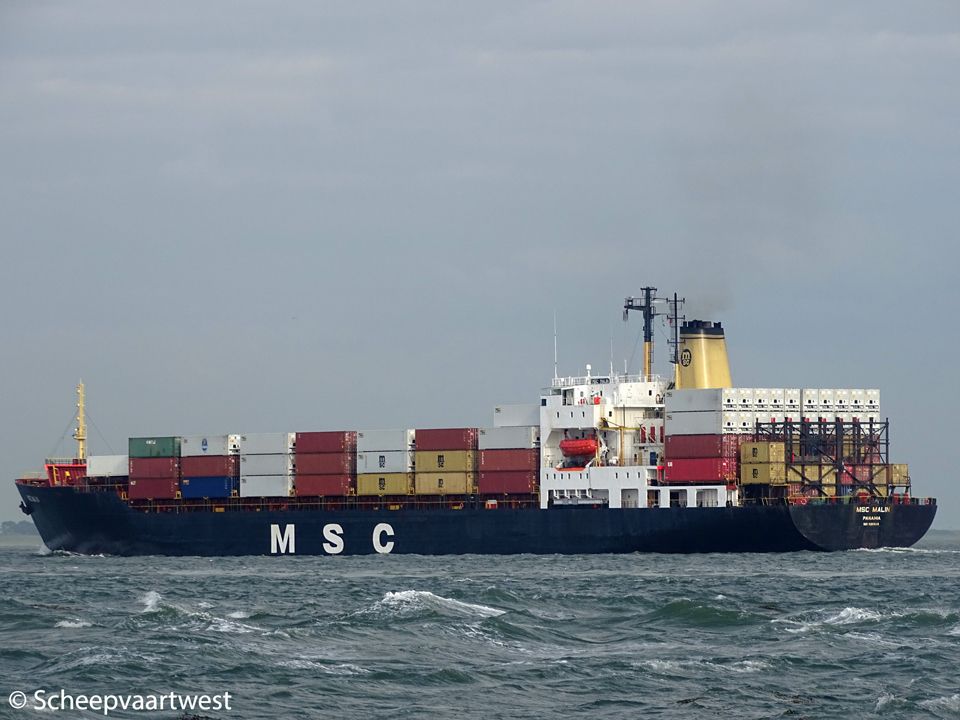

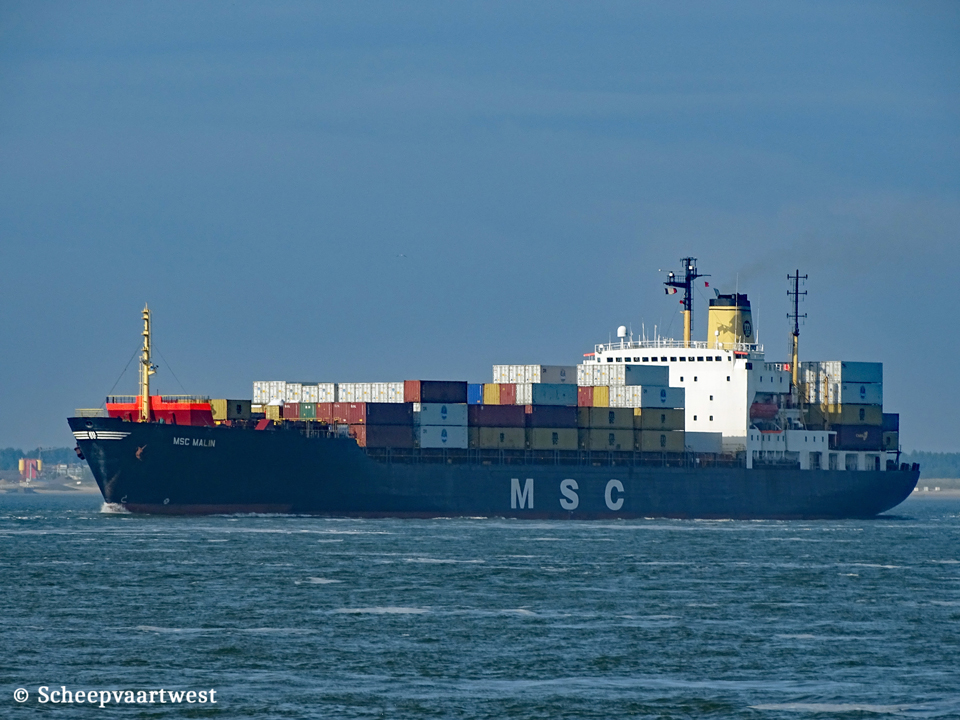

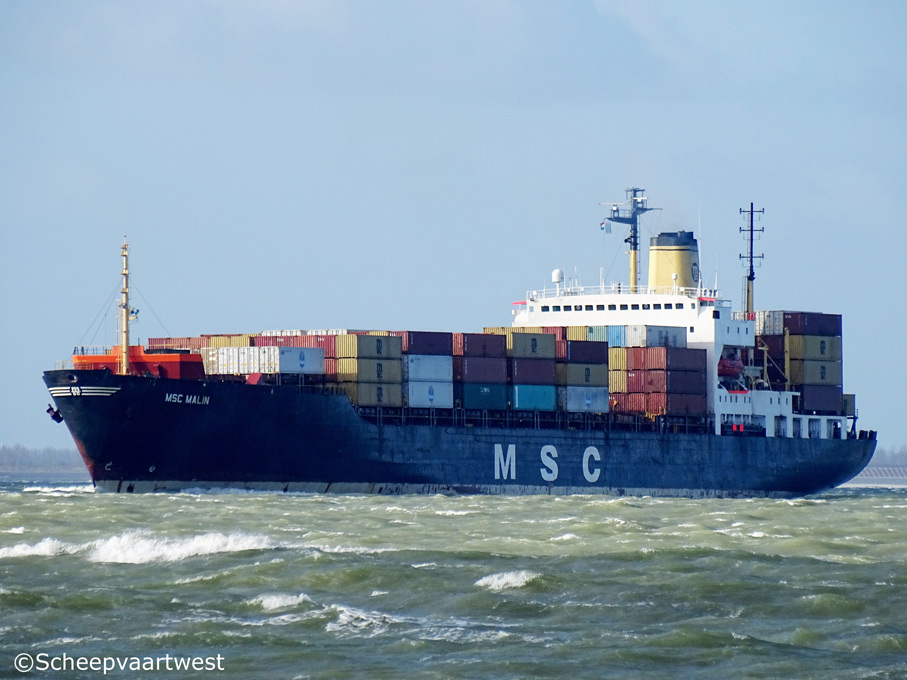

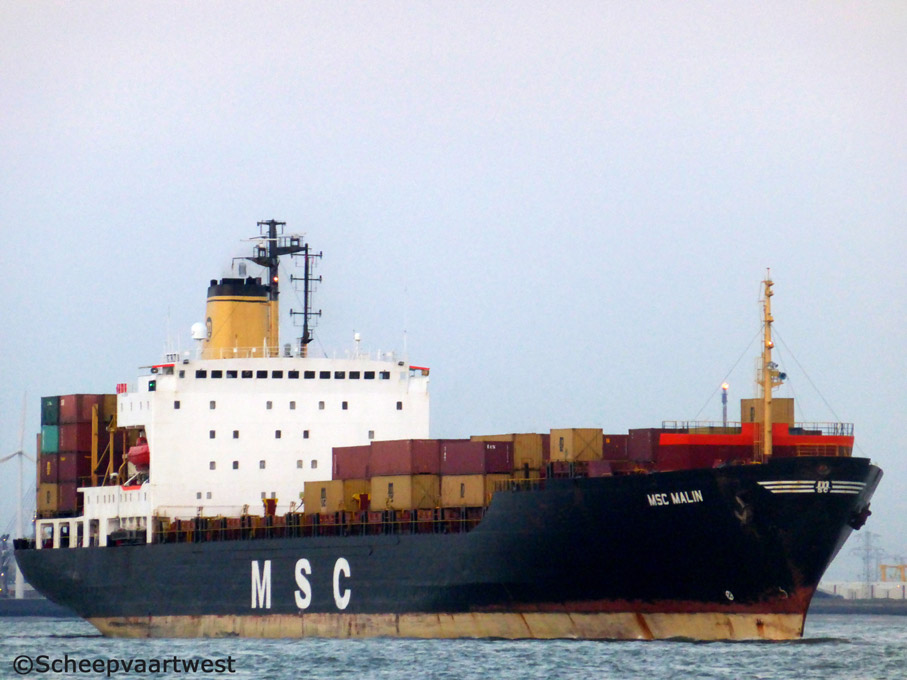

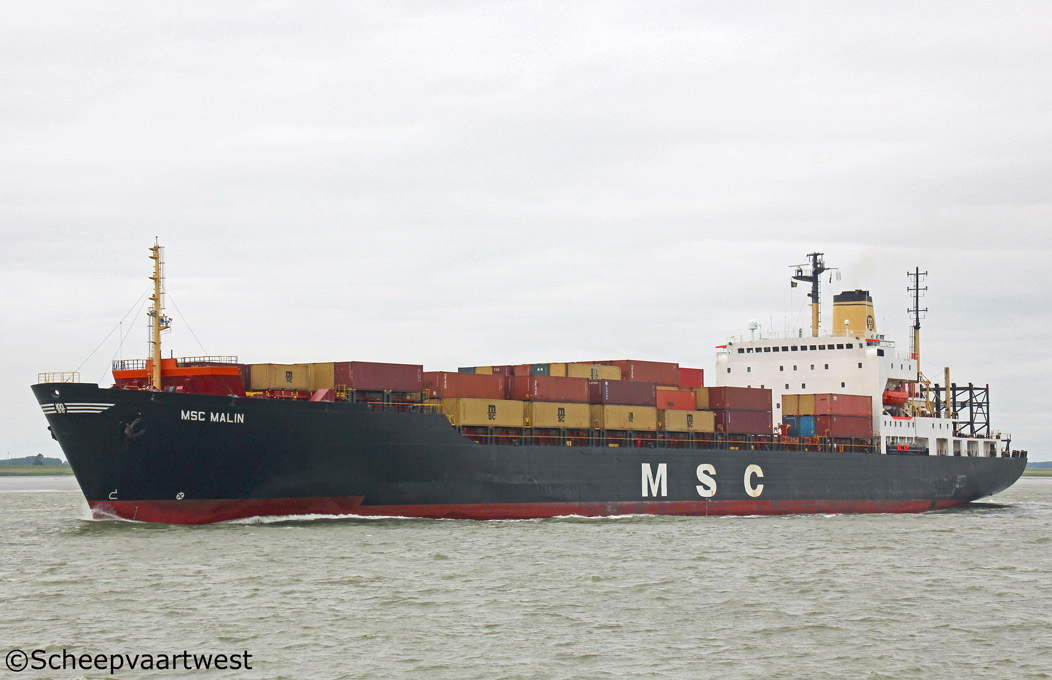

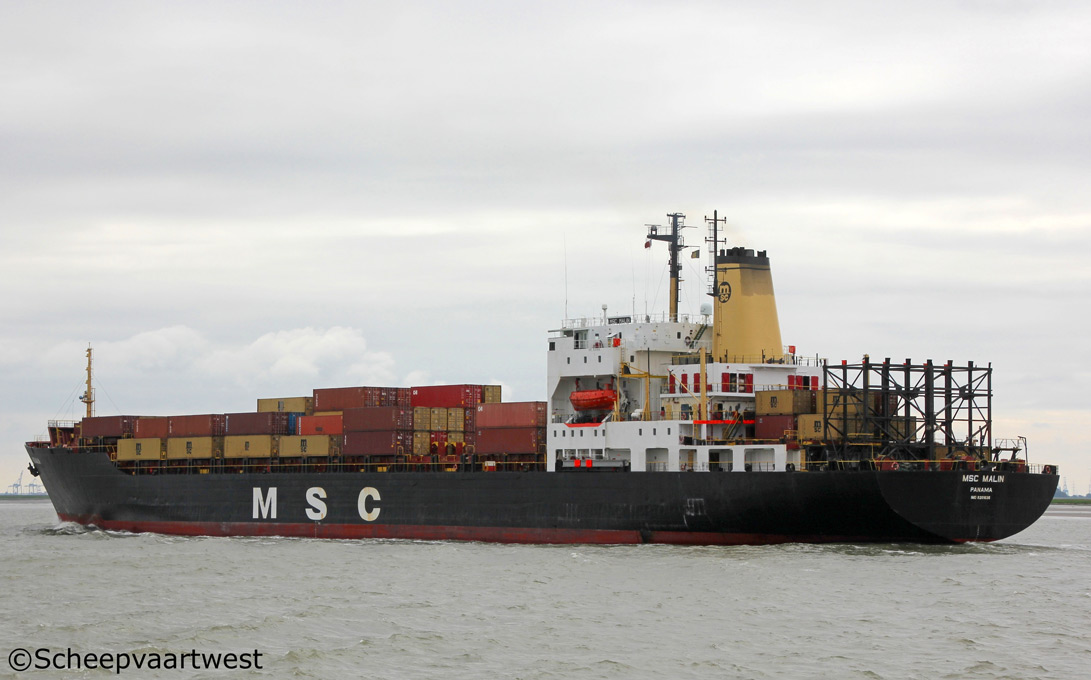

MSC MALIN |
Previous names |
1982 - 1995 Kapitan Kanavskiy 1995 - 1997 Tavira 1997 - 12/2000 Maersk Montreal 2000 - 02/2003 Tavira 2003 - 02/2004 Pelado |
Type |
Cellular containership |
IMO-number |
8201636 |
Call sign |
H3EU |
Flag |
Republic of Panama |
Port of registry |
Panama City |
GT |
21.586 t |
DWT |
Summer: 21.370 t |
NT |
7.164 t |
Number of 20ft containers |
1.438 |
Container capacity 14t |
1.073 |
Reefer capacity |
80 |
Length |
203,06 m overall 192,73 m between perpendiculars |
Breadth |
25,40 m |
Draught |
9,82 m |
Keel to mast end |
46,80 m |
Freeboard |
6.128 mm |
Depth |
15,91 m |
Speed |
21,0 knots |
Built |
1982 Ship was lengthened in 1989 |
Builder |
VEB Warnowwerft Warnemünde Warnemünde German Democratic Republic |
Yard number |
472 |
Hull material |
Steel |
Hull type |
Single hull |
Watertight compartments |
9 |
Continuous decks |
1 |
Main engine |
1x MAN-B&W 9DKRN80/160 - 2 stroke 9 cylinder 800 x 1.600 mm combustion engine 15.669 kW / 21.290 hp at 122,0 rpm Built: 1981 Builder: Brjansk Engineering Works, Brjansk - Russia |
Propellers |
1x Screw propeller solid - aft at 122,0 rpm |
Boilers |
1x CHM 67,00 m² - 10,0 bar 1x CHR 494,00 m² - 13,0 bar |
Electric installations |
Power voltage: 380 Volt Lighting voltage: 220 Volt Frequency:50 Hz |
Generators |
5x Diesel generatorsets each 663 kVA - 531 kW - 801 hp |
Bow thruster |
1x 734 kW |
Number of holds |
6 |
Cargo hold capacity |
Grain: 33.164 m³ |
Cargo hatchways |
20 1x 6,30 x 8,20 m 1x 6,30 x 13,60 m 4x 13,00 x 8,00 m 14x 12,90 x 10,70 m |
Tank capacities |
Fuel: 4.430 m³ |
Cargo gear |
Gearless |
Crew size |
23 |
Commerical manager |
Niki Shipping Co. SA Building A, 24, Filellinon Street 105 57 Athens Greece |
ISM manager |
MSC Shipmanagement MSC House, 8, Spyrou Kyprianou Avenue Limassol Cyprus |
Operator |
MSC - Mediterranean Shipping Company S.A. Geneva Switzerland |
Registered owner |
NSM Malin Shipping Company Limited Care of Niki Shipping Co SA , Building A 24, Filellinon Street 105 57 Athens Greece |
Latest data adjustment |
14 October 2021 |
