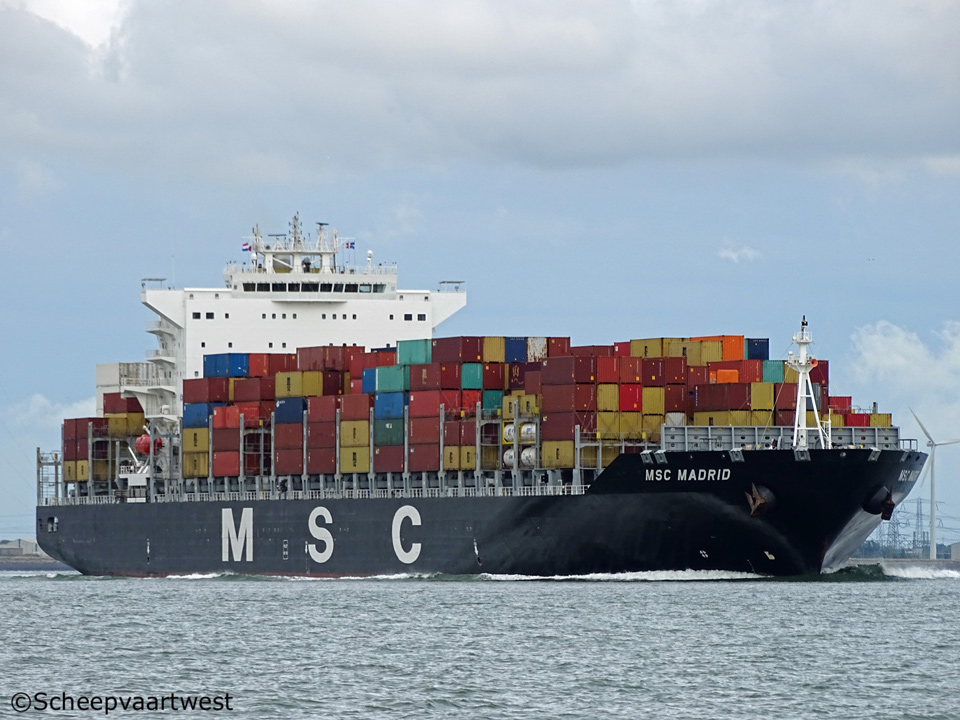

MSC Madrid 01

Westerschelde 10 July 2017

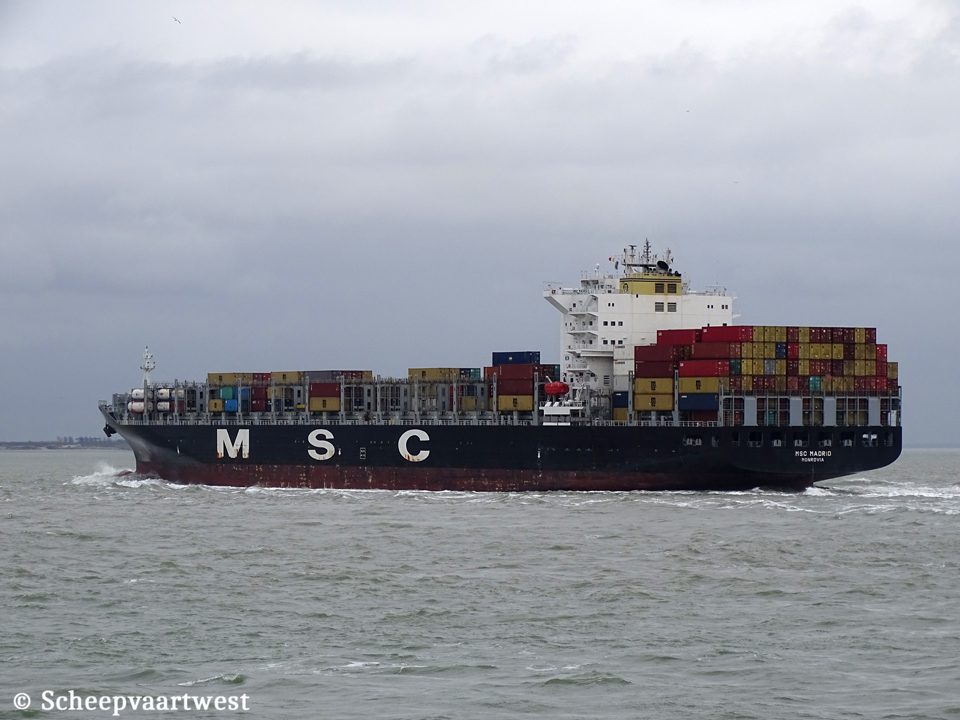

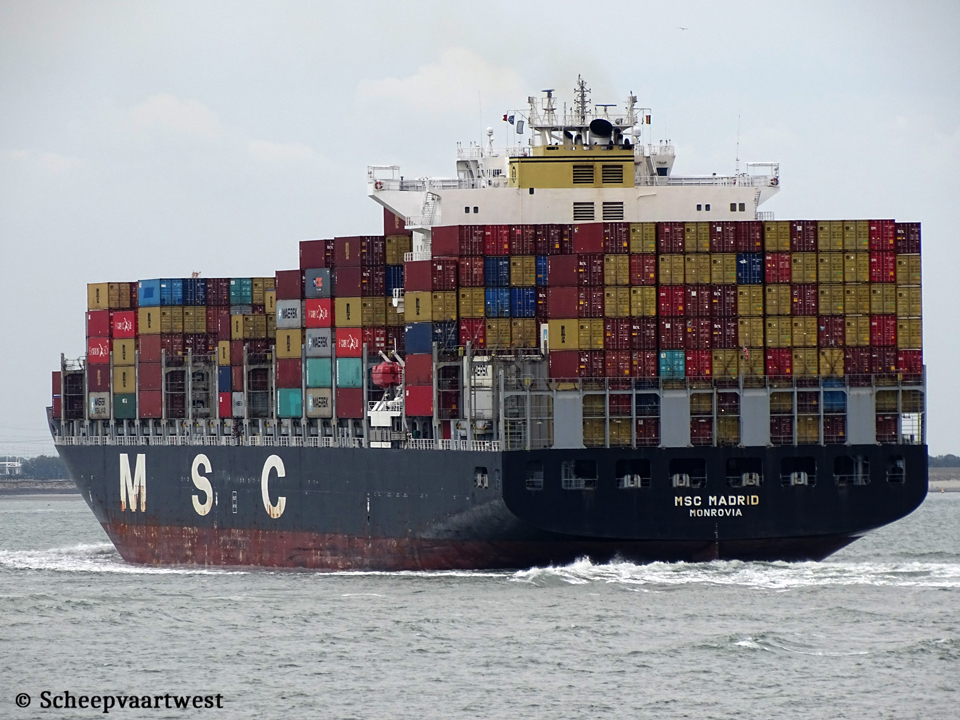

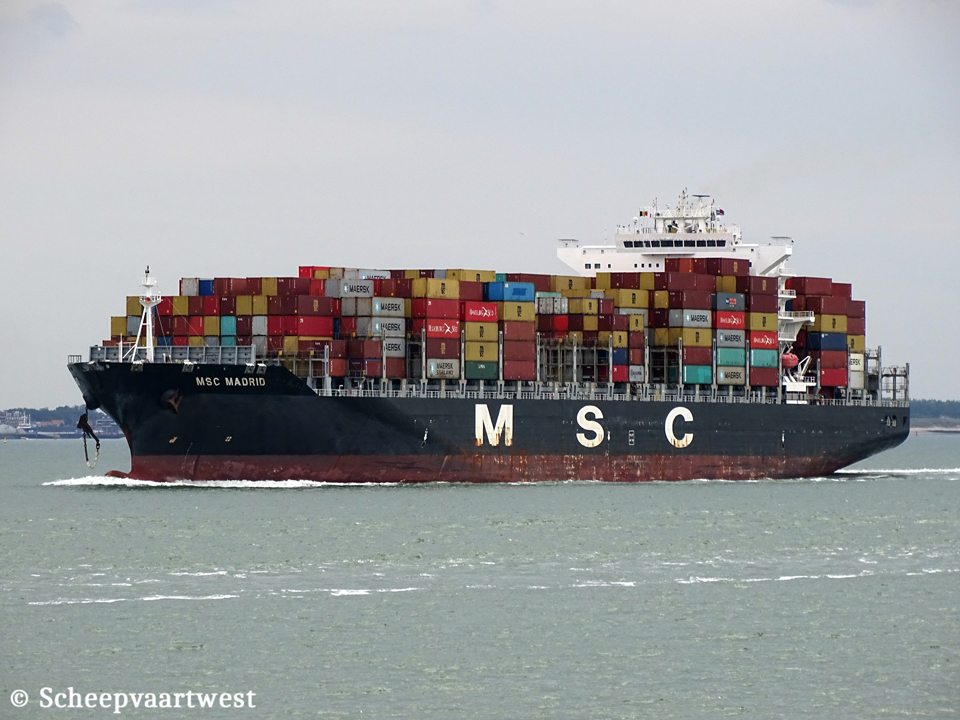

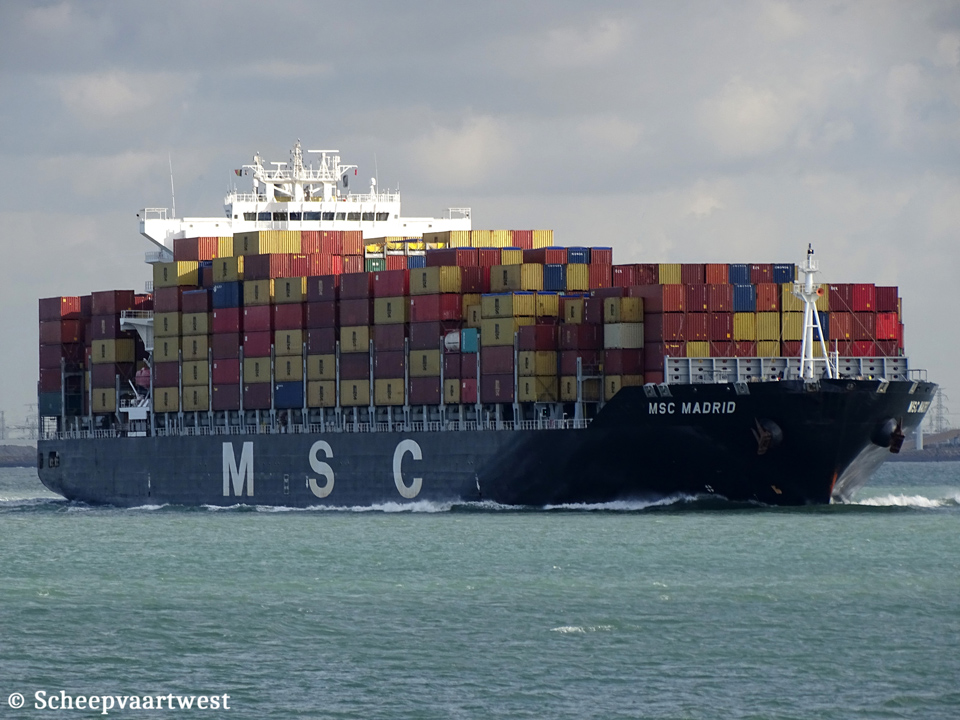

MSC Madrid 03   MSC Madrid 04   MSC Madrid 05   MSC Madrid IMO 9480198 06   MSC Madrid IMO 9480198 08   MSC Madrid IMO 9480198 09
Westerschelde 05/09/19 Westerschelde 09/11/19 Westerschelde 09/11/19 Westerschelde 27/08/20   Westerschelde 27/08/20   Westerschelde 21/12/19


Name

MSC MADRID

Previous names

CPO Vigo

Type

Cellular containership

IMO-number

9480198

Call sign

9HA5714

Flag

Malta

Port of registry

Valletta

Previous flags

2011 - 2022 Liberia, Monrovia - Call sign: A8ZV2

GT

61.870 t

DWT

Summer: 74.375,95 t

NT

35.409 t

Light ship

22.677 t

Number of 20ft containers

5.568

Container capacity 14t

4.390

Reefer capacity

716

Length

270,40 m overall

257,51 m between perpendiculars

Breadth

40,06 m extreme

Draught

13,50 m

Depth

21,70 m

Speed

Max: 22,4 knots

Built

2011

Keel laid

20/12/2010

Launch date

09/05/2011

Date of completion

31/10/2011

Builder

Daewoo Mangalia Heavy Industries S.A.

Mangalia

Romania

Yard number

4084

Hull material

Material Shipbuilding steel (standard)

Hull type

Double Bottom Type Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W 7K98MC-C - 2 stroke 7 cylinder 980 x 2.400 mm combustion engine 42.140 kW / 57.294 hp at 104,0 rpm

Year of manufacture: 2010

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 104 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar

Heating surface: 29,5 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 471,0 m²

Year of manufacture: 2010

Manufacturer: Alfa Laval Aalborg A/S

Electric installations

1x Plant 450 V - 2.867 kVA

1x Plant 450 V - 2.867 kVA

1x Plant 450 V - 3.333 kVA

1x Plant 450 V - 3.333 kVA

1x Plant 450 V - 438 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

2x MAN 8L27/38 main diesel generatorsets each 2.500 kW / 3.333 kVA

2x MAN 7L27/38 main diesel generatorsets each 2.150 kW / 2.967 kVA

Emergency generator

1x KTA-19 DM diesel generatorset 438 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 200 Ah

1x Battery for start emergency engine 200 Ah

Compressed air receivers

2x Receivers each 13.500 litres - 33,0 bar

1x Receiver 400 litres - 33,0 bar

1x Receiver 2.000 litres - 7,7 bar

1x Receiver 250 litres - 7,7 bar

Bow thruster

1x Transverse thruster 2.000 kW, forward

Tank capacities

Ballast: 23.251 m³

Anchor equipment

3x Anchors weight each 16.100 kg

Length: 751,08 m

Diameter: 97 mm

Cargo gear

Gearless

Commercial manager

Claus-Peter Offen Containerschiffreederei (GmbH & Co.) KG

Bleichenbruecke 10

20354 Hamburg

Germany

ISM manager

CPO Containerschiffreedere

Bleichenbruecke 10

20354 Hamburg

Germany

Operator

MSC - Mediterranean Shipping Company

Registered owner

Kommanditgesellschaft MS "CPO BILBAO" Offen Reederei GmbH & Co.

Care of Reederei Claus-Peter Offen GmbH & Co KG

Bleichenbruecke 10

20354 Hamburg

Germany

Latest data adjustment

22 June 2024
