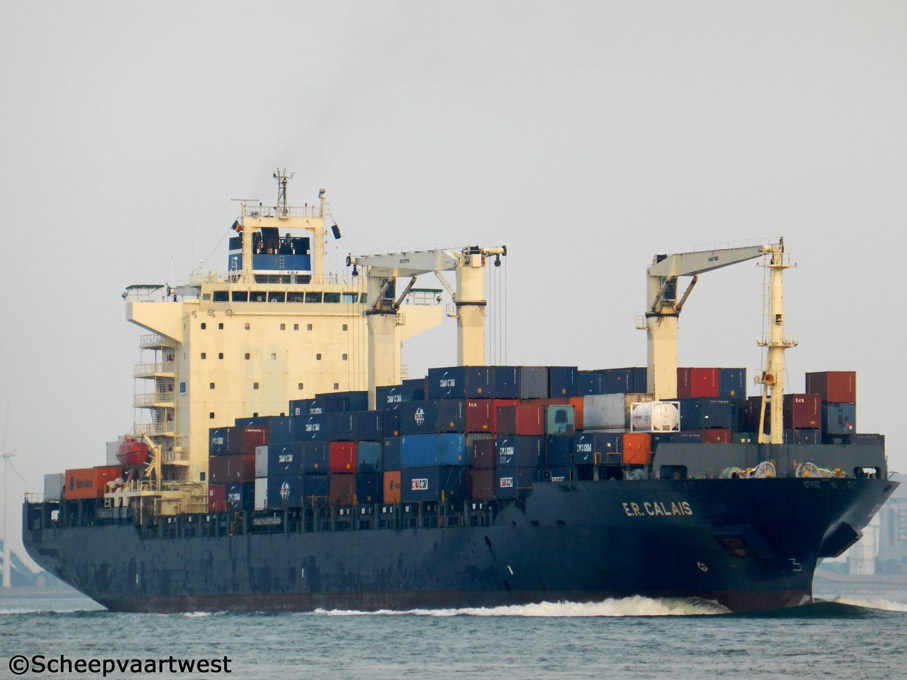

E.R. Calais 01

Westerschelde 15 September 2014



Name

E.R. CALAIS

Previous names

2005 - 2010 CMA CGM L' Astrolabe

Type

Cellular containership

IMO-number

9301445

Call sign

A8GA2

Flag

Liberia

Port of registry

Monrovia

GT

26.836 t

DWT

Summer: 34.263 t

NT

12.743 t

Number of 20ft containers

On deck: 1.612

In hold: 944

Total: 2.556

Container capacity 14t

1.768

Reefer capacity

On deck: 350

In hold: 250

Total: 600

Length

210,00 m overall

200,35 m registered

Breadth

30,20 m registered

Draught

11,50 m

Depth

16,70 m moulded

Speed

21,0 knots

Built

2005

Keel laid

01.11.2004

Launch date

14.01.2005

Date of completion

07.02.2005

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

H1625

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x Sulzer Wärtsilä 7RTA 72UB - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2004

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1000 Bangeojinsunhwan-doro Dong-gu
Ulsan
Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft at 99,0 rpm

Boilers

1x Steam boiler, oil fired - 7,85 bar

Heating surface: 30,0 m²

1x Steam boiler, exhaust gas heated - 7,85 bar
Heating surface: 304,0 m²

Year of manufacture: 2004

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

4x Plants each 440/230 V - 2.133 kVA

1x Plant 440 V - 250 kVA

2x Plants each 24 V - 56 Ah

2x Plants each 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 8L28/32H main diesel generatorsets each 2.133 kVA

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 33,0 bar

1x Receiver 250 litres - 33,0 bar

1x Receiver 2.000 litres - 8,8 bar

Bow thruster

1x Transverse thruster 1.000 kW, forward

Anchor equipment

3x Anchors weight each 9.300 kg

Chain Length: 660,00 m

Cargo gear

4x Cranes - SWL 40,0 t each

Crew size

27

Manager

E.R. Schiffahrt GmbH & Cie. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Registered owner

Wagner Hsam Shipping Co. Ltd.
80, Broad Street
1000 Monrovia
Republic of Liberia

Latest data adjustment

22 October 2014
