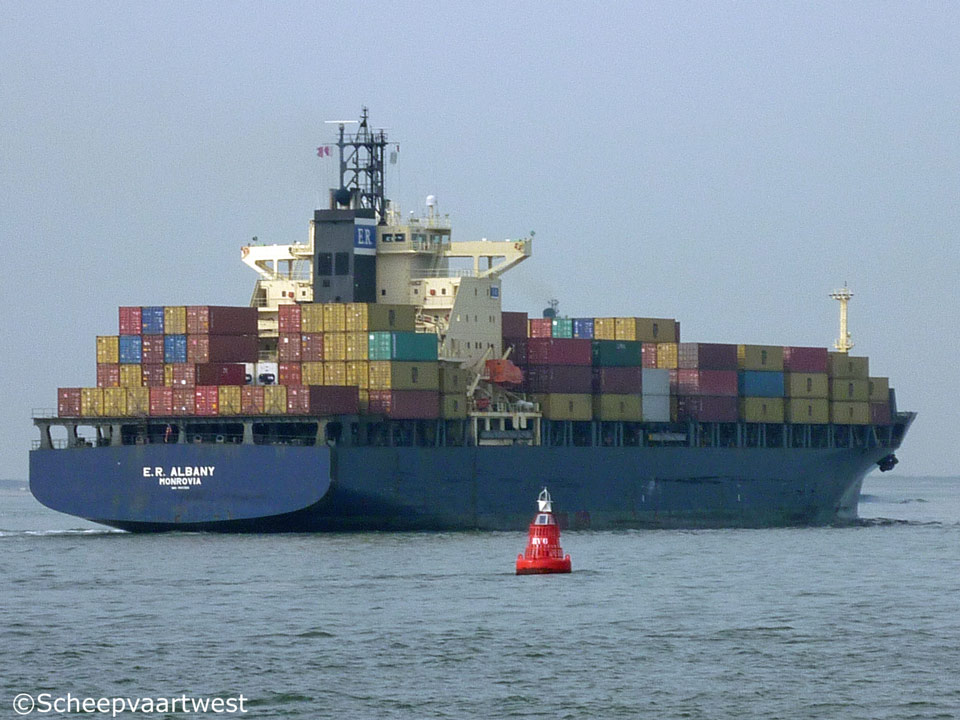

E.R. Albany 02

Westerschelde 02 April 2012

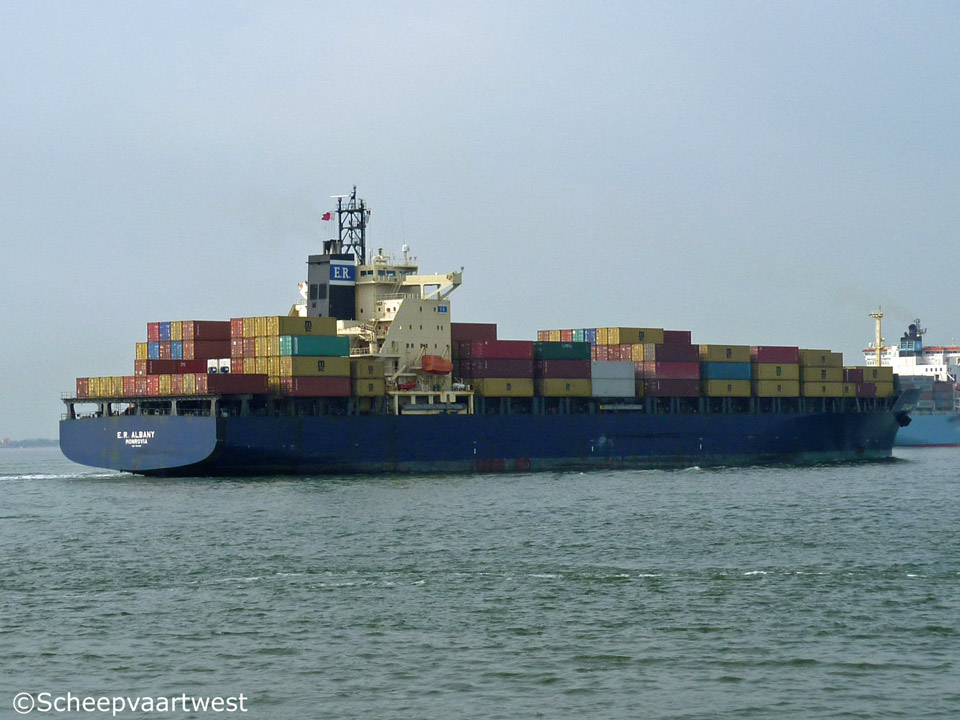

E.R. Albany 01
Westerschelde 02/04/12



Name

E.R. ALBANY

Previous names

1996 - 12.2000 ZIM Sydney

12.2000 - 03.2002 Rhein

03.200 - 03.2004 E.R. Albany

03.2004 - 07.2006 CMA CGM Egypt

07.2006 - 01.2007 Macandrews America

01.2007 - 04.2013 E.R. Albany

Type

Cellular containership

IMO-number

9116369

Flag

Liberia

Port of registry

Monrovia

Previous flags

Liberia since 01.12.2000

Germany since 01.03.2002

Liberia since 01.03.2002

Panama since 01.04.2013

GT

30.280 t

DWT

Summer: 35.966 t

NT

12.152 t

Number of 20ft containers

2.825

Container capacity 14t

2.025

Reefer capacity

214

Length

201,53 m overall

190,20 m between perpendiculars

Breadth

30,25 m extreme

Draught

12,20 m

Freeboard

2.720 mm

Depth

19,00 m

Speed

Max.: 22,0 knots

Built

1996

Keel laid

04.10.1995

Launch date

03.02.1996

Date of completion

05.03.1996

Builder

Halla Engineering & Heavy Industries Ltd.
Mokpo

South Korea

Yard number

222

Hull material

Steel higher tensile

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN B&W 8K80MC-C - 2 stroke 8 cylinder 800 x 2.300 mm diesel engine 25.037 kW at 104 rpm

Built: 1995

Manufacturer: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1x Solid propeller (keyless) - aft at 104 rpm

Diameter: 7,30 m

Boilers

1x Steam boiler, oil fired - 8,8 bar
Heating surface: 33,6 m²
1x Steam boiler, exhaust gas heated - 10,8 bar
Heating surface: 570,0 m²

Year of Manufacture: 1995

Manufacturer: KangRim Industries Co., Ltd. (1st Factory)

Electric installations

1x Plant 440/220 V - 1.875 kVA

1x Plant 440/220 V - 1.875 kVA

1x Plant 440/220 V - 1.875 kVA

1x Plant 440 V - 190 kVA

Generators

3x Hyundai B&W 8L28/32H main diesel generatorsets each 1.875 kW

Emergency generator

1x Cummins NT743G diesel generatorset 190 kVA

Compressed air receivers

2x Receivers each 9.000 litres - 30,0 bar
1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster Brunvoll 1.323 kW

Hold capacity

Grain: 55.484 m³

Tank capacities

Ballast: 12.196,6 m³

Fuel oil: 3.376 m³

Diesel oil: 560 m³

Anchor equipment

3x Anchors weight each 9.900 kg

Length: 660,00 m

Diameter: 78 mm

Cargo gear

Gearless

Manager

E.R. Schiffahrt GmbH & Co., KG
Hamburg
Germany

Owner

MS 'E.R. Albany' Schiffahrtsgesellschaft mbH & Co.KG
Hamburg
Germany

Previous owners

ER Albany Schiffahrts Registered owner since 01.03.2002

ER Schiffahrt GmbH & Cie KG Ship manager since 01.03.2002

ER Schiffahrt GmbH & Cie KG ISM Manager since 10.12.2002

Renamed

2013 MSC Sena - Republic of Panama, Panama City - Call sign: 3FVE5

2016 MSC Sena - Liberia, Monrovia - Call sign: D5LQ7

Latest data adjustment

10 February 2017
