Name |

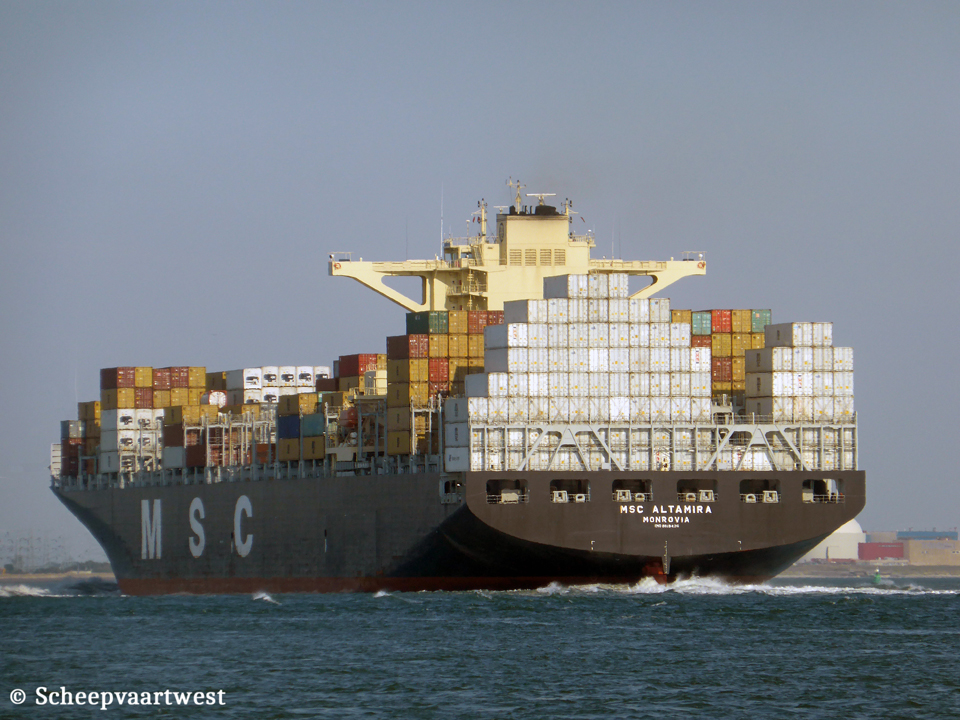

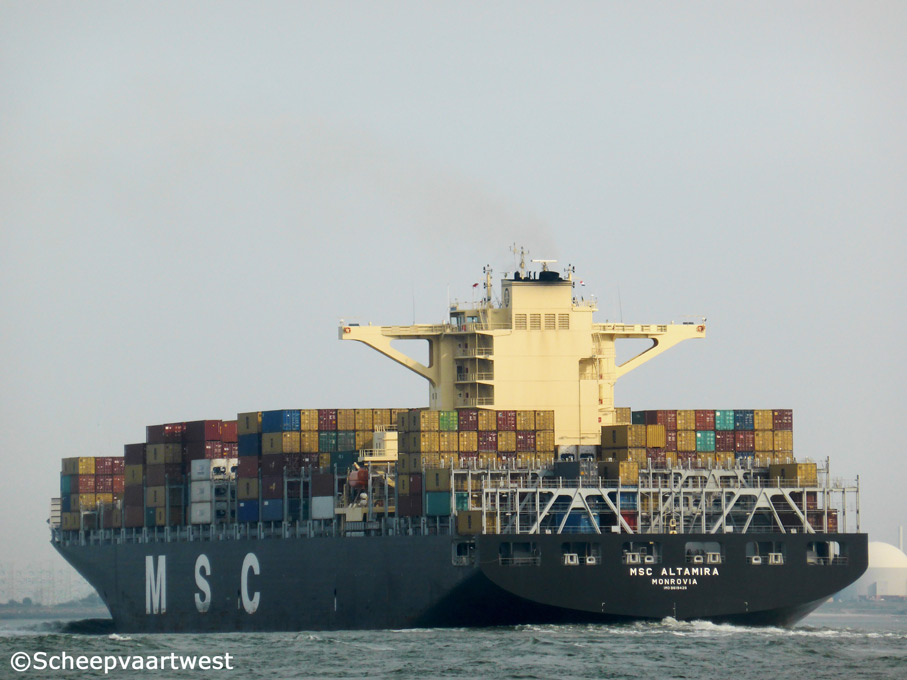

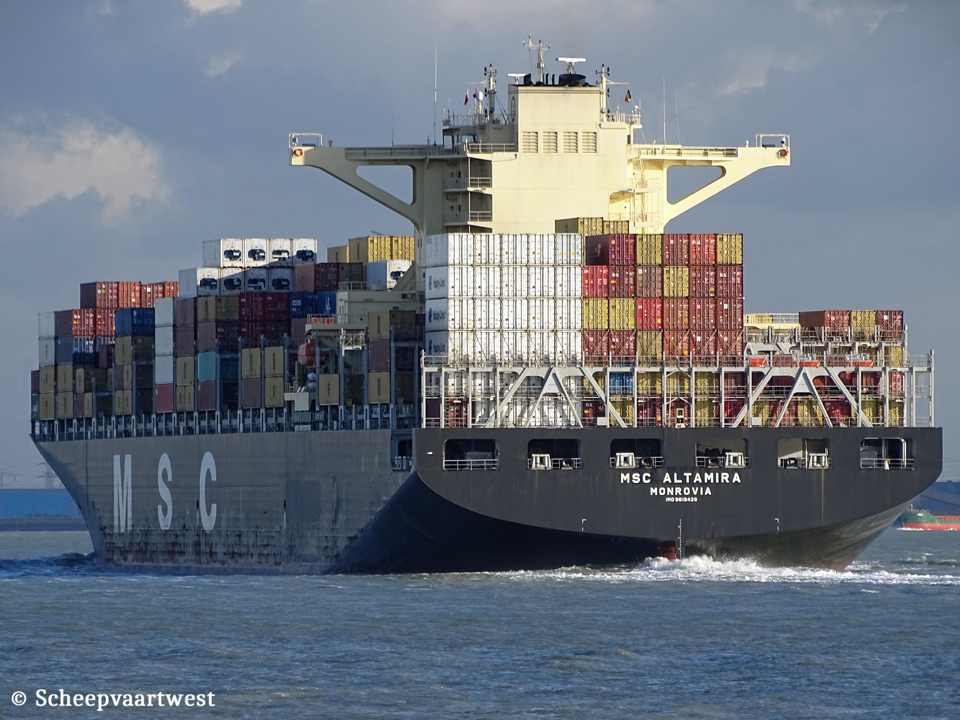

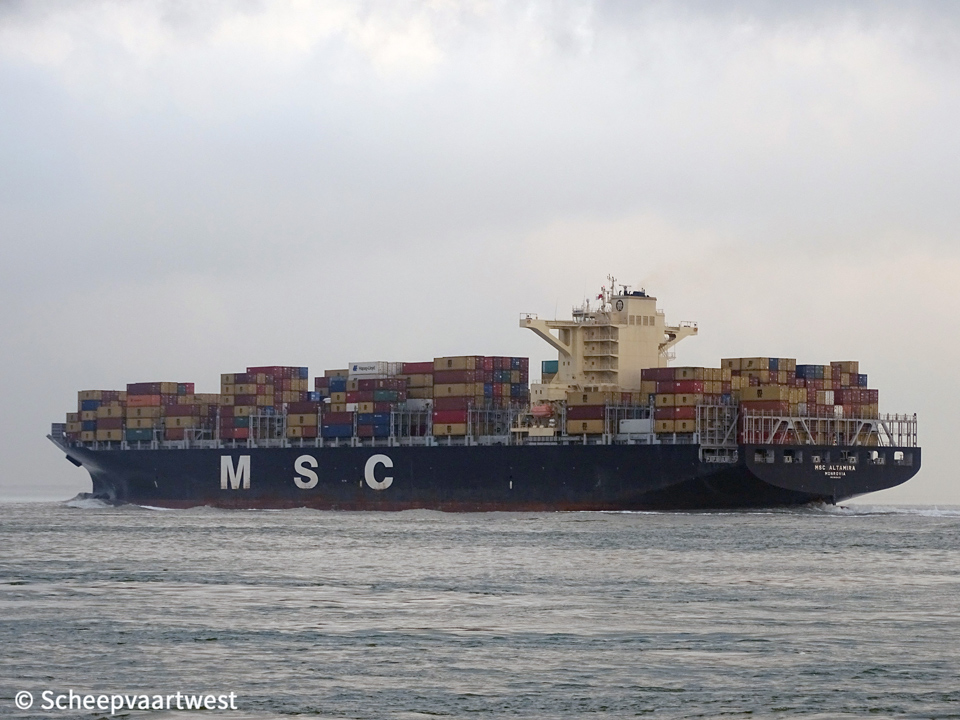

MSC ALTAMIRA |
|
Type |
Cellular containership |
|
IMO-number |
9619426 |
|
Call sign |
D5CC7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
94.017 t |
|
DWT |
Summer: 112.516 t |
|
NT |
51.548 t |
|
Number of 20ft containers |
8.900 |
|
Reefer capacity |
1.000 |
|
Length |
299,00 m overall |
|
Breadth |
48,20 m |
|
Draught |
14,52 m |
|
Reg. dimensions L x B x D |
286,67 x 48,20 x 21,01 m |
|
Rule dimensions L x B x D |
280,28 x 48,20 x 24,80 m |
|
Freeboard |
Summer: 5.656 mm |
|
Depth |
21,01 m registered |
|
Speed |
22,0 knots |
|
Built |
2012 |
|
Keel laid |
21/05/2012 |
|
Launch date |
27/07/2012 |
|
Date of completion |
24/09/2012 |
|
Builder |
Hyundai Samho Heavy Industries Co. Ltd. Mokpo South Korea |
|
Yard number |
S-592 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hyundai 9S90ME-C8.2 - 2 stroke single acting 9 cylinder 900 x 3.188 mm combustion engine 47.430 kW at 78,0 rpm Built: 05/2012 Builder: Hyundai Heavy Ind. Engine & Machinery Division |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Boiler water tube boiler - 9,0 bar Heating surface: 60,7 m² 2x Economizer EGE - 12,0 bar Heating surface: 767 m² Built: 04/2012 |
|
Generators |
4x Generators each 4.480 kVA - 6.600 Volt |
|
Number of hatchway |
8 Hatch 1: 25,25 x 43,34 m Hatch 2: 25,25 x 43,34 m Hatch 3: 25,25 x 43,34 m Hatch 4: 25,25 x 43,34 m Hatch 5: 25,25 x 43,34 m Hatch 6: 25,25 x 43,34 m Hatch 7: 25,25 x 43,34 m Hatch 8: 37,50 x 43,34 m |
|
Tank capacities |
Fuel oil: 9.047,3 m³ Fresh water: 525,8 m³ Water ballast: 28.465,4 m³ |
|
Cargo gear |
Gearless |
|
Manager |
ASM Maritime B.V. Strawinskylaan 1057, WTC, Tower D, Level 10 1077XX Amsterdam The Netherlands |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Sea 116 Leasing Co. Limited |
|
Latest data adjustment |
21 March 2020 |
