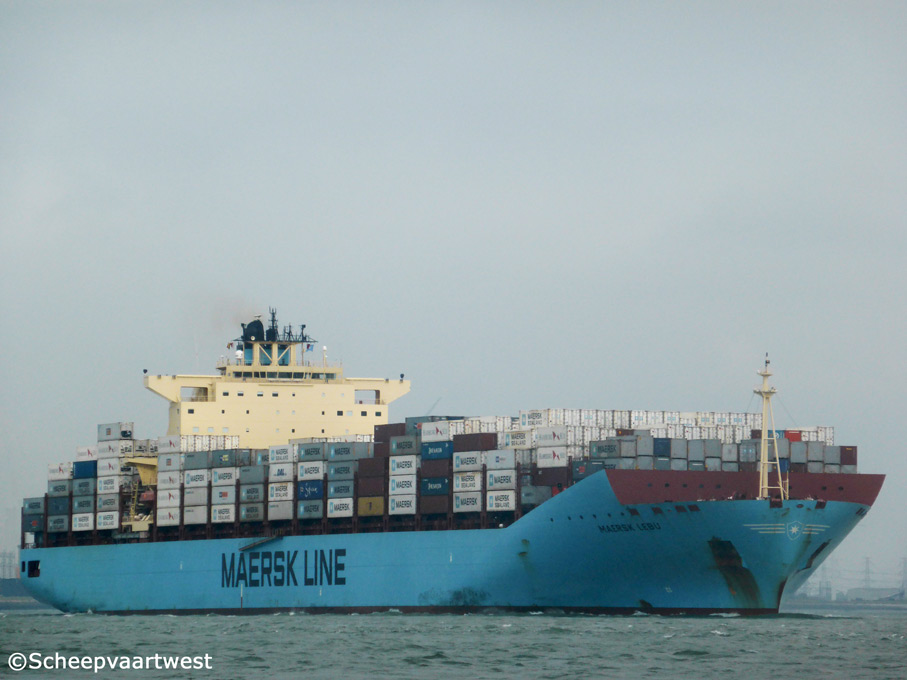

Maersk Lebu 01

Westerschelde 12 July 2014



Name

MAERSK LEBU

Type

Cellular containership

IMO-number

9526930

Call sign

VRJH7

Flag

Hong Kong Special Administrative Region of the People's Republic of China

Port of registry

Hong Kong

GT

88.237 t

DWT

Summer: 94.267 t

NT

48.524 t

Number of 20ft containers

7.450

Reefer capacity

1.707

Length

299,90 m overall

286,80 m between perpendiculars

Breadth

45,20 m moulded

Draught

13,00 m

Depth

24,20 m

Speed

22,8 knots

Built

2011

Date of completion

11.2011

Builder

Daewoo Shipbuilding & Marine Engineering Co. Ltd.
Geoje
South Korea

Yard number

4220

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

13

Main engine

1x MAN - B&W 9S90ME-C Mk8 - 2 stroke single acting 9 cylinder 900 x 3.188 mm combustion engine - 45.739 kW / 62.188 hp at 78,0 rpm

Manufacturer : Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller - aft at 78,0 rpm

Manufacturer: Mecklenburger Metallguss GmbH

Generators

3x MAN-B&W 9L32/40CD diesel generatorsets each 4.500 kW

1x MAN-B&W 6L32/40CD diesel generatorset 2.800 kW

1x Turbo generator Mitsubishi ATD52CLN2 - 3.700 kW

Bow thruster

1x 2.300 kW

Number of tanks

Ballast: 27

Fuel oil: 12

Lubricating oil: 10

Fresh water: 6

Waste water: 4

Diesel oil: 4

Sludge: 3

Chain: 1

Tank capacities

Diesel Oil: 723.4 / 651.06 t

Freshwater: 522 m³

Fuel Oil: 9.082 m³ / 8.900,36 t

Lube Oil: 516,5 m³/ 464,85 t

Tank Ballast: 33.566,6 m³ / 34.405,765 t

Cargo gear

Gearlesss

Manager

AP Moller Maersk
Copenhagen
Denmark

Operator

Maersk

Owner

Maersk Line

Latest data adjustment

04 January 2015
