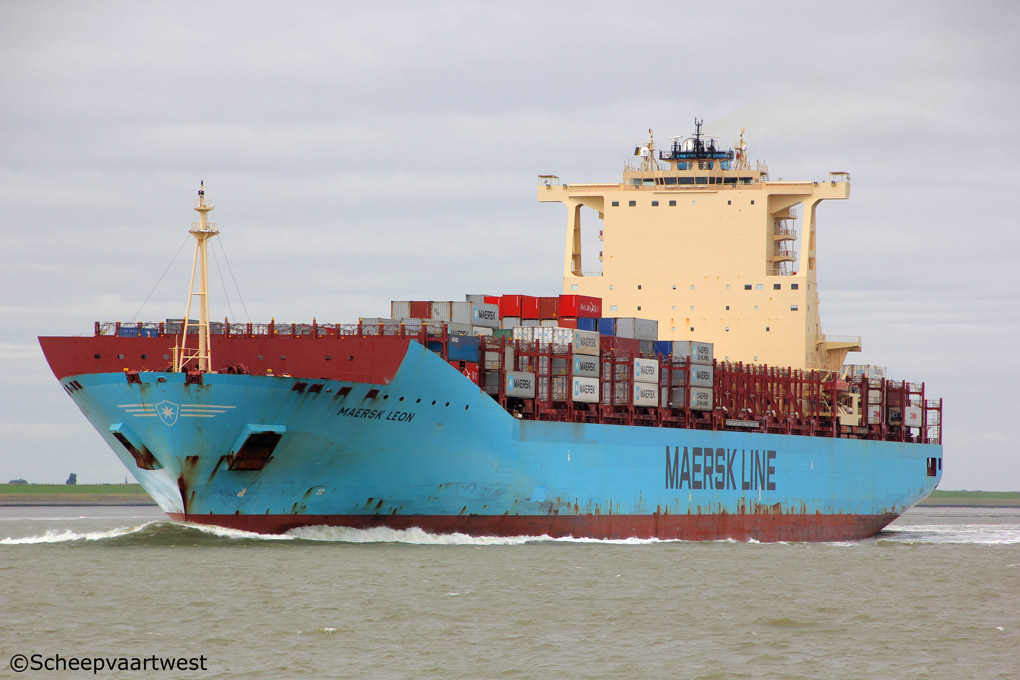

Maersk Leon 02

Westerschelde 7 August 2016

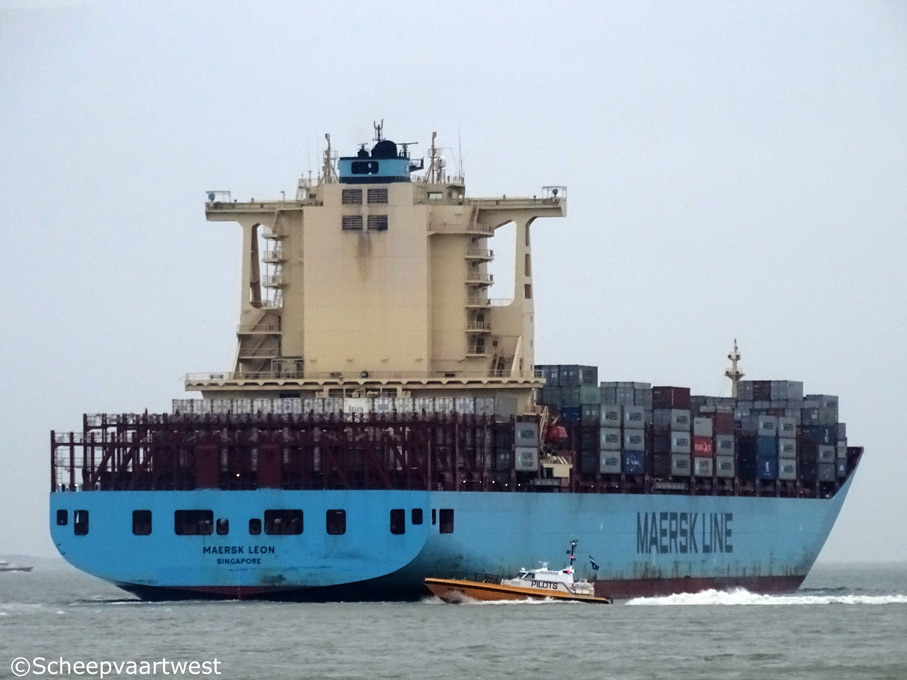

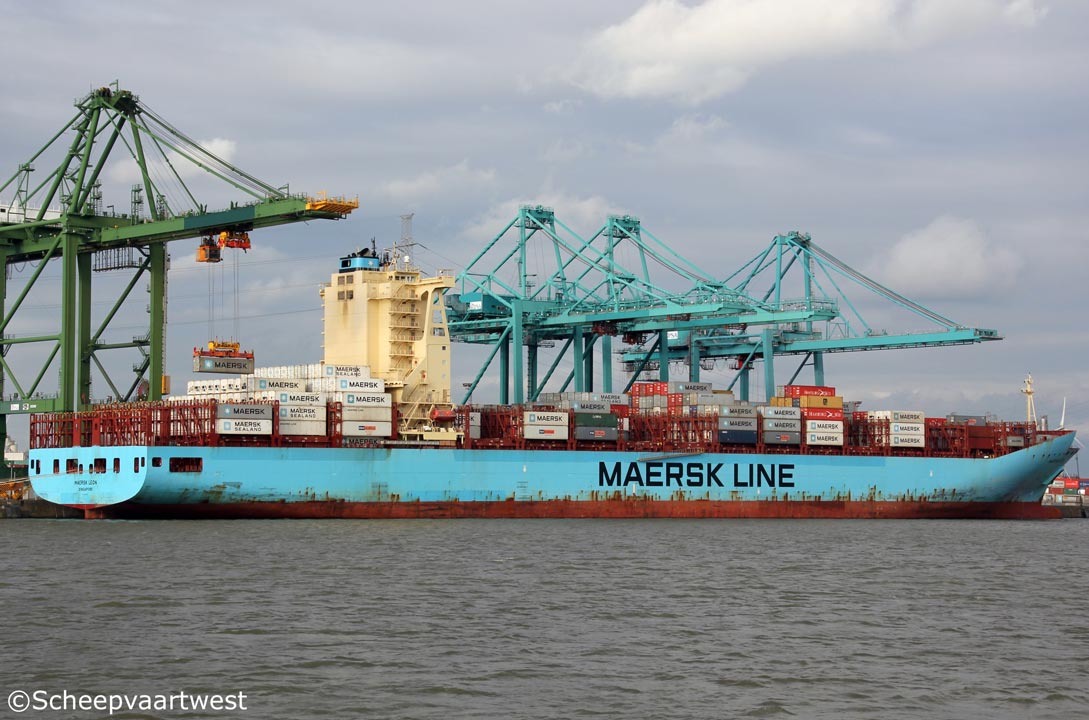

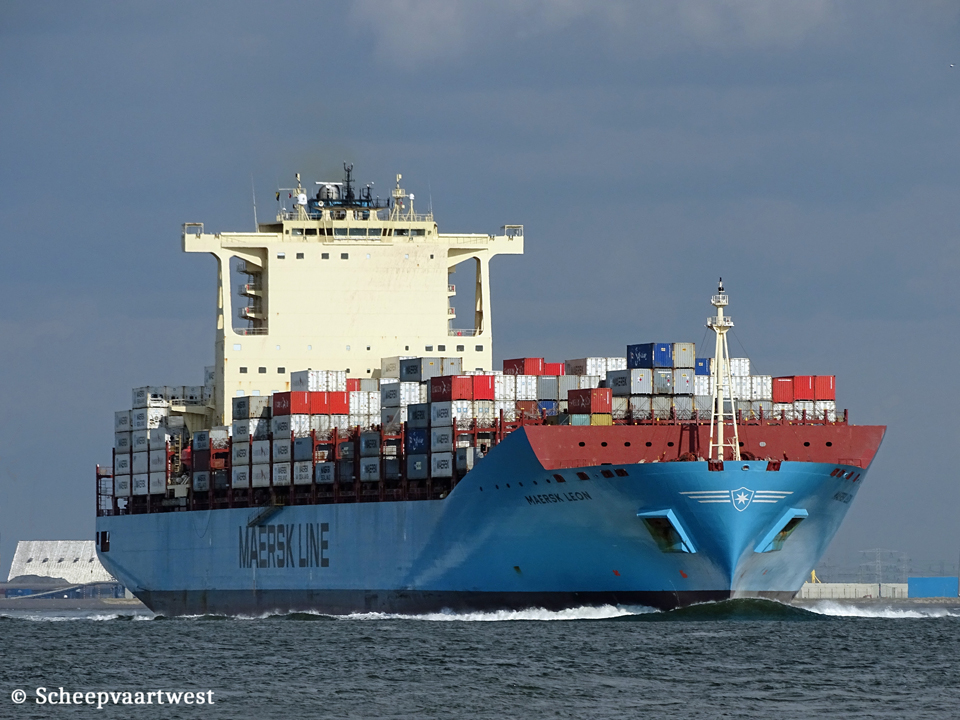

Maersk Leon 03   Maersk Leon 01   Maersk Leon IMO 9526966 04
Westerschelde 07/08/16 Westerschelde 27/12/15   Westerschelde 15/04/17


Name

MAERSK LEON

Type

Cellular containership - Carriage of dangerous goods, Refrigerated cargo

IMO-number

9526966

Call sign

OZGY2

Flag

Denmark

Port of registry

København

Previous flag

2012 - 2023 Republic of Singapore, Singapore City - Call sign: 9V9778

GT

89.505 t registered

Suez: 92.537,21 t

DWT

Summer: 99.858 t

NT

48.488 t registered

Suez: 81.118,53 t

Number of 20ft containers

8.850

Reefer capacity

1.707

Length

299,99 m overall

286,80 m between perpendiculars

Breadth

45,20 m moulded

Draught

Max.: 13,00 m

Freeboard

5.334 mm

Depth

24,20 m moulded

Speed

Max.: 22,5 knots

Built

2012

Keel laid

05/05/2011

Launch date

26/11/2011

Date of completion

06/03/2012

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

South Korea

Yard number

4223

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

13

Main engine

1x MAN-B&W/Doosan 9S90ME-C Mk8 - 9 cylinder 900 x 3.188 mm combustion engine 45.739 kW at 78,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

1x Unfired exhaust gas boiler Mission XW-TG - 10,0 bar

1x Fired boiler Mission OS TCI - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

1x Mitshubishi ATD52CLN2 turbine generator - 3.700 kW

3x MAN-B&W 9L32/40CD main diesel generatorsets each 4.300 KW

1x MAN-B&W 6L32/40CD main diesel generatorsets each 2.800 KW

Manufacturer: HHI Electro Electric System

Bow thruster

2.300 kW

Number of tanks

Ballast: 27

Fuel oil: 12

Lubricating oil: 10

Fresh water: 6

Waste water: 4

Diesel oil: 4

Sludge: 3

Chain: 1

Tank capacities 100%

Diesel Oil: 723,4 m³

Freshwater: 522 m³

Fuel Oil: 9.082 m³

Lube Oil: 516,5 m³

Tank Ballast: 33.566,6 m³

Lifting equipment

1x Engine room crane - SWL 12,6 t (2x 6,3 t Double Jib engine room crane)

Manufacture: Danish Crane Building

1x Monorail Crane - SWL 12,5 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Cargo gear

Gearless

Manager

Maersk Line A/S

Esplanaden 50

DK-1098 København K

Denmark

Operator

Maersk Line

Registered owner

Maersk A/S

Esplanaden 50

1263 København K

Denmark

Previous owner

A.P. Moller Singapore Pte Ltd.

Latest data adjustment

17 July 2023
