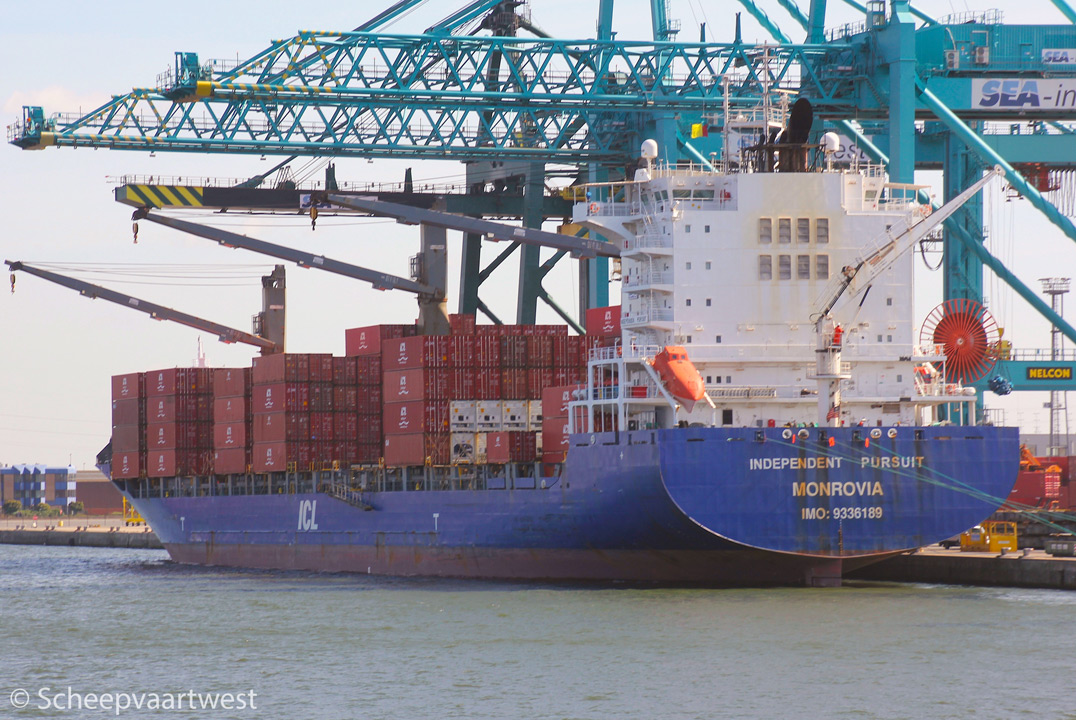

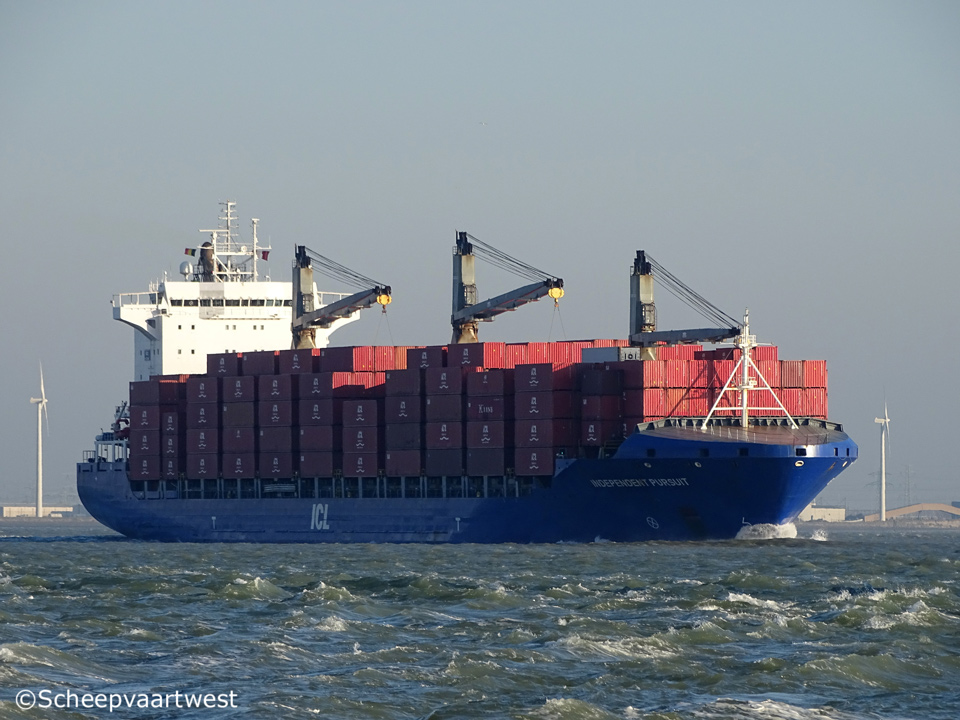

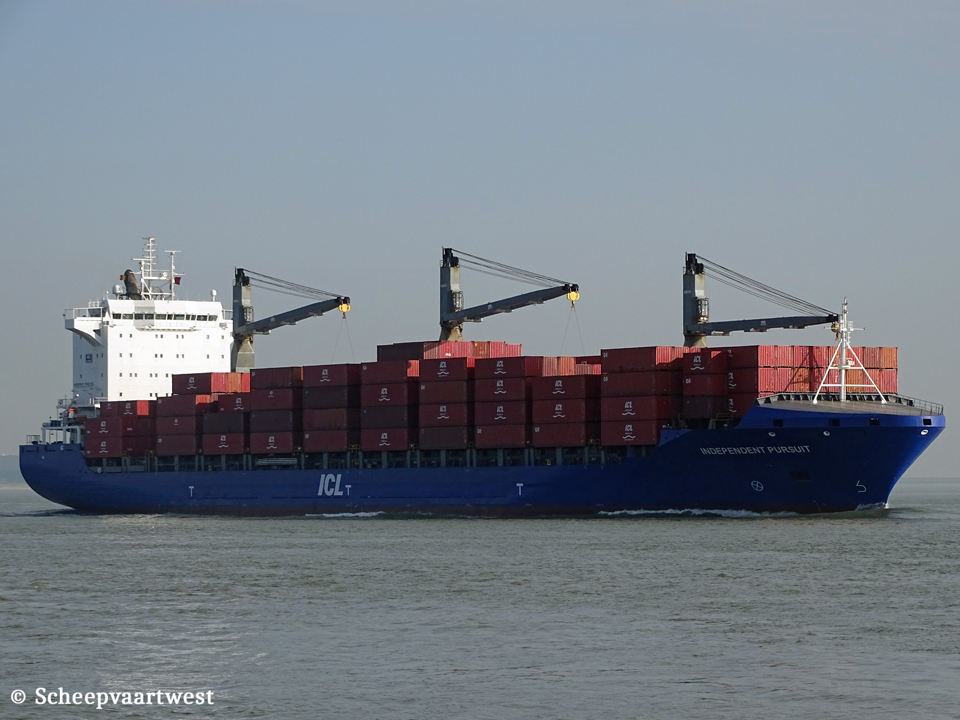

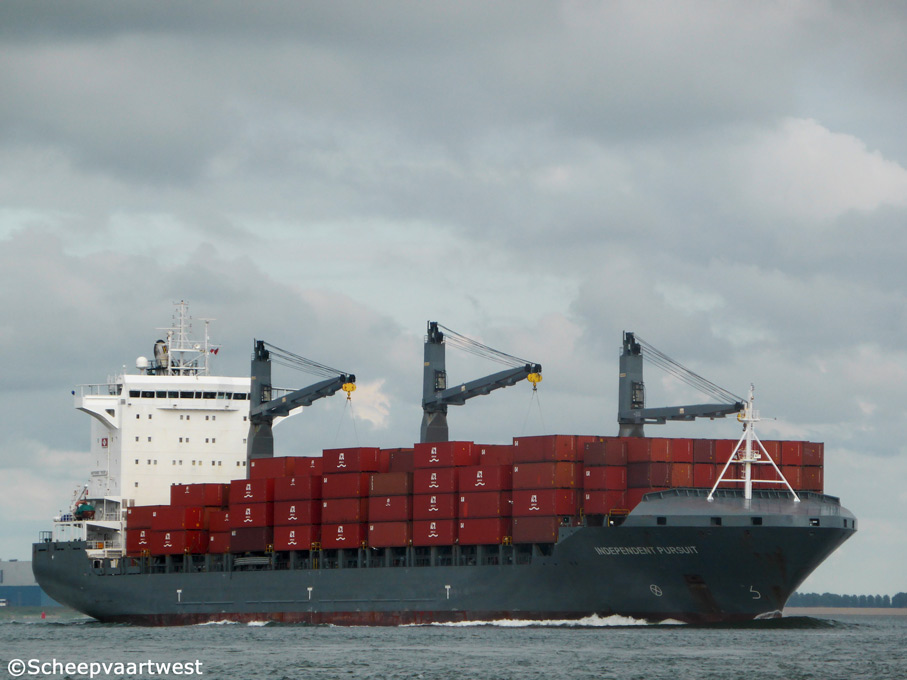

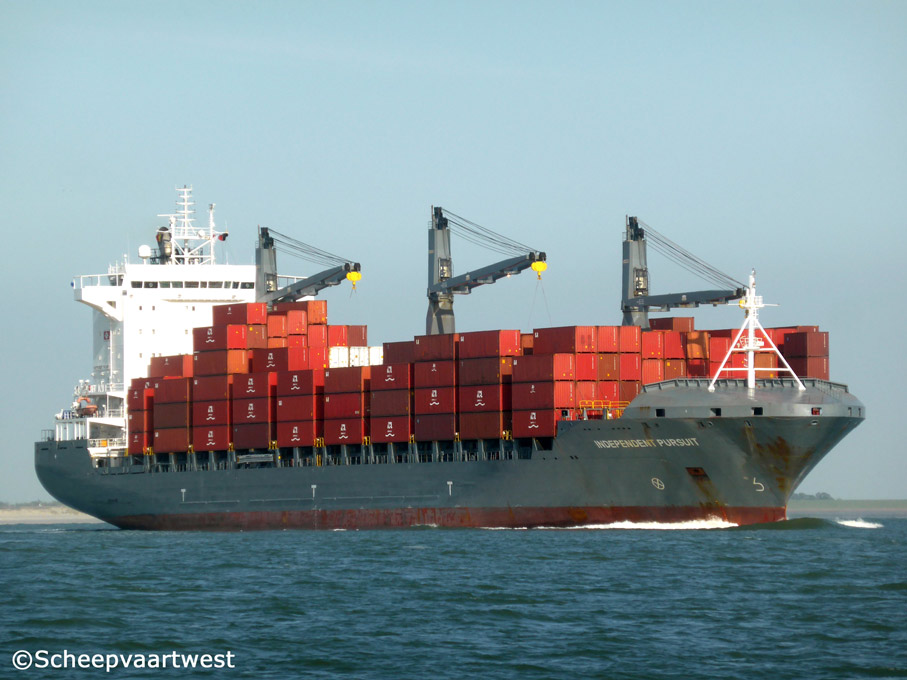

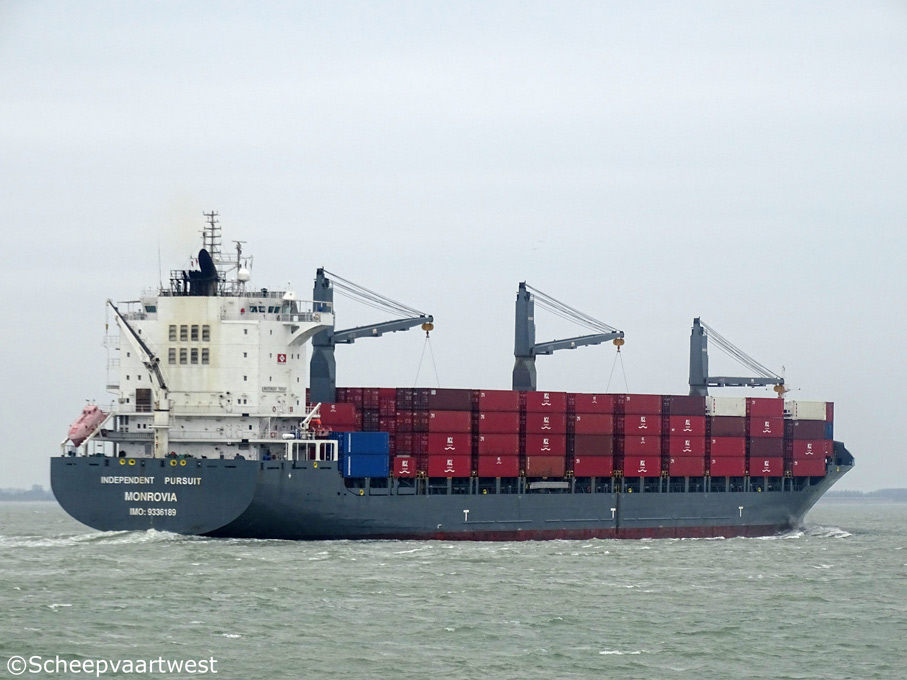

Westerschelde 22 November 2017 |
 |
 |
 |
 |
|||
| Westerschelde 18/06/14 | Westerschelde 27/05/15 | Westerschelde 11/11/15 | Antwerpen 11/09/18 |
|
Name |
INDEPENDENT PURSUIT |
|
Previous names |
2007 - 07/2011 Hammonia Fortuna |
|
Type |
Cellular containership |
|
IMO-number |
9336189 |
|
Call sign |
A8MB5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
26.435 t |
|
DWT |
34.281,8 t |
|
NT |
12.990 t |
|
Number of 20ft containers |
2.546 |
|
Container capacity 14t |
1.908 |
|
Reefer capacity |
536 |
|
Length |
208,90 m overall 198,12 m registered |
|
Breadth |
29,80 m registered |
|
Draught |
11,60 m |
|
Forecastle |
24,98 m |
|
Poop |
16,59 m |
|
Depth |
16,40 m moulded |
|
Speed |
22,0 knots |
|
Built |
2007 |
|
Keel laid |
11/10/2006 |
|
Launch date |
19/01/2007 |
|
Date of completion |
06/06/2007 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co., Ltd. |
|
Yard number |
YZJ2004-682C |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6K80ME-C - 2 stroke 6 cylinder 800 x 2.300 mm diesel engine - 21.660 kW at 104,0 rpm Year of manufacture: 2007 Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 28,6 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 390,7 m² Year of manufacture: 2006 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
1x Plant 450/ 230 V - 1.200 kVA 3x Plants each 450/ 230 V - 2.260 kVA 1x Plant 450 V with 237,5 kVA 2x Plants each 24 V - 100 Ah 2x Plants each 24 V - 150 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
3x 6M25 main diesel generatorsets each 2.260 kVA 1x 6M20 main diesel generatorset 1.200 kVA |
|
Emergency generator |
1x D2866 TE diesel generatorset 237,05 kVA |
|
Batteries |
2x Batteries for UPS navigation each 200 Ah 2x Batteries for UPS radio each 100 Ah |
|
Compressed air receivers |
2x Receivers each 8.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar |
|
Bow thruster |
1x 1.100 kW |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 687,50 m Diameter: 76 mm |
|
Cargo gear |
3x Cranes - SWL 45,0 t |
|
Crew size |
30 |
|
Manager |
Norddeutsche Reederei H. Schuldt GmbH & Co. KG |
|
Previous managers |
2007 - 2007 Peter Döhle Schiffahrts-KG 2007 - 2011 Hammonia Reederei GmbH & Co. KG, Hamburg - Germany |
|
Owner |
Zweite Beteiligungs-KG TIM Shipping mbH & Co. |
|
Previous owners |
2007 - 2012 "HAMMONIA V" Schiffahrts GmbH & Co. KG 2012 - 2015 MS "HAMMONIA FORTUNA" Schifffahrts GmbH & Co. KG, Hamburg - Germany |
|
Latest data adjustment |
05 April 2018 |
