Independent Spirit 01

Westerschelde 07 October 2015

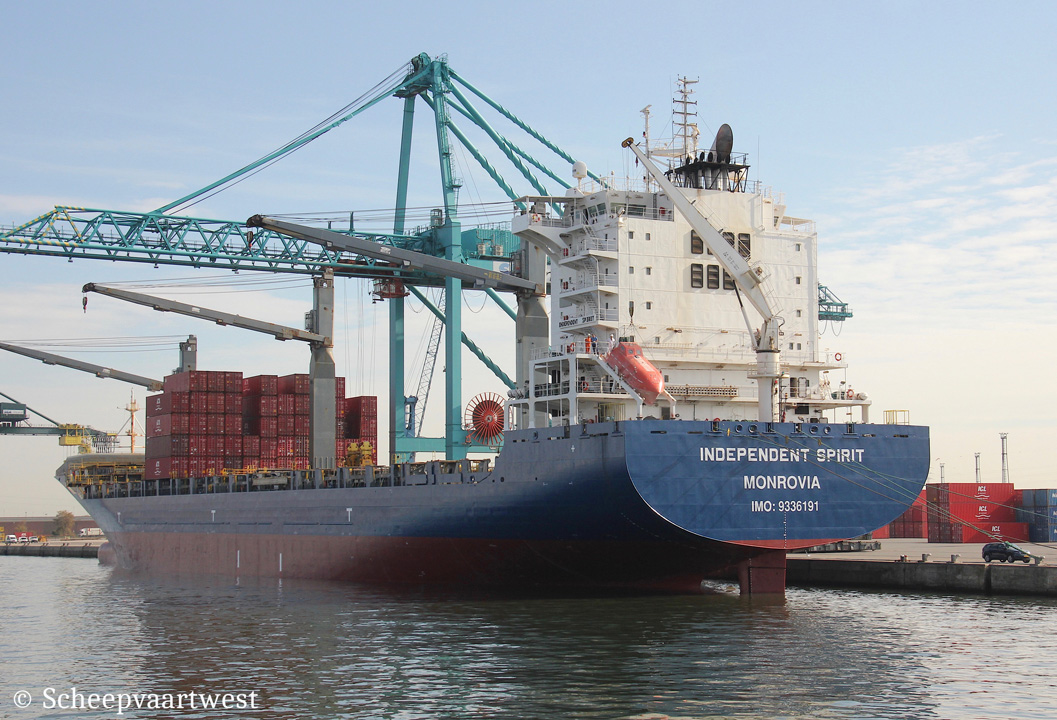

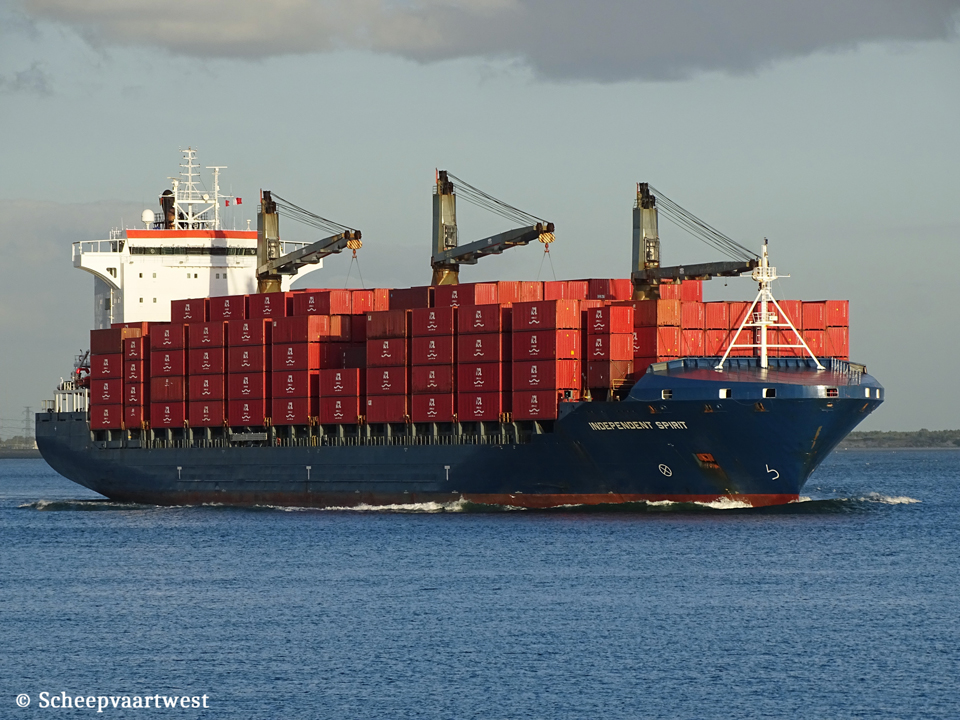

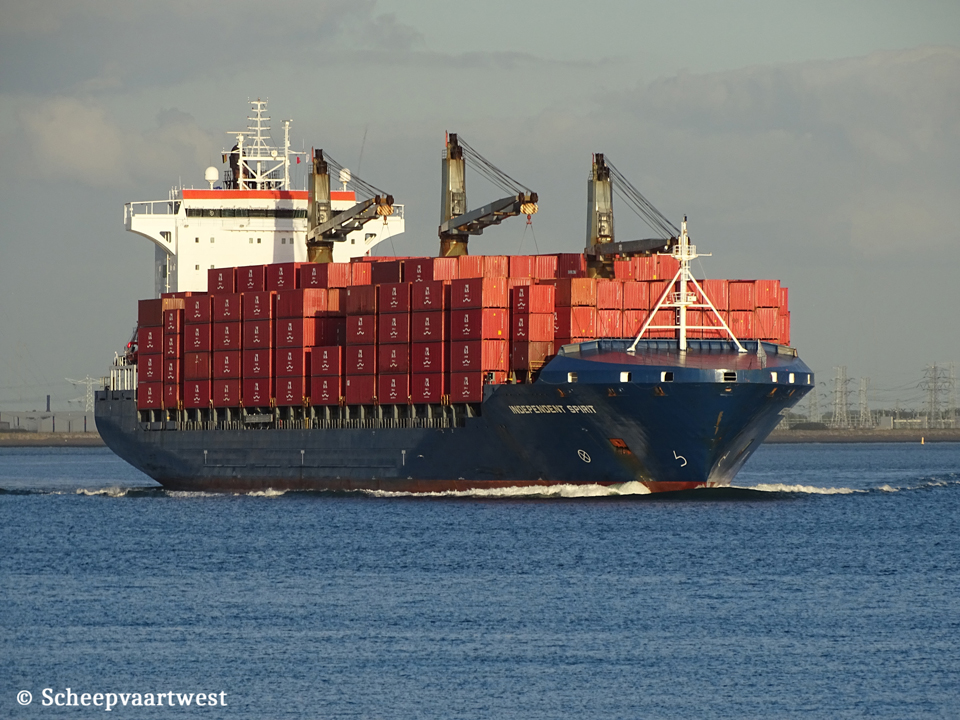

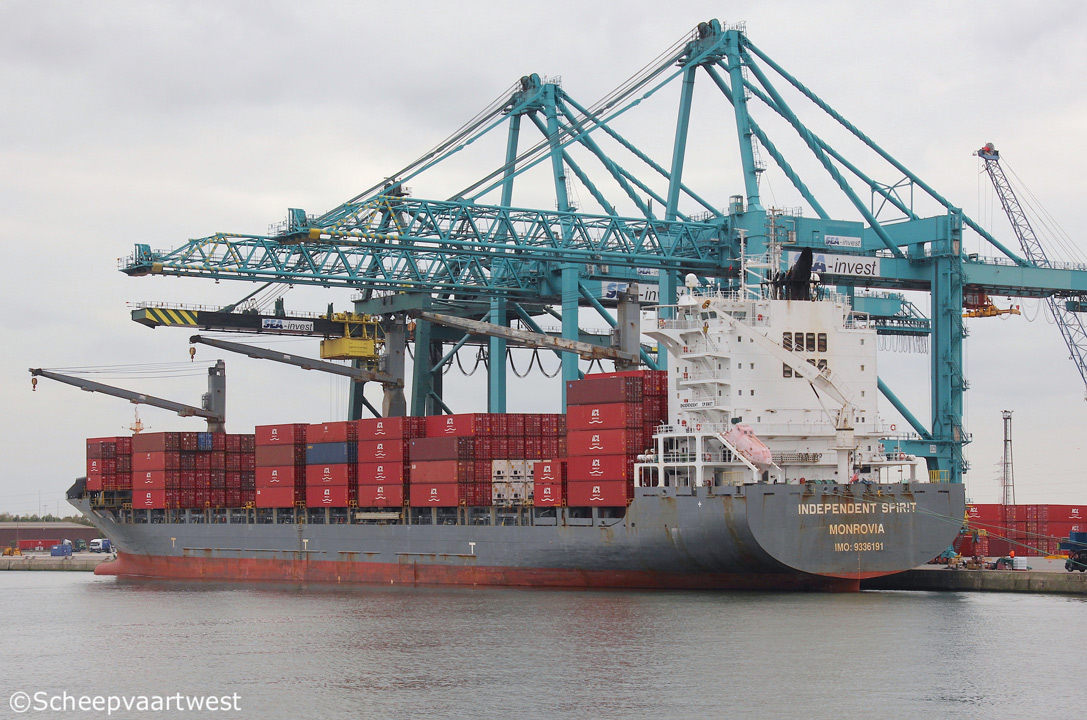

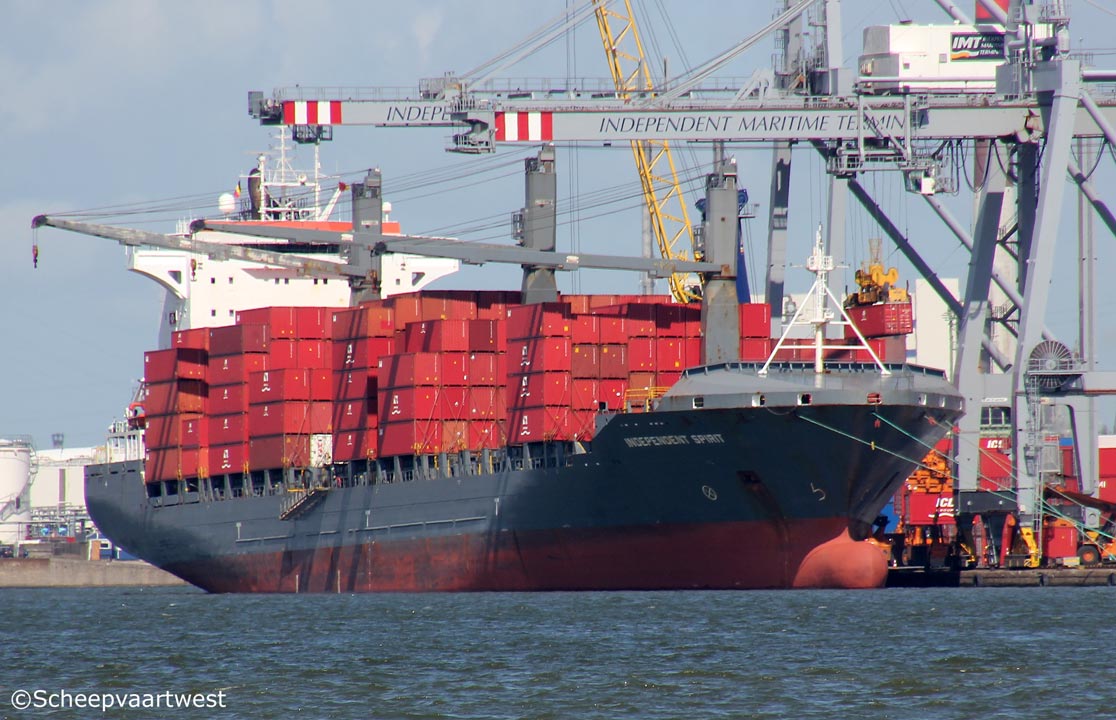

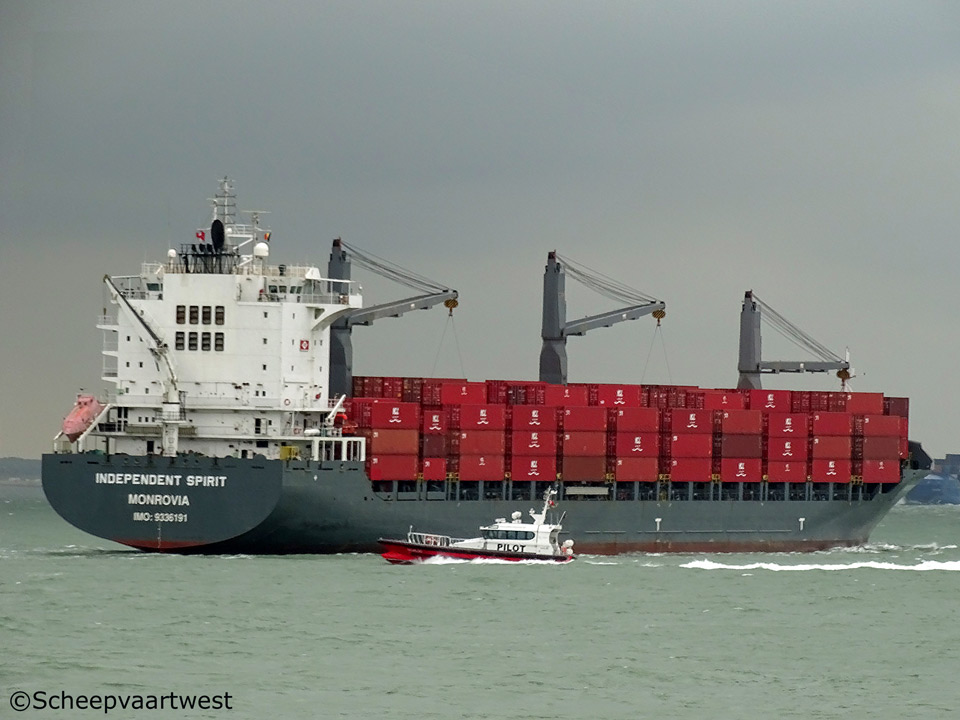

Independent Spirit 02   Independent Spirit 03   Independent Spirit 04   Independent Spirit 05   Independent Spirit IMO 9336191 07   Independent Spirit IMO 9336191 06
Westerschelde 07/10/15 Antwerpen 03/05/16 Antwerpen 28/08/18 Antwerpen 16/10/18   Westerschelde 18/09/19   Westerschelde 18/09/19

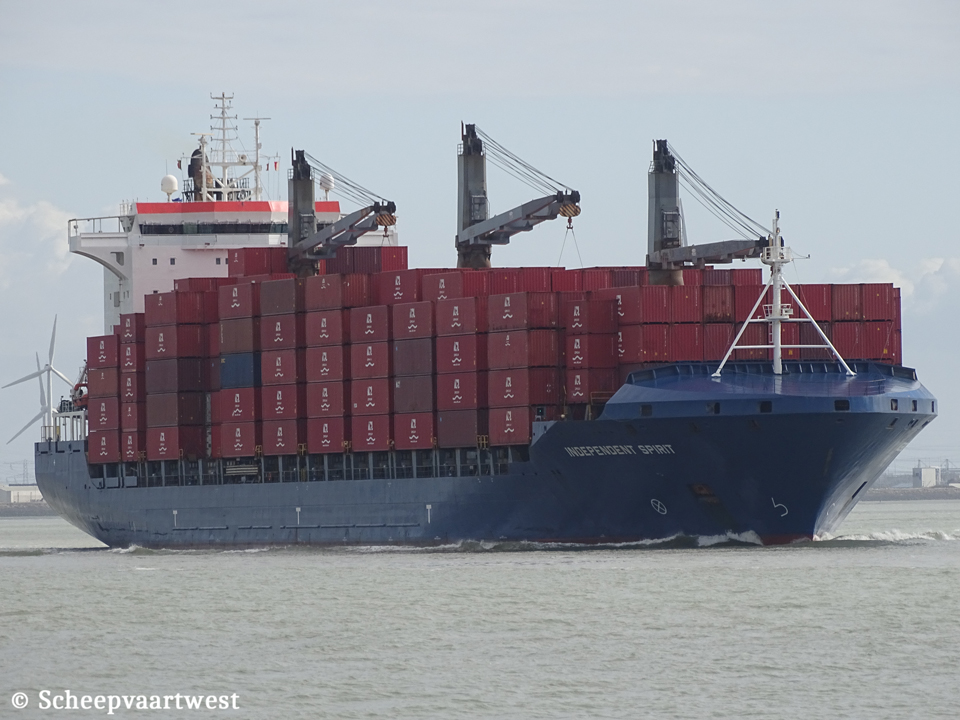

Independent Spirit IMO 9336191 08
Westerschelde 08/03/19


Name

INDEPENDENT SPIRIT

Previous names

2009 - 2015 Hammonia Pacficum

Type

Cellular containership

IMO-number

9336191

Call sign

DACF

Flag

Germany

Port of registry

Hamburg

Previous flag

2007 - 2019 Liberia, Monrovia - Call sign: A8MM3

GT

26.435 t

DWT

Summer: 34.241,5 t

NT

12.990 t

Number of 20ft containers

2.546

Container capacity 14t

1.900

Reefer capacity

536

Length

208,93 m overall

196,90 m between perpendiculars

Breadth

30,08 m extreme

29,80 m moulded

Draught

11,60 m

Keel to mast end

58,32 m

Forecastle

24,98 m

Poop

16,59 m

Depth

16,40 m

Speed

Max.: 22,0 knots

Built

2007

Keel laid

20/01/2007

Launch date

02/05/2007

Date of completion

29/08/2007

Builder

Jiangsu Yangzijiang Shipyard Co., Ltd.

China

Yard number

YZJ2004-683C

Hull material

Steel - Hull structural members are partly made of higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 6K80ME-C - 2 stroke 6 cylinder 800 x 2.300 mm combustion engine 21.600 kW at 104,0 rpm

Year of manufacture: 2007

Manufacturer: Hudong Heavy Machinery Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,00 bat

Heating Surface: 28,6 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating Surface: 390,7 m²

Year of manufacture: 2006

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)

Electric installations

1x Plant 450 V - 1.200 kVA

1x Plant 450 V - 2.260 kVA

1x Plant 450 V - 2.260 kVA

1x Plant 450 V - 2.260 kVA

1x Plant 450 V - 237,5 kVA

1x Plant 24 V - 100 Ah

1x Plant 24 V - 150 Ah

1x Plant 24 V - 200 Ah

Generators

3x MaK 6M25 main diesel generatorsets each 1.808 kW / 2.260 kVA

1x MaK 6M20 diesel generatorset 960 kW / 1.200 kVA

Emergency generator

1x MAN D2866TE diesel generatorset 237,5 kVA

Batteries

2x Batteries for UPS navigation each 200 Ah

2x Batteries for UPS radio each 100 Ah

Compressed air receivers

2x Receivers each 8.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster 1.100 kW, forward

Tank capacities

Ballast: 95.428 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Length: 687,50 m

Diameter: 76 mm

Cargo gear

3x Deck cranes - SWL 45,0 t each

Crew size

30

ISM & commercial manager

V.Ships (Hamburg) GmbH & Co. KG

Rolandsbruecke 4

20095 Hamburg

Germany

Registered owner

Elfte Beteiligungs-KG TIM Shipping mbH & Co.

Care of V Ships (Hamburg) GmbH & Co KG

Rolandsbruecke 4

20095 Hamburg

Germany

Latest data adjustment

05 August 2022
