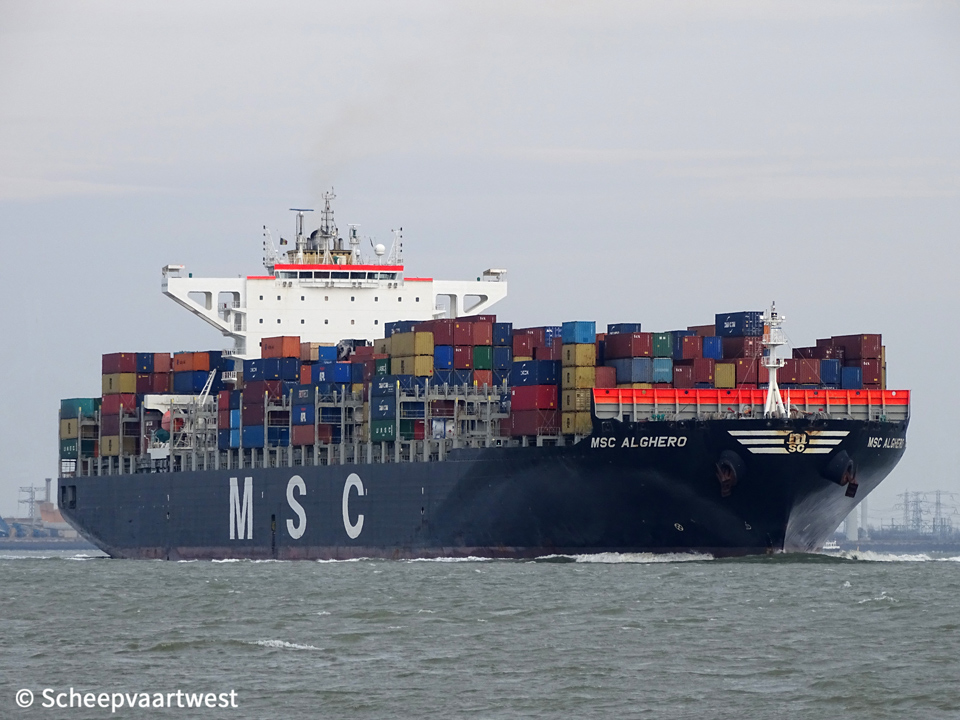

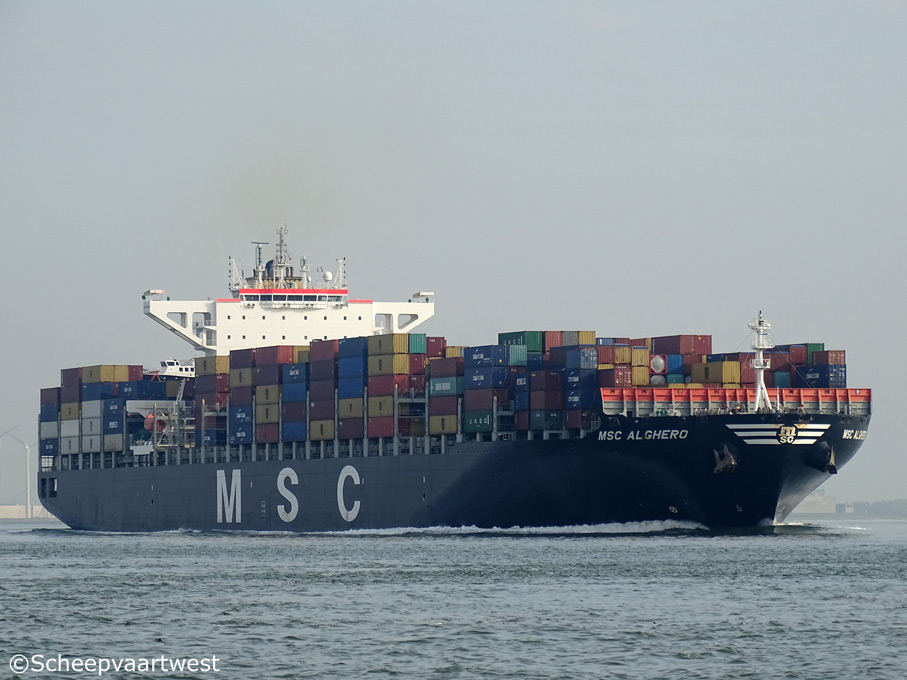

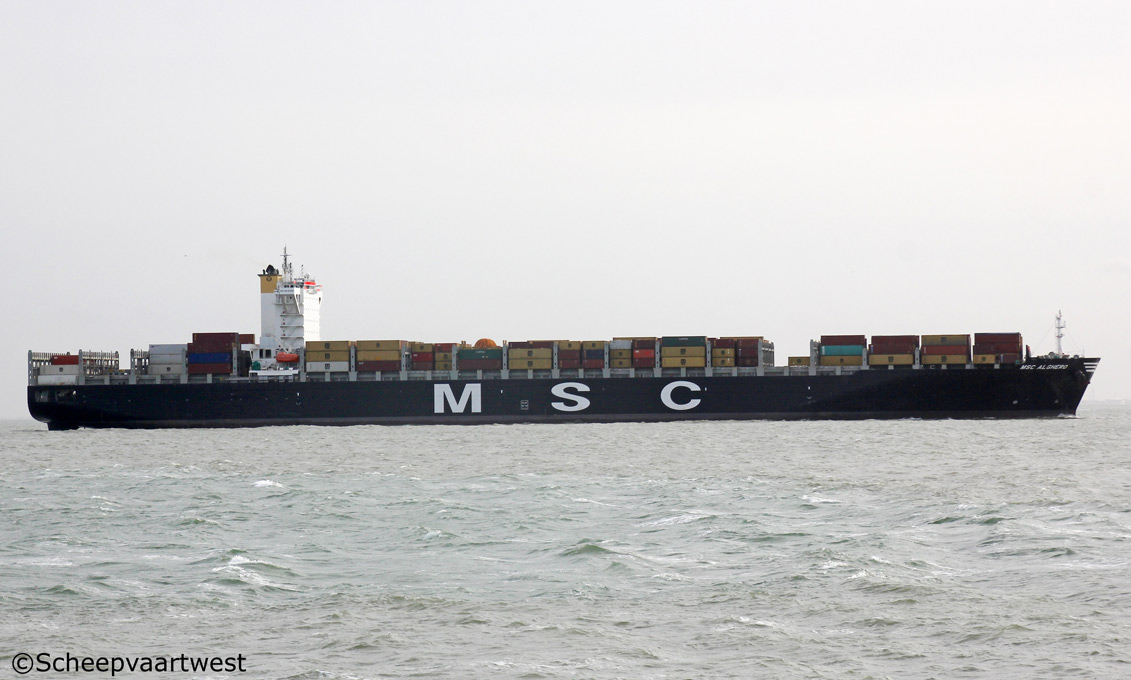

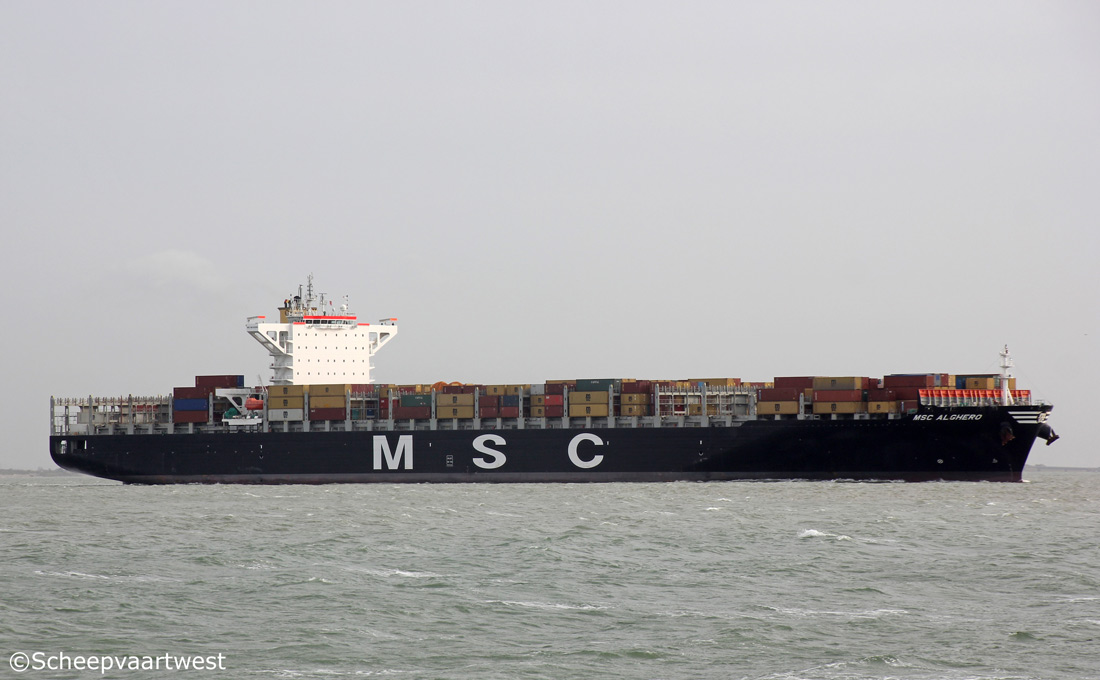

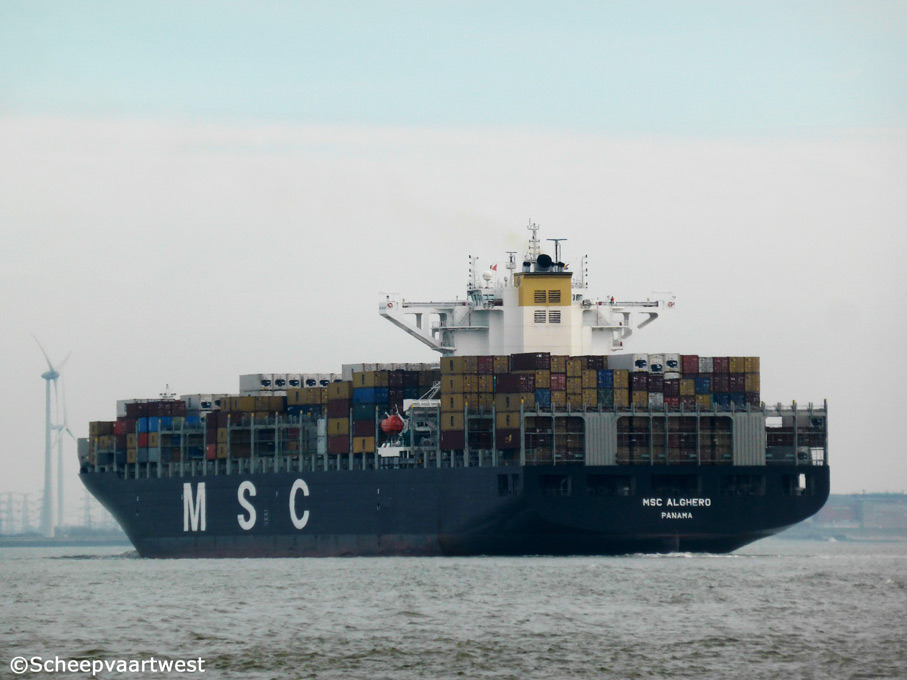

Westerschelde 30 October 2016 |
 |
 |
 |
 |
 |
||||
| Westerschelde 09/11/15 | Westerschelde 09/11/2015 | Westerschelde 07/03/15 | Westerschelde 07/11/15 | Westerschelde 18/03/18 | ||||
|
Name |
MSC ALGHERO |
|
Type |
Cellular containership |
|
IMO-number |
9618288 |
|
Call sign |
3EVX2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
95.390 t |
|
DWT |
Summer: 110.725 t |
|
NT |
56.260 t |
|
Number of 20ft containers |
8.827 |
|
Reefer capacity |
1.462 |
|
Length |
300,07 m overall 289,73 m registered |
|
Breadth |
48,20 m registered |
|
Draught |
14,50 m |
|
Depth |
24,60 m moulded |
|
Speed |
Max.: 22,0 knots |
|
Built |
2013 |
|
Keel laid |
20/02/2013 |
|
Launch date |
27/06/2013 |
|
Date of completion |
14/10/2013 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering Co., Ltd. 940, Gongdan-ro, Gwangdo-myeon Tongyeong-si Republic of Korea |
|
Yard number |
S4014 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/HHI 9S90ME-C8.2 - 2 stroke 9 cylinder 900 x 3.188 mm combustion engine 47.430 kW at 78,0 rpm Starter type: Compressed air direct Year of manufacture: 2013 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division 1000 Bangeojinsunhwan-doro Dong-gu Ulsan Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 78,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 47,1 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 392,0 m² Year of manufacture: 2013 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
2x Plants each 6.600 V - 5.146,7 kVA 2x Plants each 6600 V - 5.800 kVA 1x Plant 450 V - 625 kVA 1x Plant 7 V - 3 Ah 1x Plant 12 V - 2 Ah 1x Plant 12 V - 9 Ah 1x Plant 12 V - 17 Ah 2x Plants each 12 V - 20 Ah 1x Plant 12 V - 40 Ah 1x Plant 12 V - 100 Ah 1x Plant 24 V - 12 Ah 1x Plant 24 V - 65 Ah 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 200 Ah 1x Plant 24 V 300 Ah |
|
Generators |
2x Main diesel generatorsets each 5.800 kV / 4.640 kW 2x Main diesel generatorsets each 5.146,7 kVA / 4.117 kW |
|
Emergency + harbour gen. |
1x Diesel generatorset 625 kVA |
|
Batteries |
1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 2x Batteries for other purpose each 200 Ah 1x Battery for UPS navigation 100 Ah 1x Battery for other purpose 65 Ah 1x Battery for other purpose 40 Ah 2x Batteries for other purpose each 20 Ah 1x Battery for other purpose 17 Ah 1x Battery for other purpose 12 Ah 1x Battery for automation 9 Ah 1x Battery for other purpose 3 Ah 1x Battery for other purpose 2 Ah |
|
Compressed air receivers |
2x Receivers each 15.500 litres - 32,4 bar 1x Receiver 500 litres - 32,4 bar 1x Receiver 200 litres - 7,7 bar 1x Receiver 2.000 litres - 7,6 bar |
|
Bow thruster |
1x 3.000 kW |
|
Anchor equipment |
3x Anchors weight each 20.000 kg Chain length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
31 |
|
Manager |
MSC Shipmanagement Ltd. MSC House 8, Spyrou Kyprianou Avenue 3070 Limassol Republic of Cyprus |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Yepton Shipping Inc. 80, Broad Street 1000 Monrovia Republic of Liberia |
|
Latest data adjustment |
18 August 2018 |
