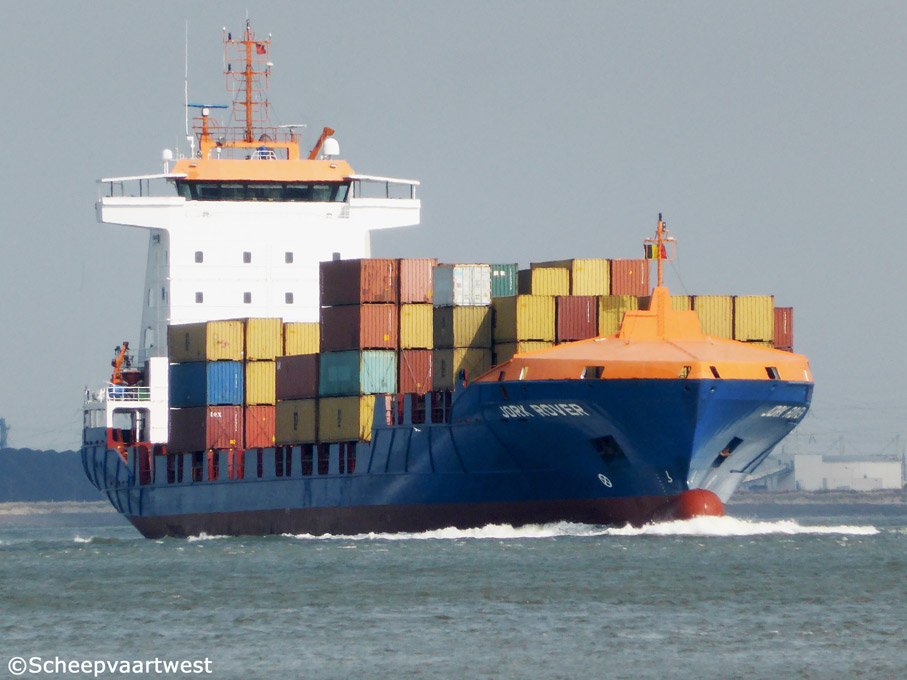

Westerschelde 22 April 2015 |
|
Name |
JORK ROVER |
|
Previous names |
2006 - 03.2011 Samskip Explorer |
|
Type |
Containership |
|
IMO-number |
9323467 |
|
Call sign |
V2CB4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
7.852 t registered |
|
DWT |
Summer: 9.342 t |
|
NT |
3.363 t registered |
|
Number of 20ft containers |
803 |
|
Container capacity 14t |
518 |
|
Reefer capacity |
120 |
|
Length |
140,56 m overall 130,68 m registered |
|
Breadth |
21,79 m moulded |
|
Draught |
7,33 m |
|
Forecastle |
37,92 m |
|
Poop |
9,60 m |
|
Depth |
9,50 m moulded |
|
Speed |
18,5 knots |
|
Built |
2006 |
|
Keel laid |
21.10.2004 |
|
Launch date |
16.12.2005 |
|
Date of completion |
16.08.2006 |
|
Builder casco |
Santierul Naval Damen Galati S.A. Yard number: 858 |
|
Builder completion |
Damen Hoogezand Scheepswerf B.V. The Netherlands |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm diesel engine 8.400 kW at 500 rpm Year of manufacture: 2006 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 126,0 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 28,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Aalborg B.V. |
|
Electric installations |
1x Plant 440 V - 2.000 kVA 1x Plant 440 V - 123,8 kVA 2x Plants each 24 V - 180 Ah 2x Plants each 24 V - 180 Ah 2x Plants each 24 V - 200 Ah 4x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 2000 kVA / 1.600 kW |
|
Generators |
2x Scania DI-16 44M diesel generatorsets each 530 kVA |
|
Emergency generator |
1x Diesel generatorset 123,8 kVA |
|
Batteries |
2x Batteries for UPS navigation each 200 Ah 4x Batteries for UPS radio each 200 Ah 2x Batteries for start emergency engine each 180 Ah 2x Batteries for diesel control each 180 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster 700 kW, forward 1x Transverse thruster 500 kW, aft |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
15 |
|
Manager |
Bernd Becker Shipmanagement GmbH & Co. KG |
|
Registered owner |
MS "JORK ROVER" Bernd Becker GmbH & Co. KG |
|
Latest data adjustment |
28 May 2015 |
