Westerschelde 30 May 2015 |
 |
|
| Westerschelde 13/06/15 | |
|
Name |

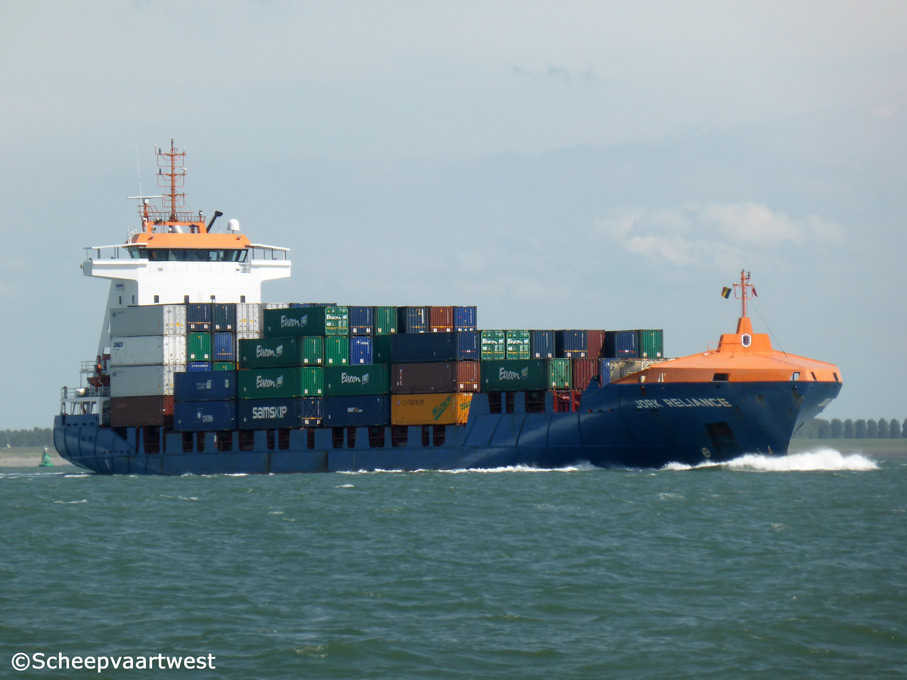

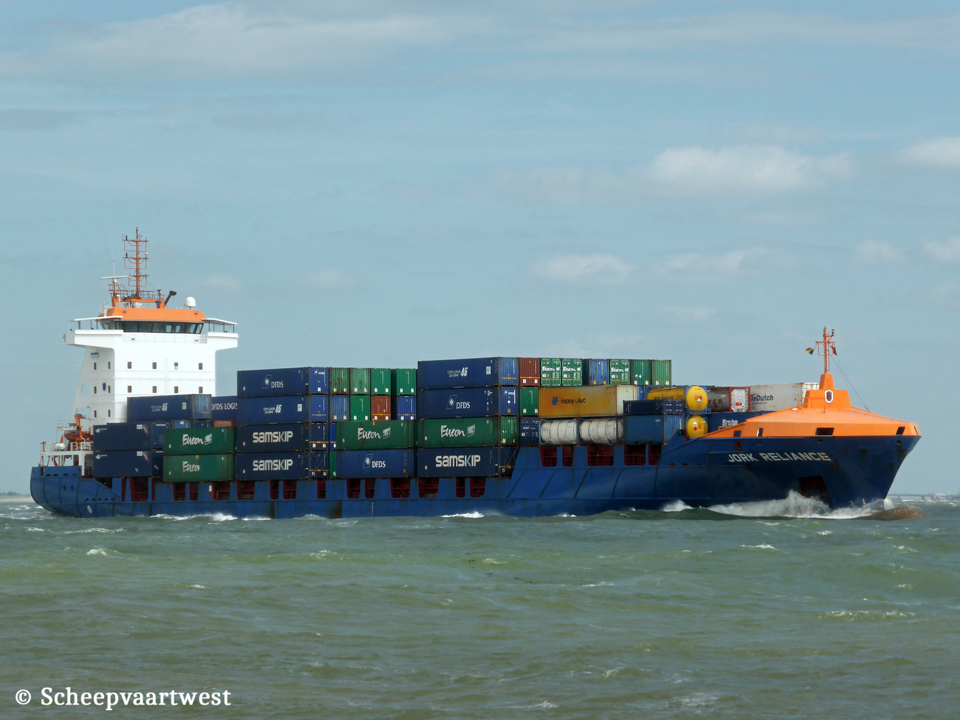

JORK RELIANCE |
|
Type |
Containership - Feeder |
|
IMO-number |
9328041 |
|
Call sign |
V2CL2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
7.852 t |
|
DWT |
Summer: 9.344 t |
|
NT |
3.363 t |
|
Number of 20ft containers |
803 |
|
Container capacity 14t |
518 |
|
Reefer capacity |
120 |
|
Length |
140,60 m overall 130,00 m between perpendiculars |
|
Breadth |
21,80 m moulded |
|
Draught |
7,33 m |
|
Forecastle |
37,92 m |
|
Poop |
9,60 m |
|
Depth |
9,50 m moulded |
|
Speed |
18,5 knots |
|
Built |
2007 |
|
Keel laid |
29/11/2004 |
|
Launch date |
19/09/2006 |
|
Date of completion |
30/03/2007 |
|
Builder casco |
Santierul Naval Damen Galati S.A. Strada Moruzzi Alexandru 132 800223 Galati Romania |
|
Builder completion |
Damen Hoogezand Scheepswerf B.V. Foxtol The Netherlands |
|
Yard number |
862 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.420 hp at 500 rpm Year of manufacture: 2006 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 126,0 m² 1x Thermal oil heater, oil fired -13,0 bar Heating surface: 28,0 m² Year of manufacture: 2006 Manufacturer: Alfa Laval Aalborg B.V. Ohmweg 8 3208 KE Spijkenisse The Netherlands |
|
Electric installations |
2x Plants each 440/230 V - 530 kVA 1x Plant 440 V with 2.000 kVA 1x Plant 440 V with 130 kVA 2x Plants each 24 V - 150 Ah 2x Plants each 24 V - 200 Ah 4x Plants each 24 V - 200 Ah 2x Plants each 24 V - 250 Ah |
|
Shaft generator |
1x 2.000 kVA |
|
Generators |
2x Scania DI-16 44M main diesel generatorsets each 530 kVA |
|
Emergency generator |
1x Diesel generatorset 130 kVA |
|
Batteries |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster 700 kW, forward 1x Transverse thruster 500 kW, aft |
|
Tank capacities |
Ballast: 4.597,8 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 555,00 m Diameter: 54 mm |
|
Cargo gear |
Gearless |
|
Crew size |
15 |
|
Manager |
Bernd Becker Shipmanagement GmbH & Co. KG Königreicherstr. 114A 21635 Jork Federal Republic of Germany |
|
Registered owner |
MS "JORK RELIANCE" Bernd Becker GmbH & Co. KG Königreicherstr. 114 21635 Jork Federal Republic of Germany |
|
Renamed |
04/2016 Mirror Portugal, Madeira - Call sign: CQBN Registered owner: MS "MIRROR" Schiffahrtsgesellschaft mbH & Co. KG - Germany Manager: Köpping Reederei GmbH & Co. KG - Germany |
|
Latest data adjustment |
31 December 2023 |
