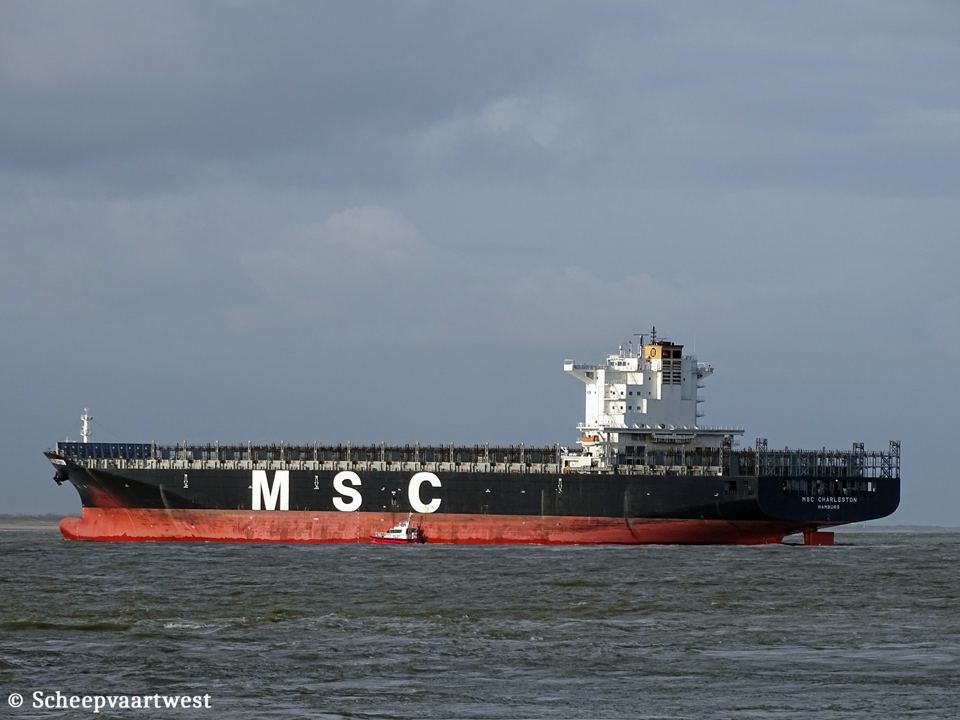

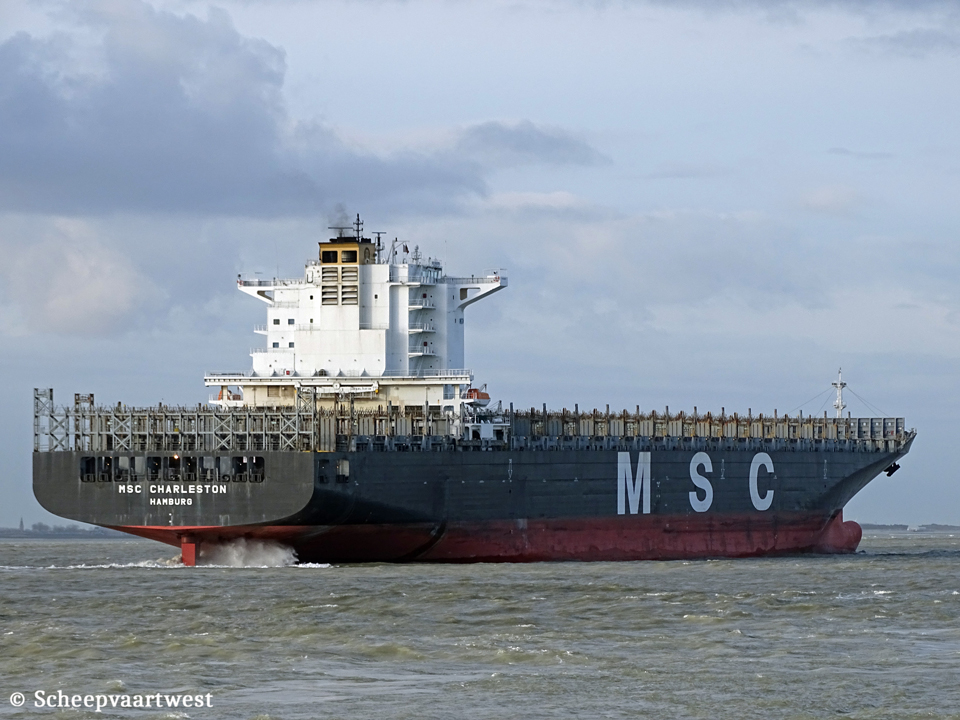

Westerschelde 24 June 2015 |
 |
 |
 |
||

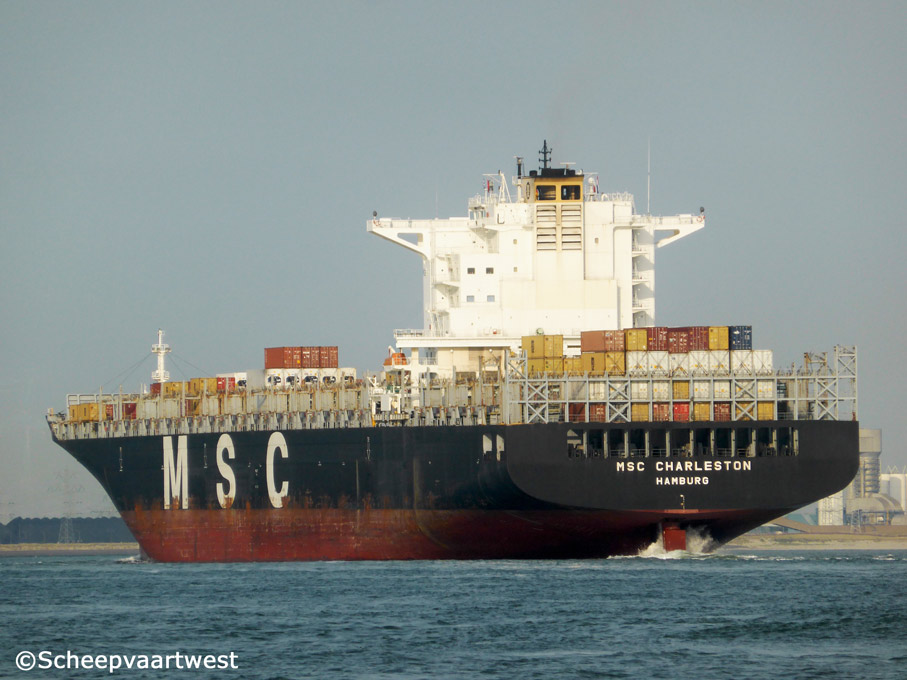

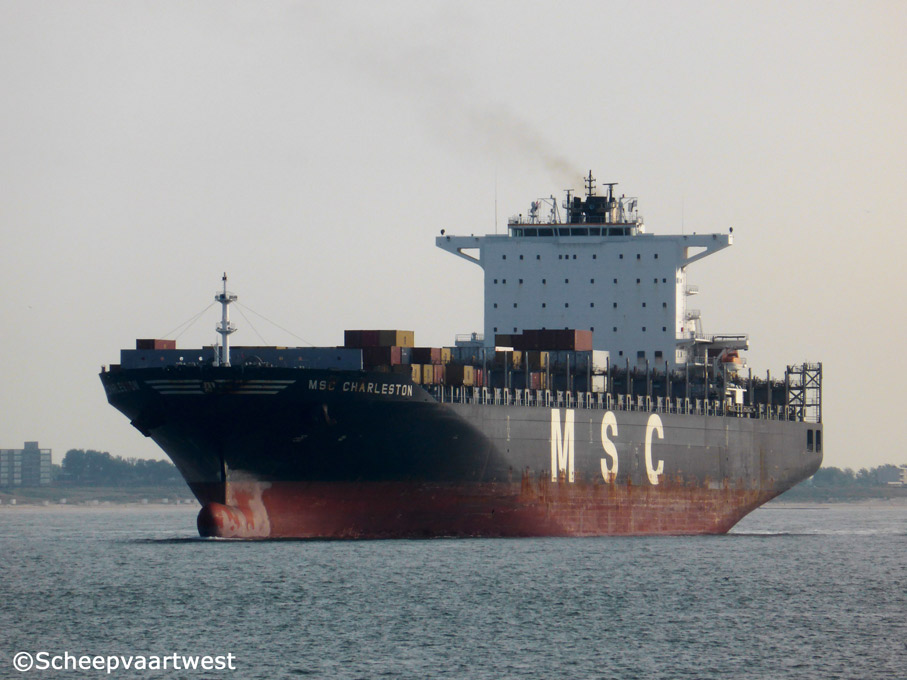

| Westerschelde 24/06/15 | Westerschelde 01/03/17 | Westerschelde 01/03/17 | ||
|
Name |
MSC CHARLESTON |
|
Previous names |
2006 Launch as: Santa Leopolda |
|
Type |
Cellular containership |
|
IMO-number |
9299537 |
|
Call sign |
CQEF4 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2006 - 2020 Germany, Hamburg - Call sign: DDFT2 |
|
GT |
91.023 |
|
DWT |
Summer: 126.053 t |
|
NT |
54.268 |
|
Number of 20ft containers |
8.034 |
|
Container capacity 14t |
6.275 |
|
Reefer points |
550 |
|
Length |
324,85 m overall 309,20 m between perpendicuoars |
|
Breadth |
42,80 m extreme |
|
Draught |
16,28 m |
|
Forecastle |
61,97 m |
|
Bridge |
233,06 m |
|
Depth |
24,60 m |
|
Speed |
25,4 knots |
|
Built |
2006 |
|
Keel laid |
27/12/2005 |
|
Launch date |
31/03/2006 |
|
Date of completion |
18/05/2006 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. 29, 5-ga, Bongnae-dong Youngdo-gu Busan Republic of Korea |
|
Yard number |
N-139 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä/Sulzer 12RTA96C-B - 2 stroke 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW / 93.324 hp at 102,0 rpm Year of manufacture: 2006 Manufacturer: Doosan Engine Co., Ltd. 18, Gongdanro21-gil, Sungsan-gu Changwon Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 95,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 449,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao People's Republic of China |
|
Electric installations |
4x Plants each 450 V - 2.812,5 kVA 1x Plant 450 V - 625 kVA 2x Plants each 24 V - 7 Ah 2x Plants each 24 V - 12 Ah 2x Plants each 24 V - 35 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah |
|
Generators |
4x MAN 8L27/38 main diesel generatorsets each 2.812,5 kVA |
|
Emergency generator |
1x Cummins VTA 28-D(M) diesel generatorset 625 kVA |
|
Batteries |
1x Battery for start emergency engine 200 Ah 1x Battery for UPS radio 200 Ah |
|
Compressed air receivers |
2x Receivers each 16.800 litres - 32,0 bar 1x Receiver 500 litres - 32,0 bar 3x Receivers each 30 litres - 10,0 bar 1x Receiver 250 litres - 8,8 bar 2x Receivers each 15 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster 2.600 kW, forward |
|
Tank capacities |
Ballast: 23.348,0 m³ |
|
Anchor equipment |
3x Anchors weight each 18.800 kg Chain length: 748,00 m Diameter: 107 mm |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Manager |
MSC Shipmanagement Limited |
|
Previous manager |
CPO Containerschiffreederei GmbH & Co. KG (Offen group), Hamburg - Germany |
|
Registered owner |
SPDBFL No. One Hundred and Seven (Shanghai) Ship Leasing Company Limited |
|
Latest data adjustment |
08 December 2024 |
