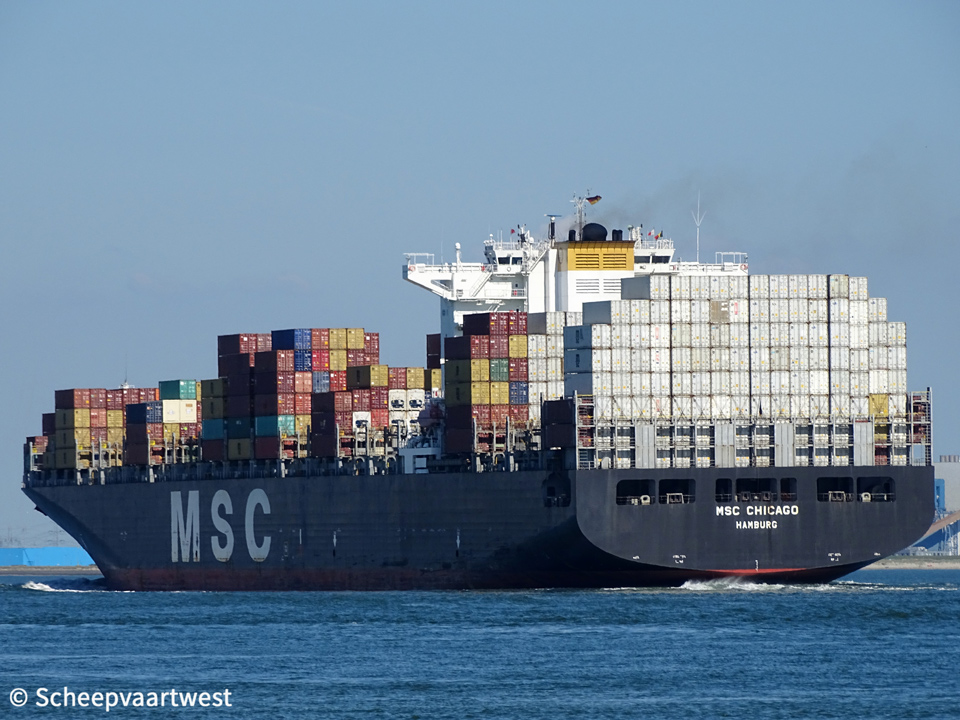

Westerschelde 29 September 2017 |
 |
 |
|

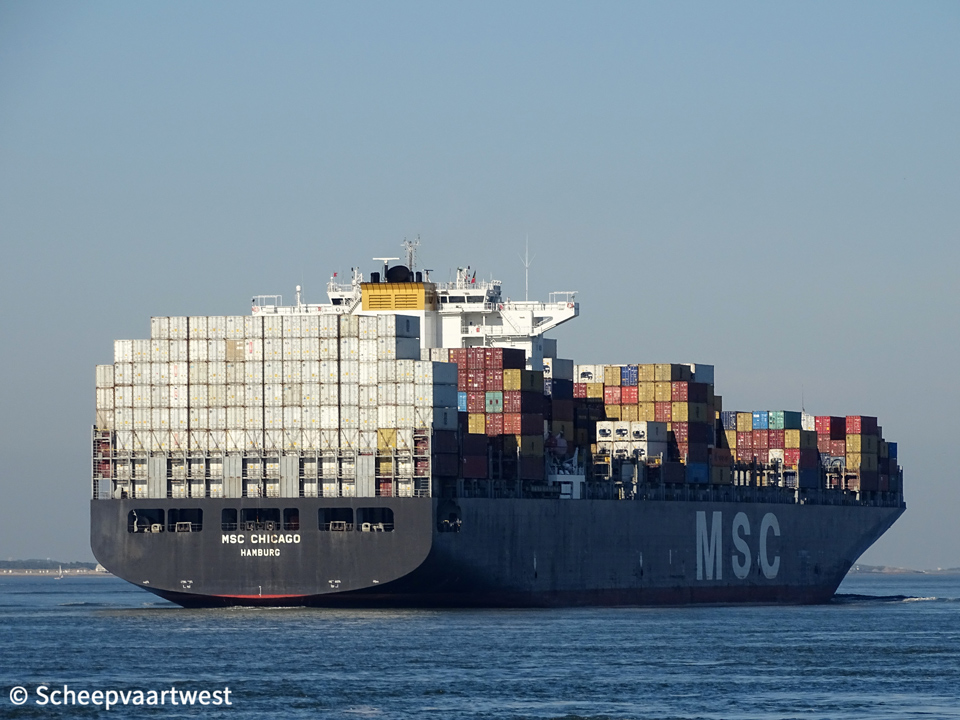

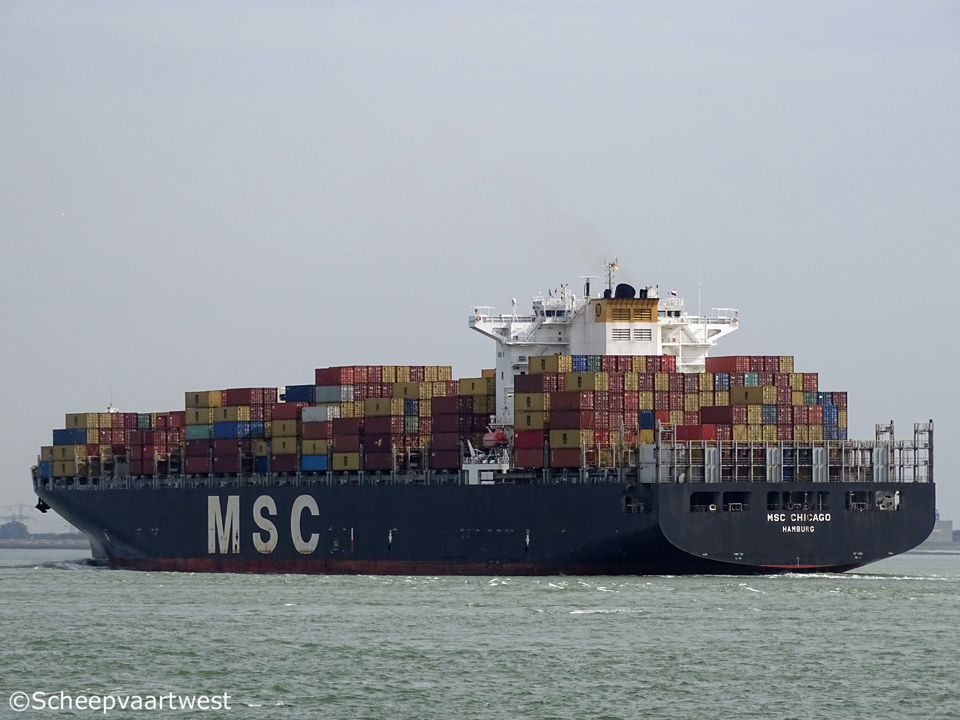

| Westerschelde 27/05/17 | Westerschelde 25/05/17 |
|
Name |
MSC CHICAGO |
|
Type |
Cellular containership |
|
IMO-number |
9290555 |
|
Call sign |
DFDG2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
Previous flags |
2005 - 2014 Liberia, Monrovia - Call sign: A8HS2 |
|
GT |
107.849 t |
|
DWT |
Summer: 109.835 t |
|
NT |
57.577 t |
|
Number of 20ft containers |
9.178 |
|
Container capacity 14t |
6.500 |
|
Reefer capacity |
700 |
|
Length |
336,71 m overall 321,00 m between perpendiculars |
|
Breadth |
45,64 m extreme |
|
Draught |
15,00 m |
|
Forecastle |
160,99 m |
|
Bridge |
150,59 m |
|
Poop |
10,39 m |
|
Depth |
27,20 m moulded |
|
Speed |
Max: 25,2 knots |
|
Built |
2005 |
|
Keel laid |
23/05/2005 |
|
Launch date |
30/07/2005 |
|
Date of completion |
03/11/2005 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Goeje Shipyard Goeje South Korea |
|
Yard number |
1510 |
|
Hull material |
Steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12 K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 68.520 kW at 104,0 rpm Transmission: Main propulsion acts directly on the propellershaft Starter type: Compressed air direct Build: 2005 Builder: HSD Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 55,0 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface 1.182,0 m² Build: 2005 Builder: Alfa Laval Qingdao Ltd. |
|
Electric Installations |
1x Plant 6.600/ 450 V - 3.437,5 kVA 1x Plant 6.600/ 450 V - 3.437,5 kVA 1x Plant 6.600/ 450 V - 3.437,5 kVA 1x Plant 6.600/ 450 V - 3.437,5 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 92 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 2x Plants each 110 V - 360 Ah |
|
Generators |
4x MAN 6L32/40 main diesel generatorsets each 3.437,5 kVA |
|
Emergency generator |
1x Cummins VTA-28-D-M diesel generatorset 625 kVA |
|
Batteries |
2x Batteries for start main engine each 360 Ah 1x Battery for automation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 200 Ah 1x Battery for automation 92 Ah |
|
Compressed air receivers |
2x Receivers, each 14.500 litres - 33,0 bar 1x Receiver 300 litres - 33,0 bar 1x Receiver 250 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster 3.000 kW, forward |
|
Tank capacities |
Ballast: 25.307,7 m³ |
|
Anchor equipment |
3x Anchors weight each 20.000 kg Chain Length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
34 |
|
Manager |
CPO - Claus-Peter Offen Containerschiffreederei (GmbH & Co.) KG Kaufmannshaus Bleichenbrücke 10 20354 Hamburg Germany |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Kommanditgesellschaft MS "SANTA LINEA" Offen Reederei GmbH & Co. |
|
Renamed |
02/2019 Santa Linea Germany, Hamburg - Call sign: DFDG2 Owner: Santa Linea Offen Reederei / Santa Linea Shipping Corp. Manager: CPO Containerschiffreederei (GmbH & Co.) KG |
|
Latest data adjustment |
11 April 2020 |
