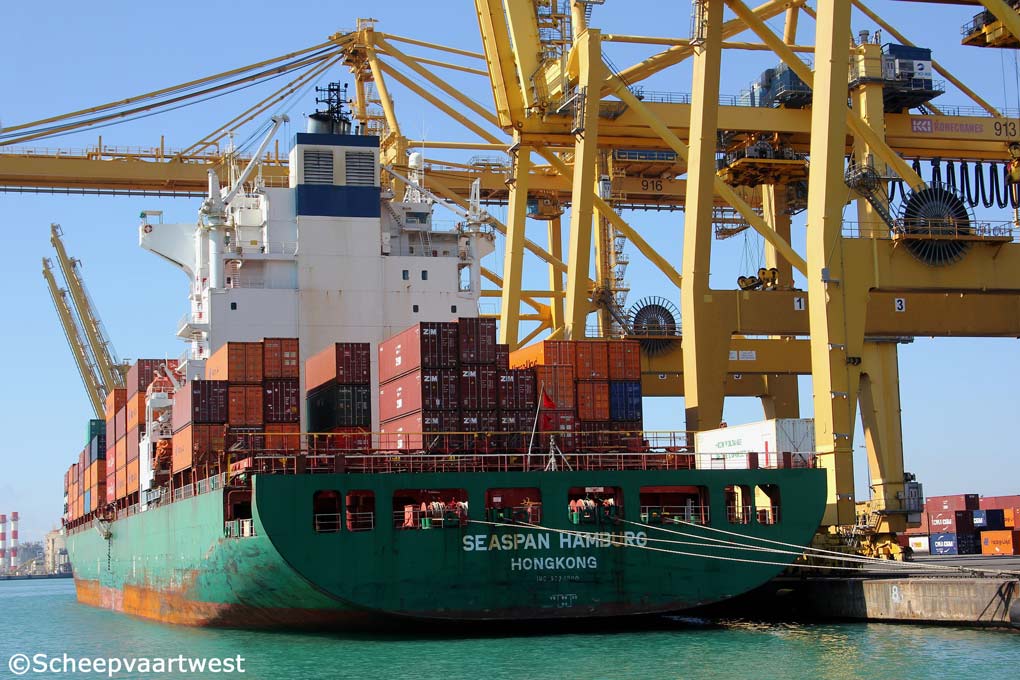

Barcelona, Spain 29 August 2015 |
 |
| Barcelona 29/08/15 |
|
Name |
SEASPAN HAMBURG |
|
Previous names |
2001 - 11.2010 CSCL Hamburg 11.2010 - 01.2013 CSAV Licanten |
|
Type |
Cellular containership |
|
IMO-number |
9224300 |
|
Call sign |
VRBH6 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
Previous flags |
2001 - 2005 Cyprus, Limassol |
|
GT |
39.941 t |
|
DWT |
Summer: 50.789,8 t |
|
NT |
24.458 t |
|
Number of 20ft containers |
4.253 |
|
Container capacity 14t |
2.805 |
|
Reefer capacity |
400 |
|
Length |
259,80 m overall 244,80 m between perpendiculars |
|
Breadth |
32,35 m extreme |
|
Draught |
12,60 m |
|
Depth |
19,30 m |
|
Speed |
Service: 23,3 knots |
|
Service |
MPS |
|
Built |
2001 |
|
Keel laid |
19.02.2001 |
|
Launch date |
04.05.2001 |
|
Date of completion |
03.07.2001 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co. Ltd. |
|
Yard number |
1342 |
|
Hull material |
Steel |
|
Main engine |
1x B&W 8K90MC-C- 8 cylinder diesel engine 36.515 kW / 49.646 hp |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler, composite type RMS10ZMD Builder: KangRim Industries. Co., Ltd. |
|
Generators |
4x Daihatsu 6DK-28 diesel generatorsets each 1.680 kW Builder: Daihatsu Diesel Mfg. Co., Ltd. |
|
Bow thruster |
1x 1.600 kW |
|
Tank capacities |
Ballast: 11.653 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Manager |
Seaspan Shipmanagement Ltd. |
|
Registered owner |
Seaspan Corporation |
|
Previous owners |
2001 - 2005 CSCL Hamburg Shipping Co. Ltd. |
|
Latest data adjustment |
06 October 2015 |
