Westerschelde 01 April 2017 |
Westerschelde 01/04/17 | Westerschelde 16/11/15 |
Name |

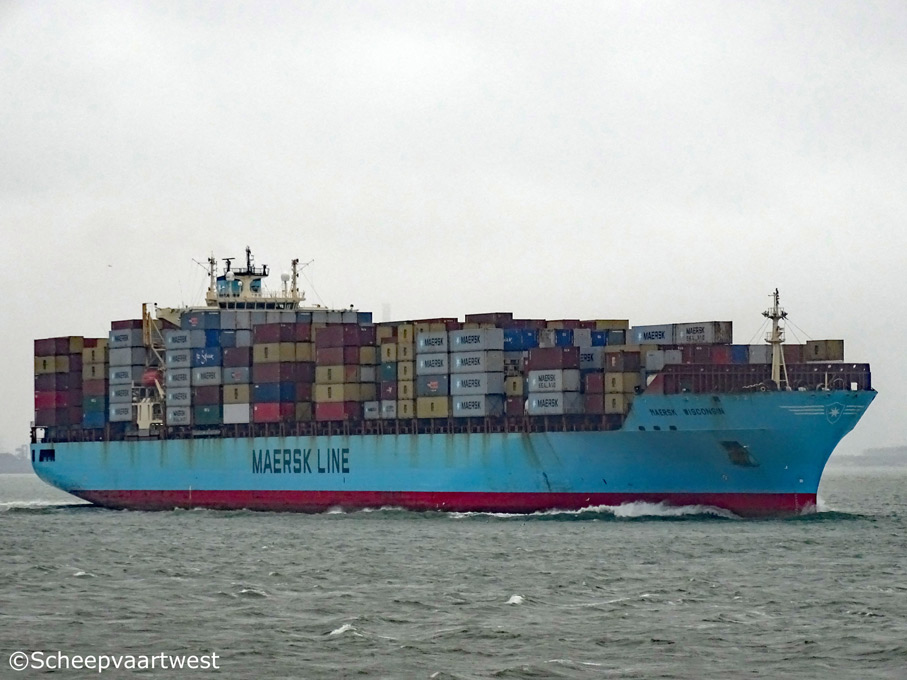

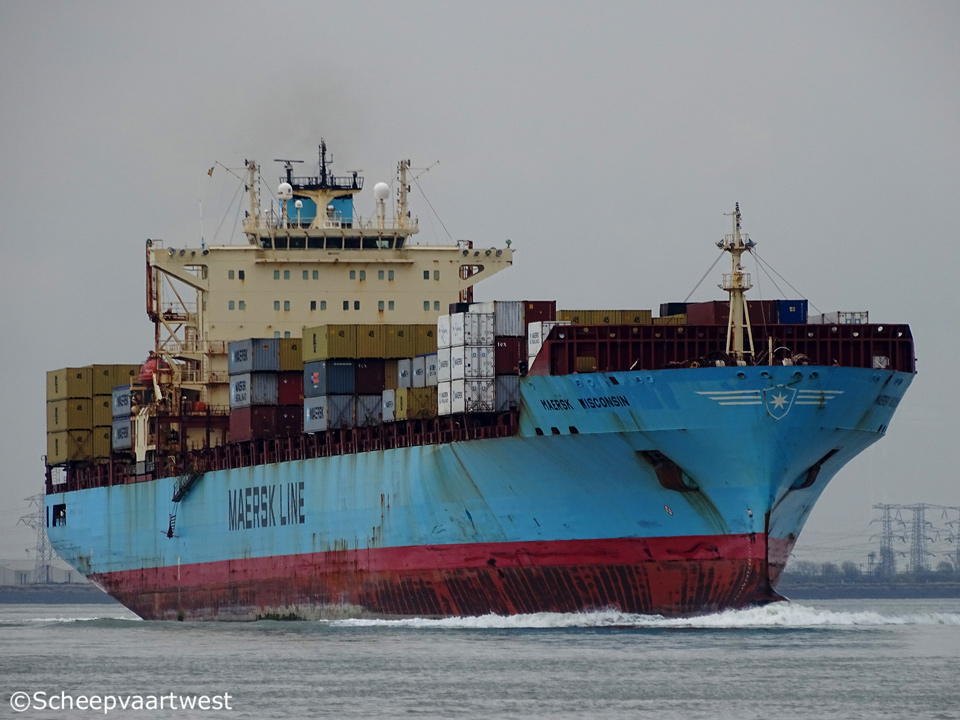

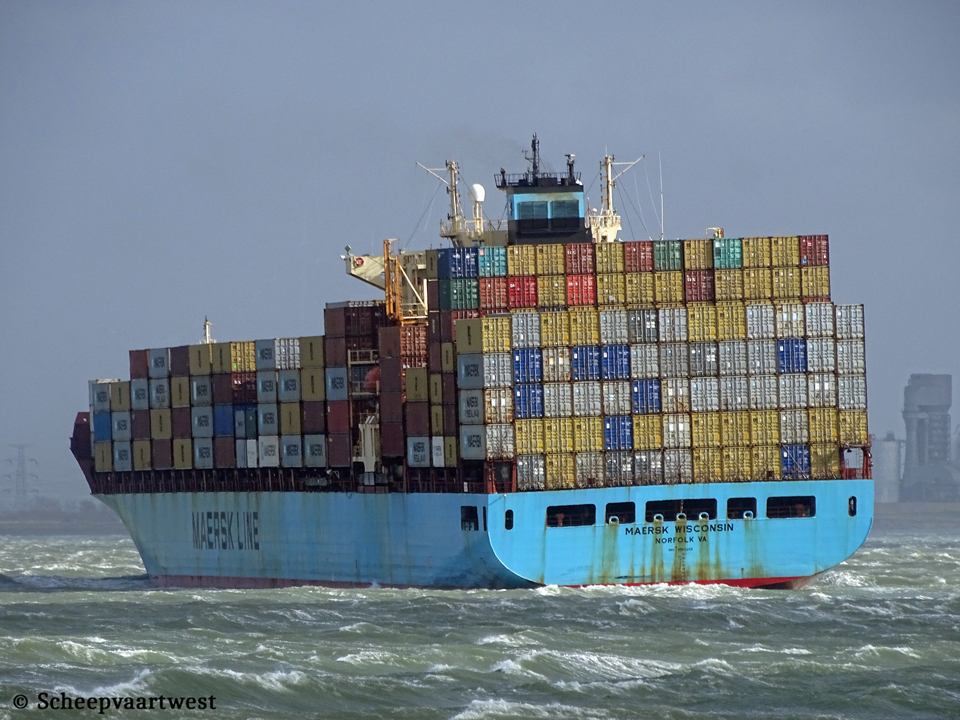

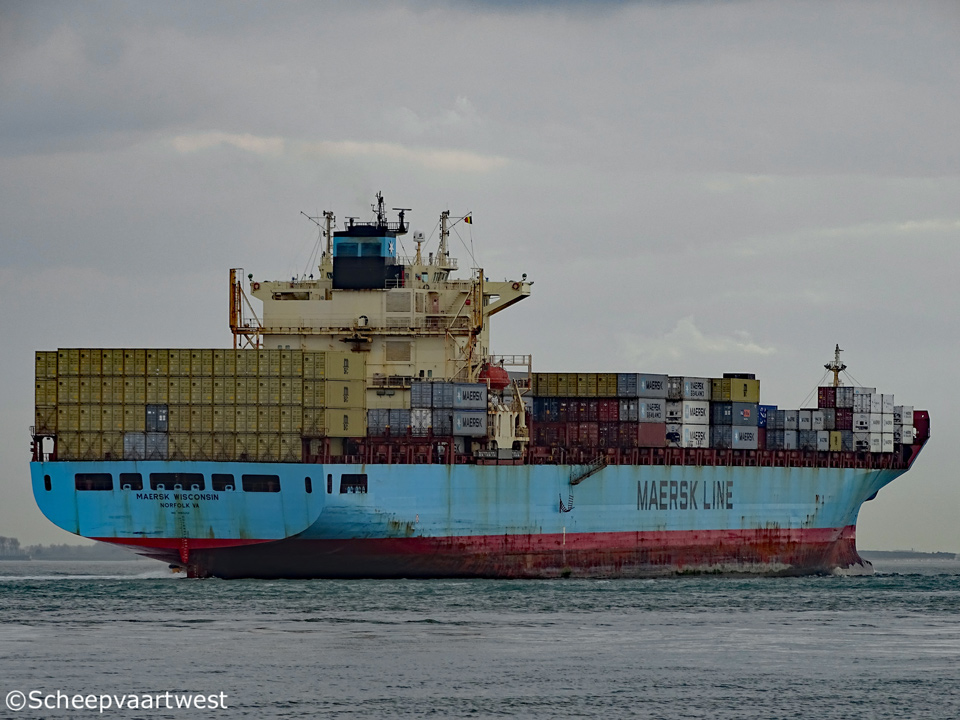

MAERSK WISCONSIN |
Previous names |
2000 - 03/2009 Greenwich Maersk |
Type |
Cellular containership - Carriage of Dangerous Goods - Refrigerated Cargo Panamax |
IMO-number |
9193252 |
Call sign |
9V5503 |
Flag |
Republic of Singapore |
Port of registry |
Singapore City |
Previous flags |
2009 - 2009 United Kingdom, London 2009 - 07/2017 United States of America, Norfolk VA - Call sign: WKPN |
GT |
50.698 t registered |
DWT |
Summer: 61.986,7 t |
NT |
29.707 t registered |
Number of 20ft containers |
4.658 |
Container capacity 14t |
3.320 |
Reefer capacity |
613 |
Length |
292,08 m overall 277,00 m between perpendiculars |
Breadth |
32,25 m moulded |
Draught |
13,50 m |
Freeboard |
3.885 mm |
Depth |
21,70 m moulded |
Speed |
Max.: 24,2 knots |
Service |
ME5 |
Built |
2000 |
Keel laid |
27/07/1999 |
Delivery date |
31/01/2000 |
Builder |
Hyundai Heavy Industries Co. Ltd. |
Yard number |
1200 |
Hull material |
High strength steel |
Hull type |
Single hull |
Watertight bulkheads |
8 |
Main engine |
1x MAN-B&W 10K90MC-C MK V - 2 stroke single acting 10 cylinder 900 x 2.200 mm combustion engine 43.070 kW / 58.558 hp at 104,0 rpm Manufacturer: HHI Engine & Machinery Division - South Korea |
Propellers |
1x Fixed pitch propeller - aft at 140 rpm |
Boilers |
1x Exhaust Gas Boiler Manufacturer: KanGrim 1x Waste Oil Fired Aux Boiler type AQ-10/12W Manufacturer: Aalborg Marine Boilers |
Generators |
4x MAN-B&W 8L27/38 main diesel generatorsets each 2.280 kW |
Bow thruster |
1x Controllable pitch thruster 1.500 kW / 2.039 bhp, forward 1x Fixed pitch thruster 860 kW / 1.169 bhp, aft |
Total hold capacity |
101.330,3 m³ |
Number of tanks |
Ballast: 24 Fuel Oil: 12 Lubricating Oil: 6 Waste Water: 5 Sludge: 4 Fresh Water: 4 Diesel Oil: 3 Chain: 2 |
Tank capacities |
Diesel Oil: 408,2 m³ / 367,38 t Freshwater: 405,6 m³ Fuel Oil: 6.134,8 m² / 6.012,10 t Lube Oil: 435,4 m³ / 391.,6 t Tank Ballast: 17.512,91 m³ / 7.950,72 t |
Cargo gear |
Gearless |
Manager |
Maersk Line |
Operator |
Maersk Line Ltd. One Commercial Place 20TH Floor Norfolk, VA United States |
Registered owner |
Maersk Line, Limited |
Scrapped |
01/08/2017 Jiangyin - China |
Latest data adjustment |
24 March 2018 |
