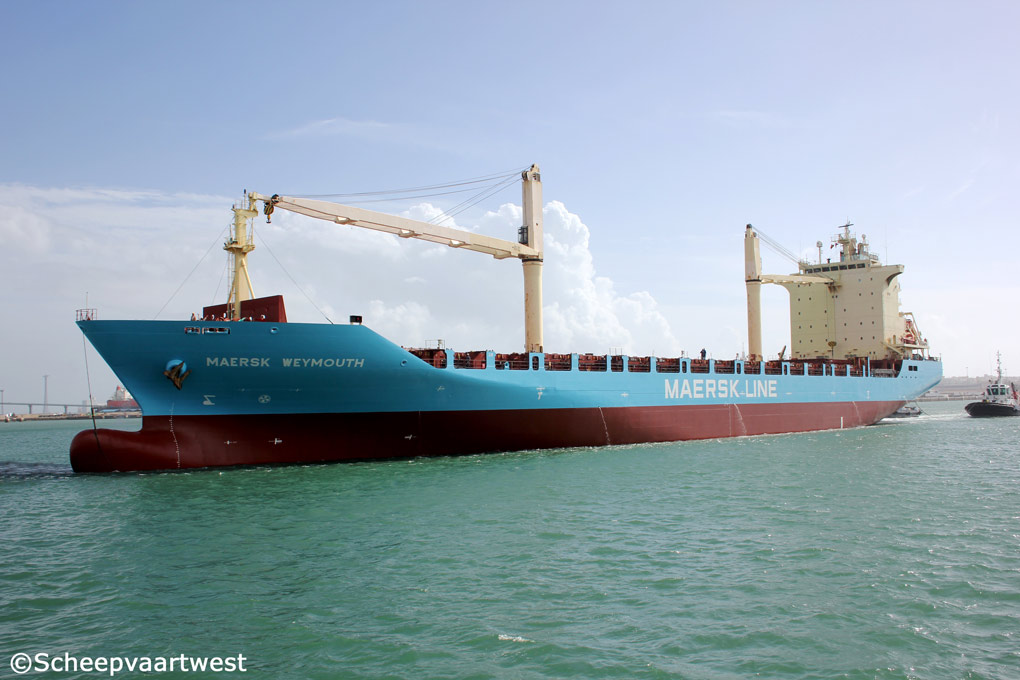

Maersk Weymouth 02

Cadiz, Spain 16 September 2014

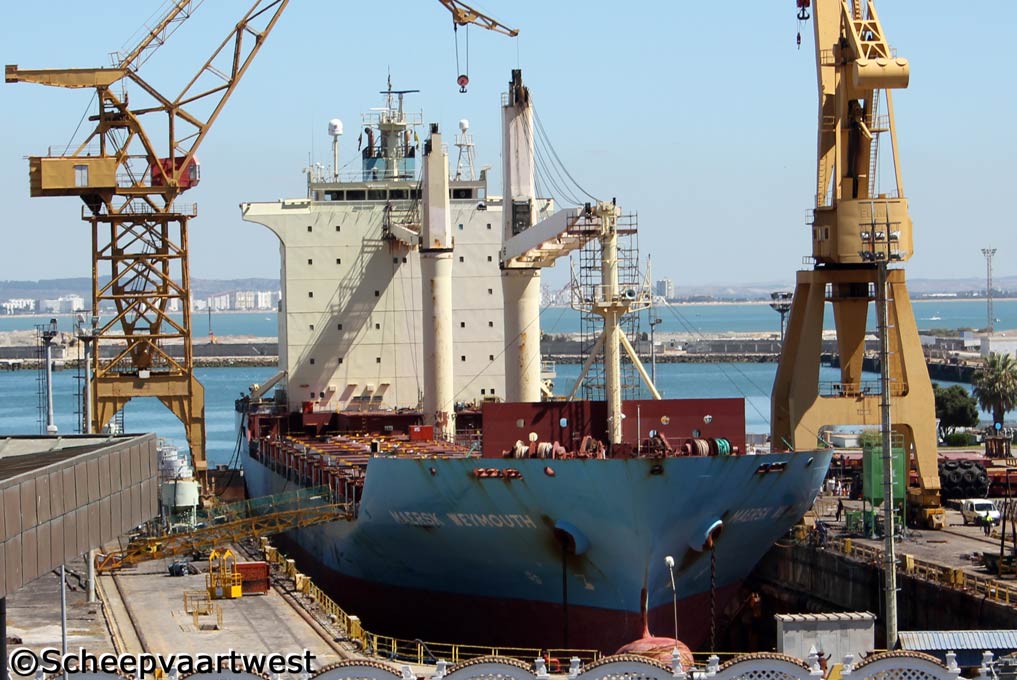

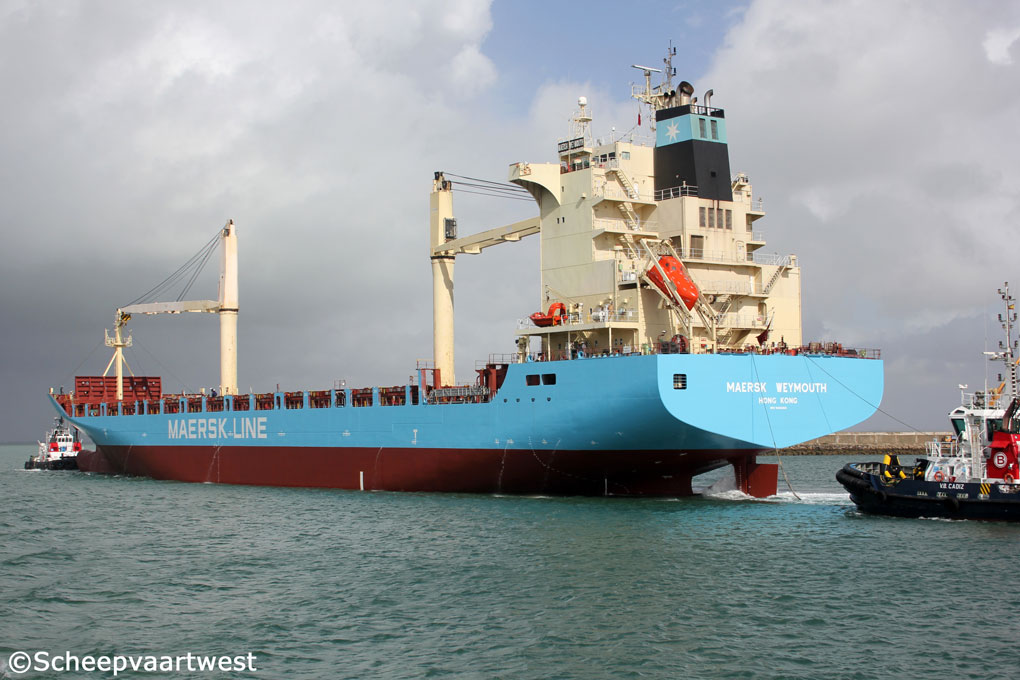

Maersk Weymouth 03   Maersk Weymouth 01
Cadiz, Spain 16/09/14 Cadiz, Spain 10/09/14



Name

MAERSK WEYMOUTH

Type

Cellular containership

IMO-number

9410260

Call sign

VRFS9

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

18.123 t

DWT

Summer: 22.314 t

NT

7.996 t

Number of 20ft containers

1.713

Reefer capacity

377

Length

172,00 m overall

Breadth

27,90 m

Draught

9,53 m

Reg. Dimensions L x B x D

166,23 X 27,90 X 13,80 m

Rule Dimensions L x B x D

164,90 X 27,90 X 13,80 m

Freeboard

4.326 mm

Depth

13,80 m

Speed

Max.: 19,8 knots

Built

2009

Keel laid

28.11.2008

Launch date

04.08.2009

Date of completion

15.10.2009

Builder

CSBC Corporation, Taiwan Keelung Yard, Keelung - Taiwan

Yard number

H-940

Hull material

Steel

Watertight bulkheads

Transverse: 11

Continuous decks

1

Main engine

1x MAN-B&W-HHI 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine - 15.820 kW at 105,0 rpm

Built: 03.2009

Builder: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea

Propellers

1x Solid propeller

Boilers

Built: 03.2009

Builder: Alfa Laval Qingdao Ltd., Qing Dao - China

Generators

3x Main diesel generatorsets each 1.875 kVA - 450 Volt

Bow thruster

1x 800 kW

Hatchway number & size

5

Hatch 1: 12,60 x 10,28 m

Hatch 2: 25,20 x 25,54 m

Hatch 3: 25,20 x 25,54 m

Hatch 4: 25,20 x 25,54 m

Hatch 5: 12,60 x 25,54 m

Tank capacity

Fuel oil: 2.062 m³

Fresh water: 302,9 m³

Water ballast: 7.248,9 m³

Cargo gear

2x Deck cranes - SWL 40,0 t each

Manager

Cido Shipping (H.K.) Co., Ltd.
Hong Kong

Technical manager

Univan Ship Management Limited
Hong Kong

Operator

Maersk Line

Registered owner

White Fig Shipping S.A.

Latest data adjustment

17 October 2014
