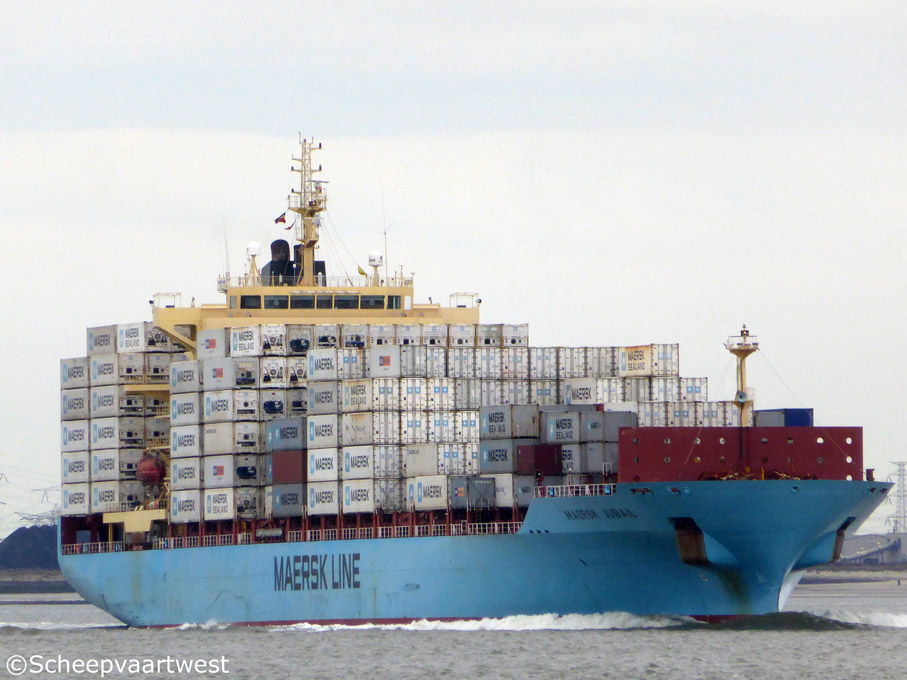

Maersk Jubail 01

Westerschelde 26 April 2014

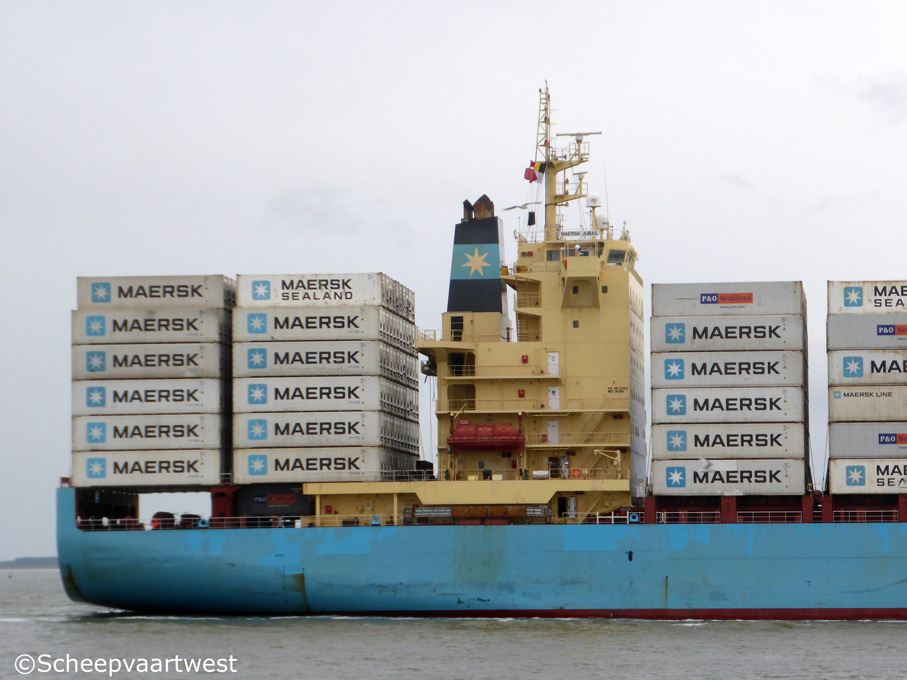

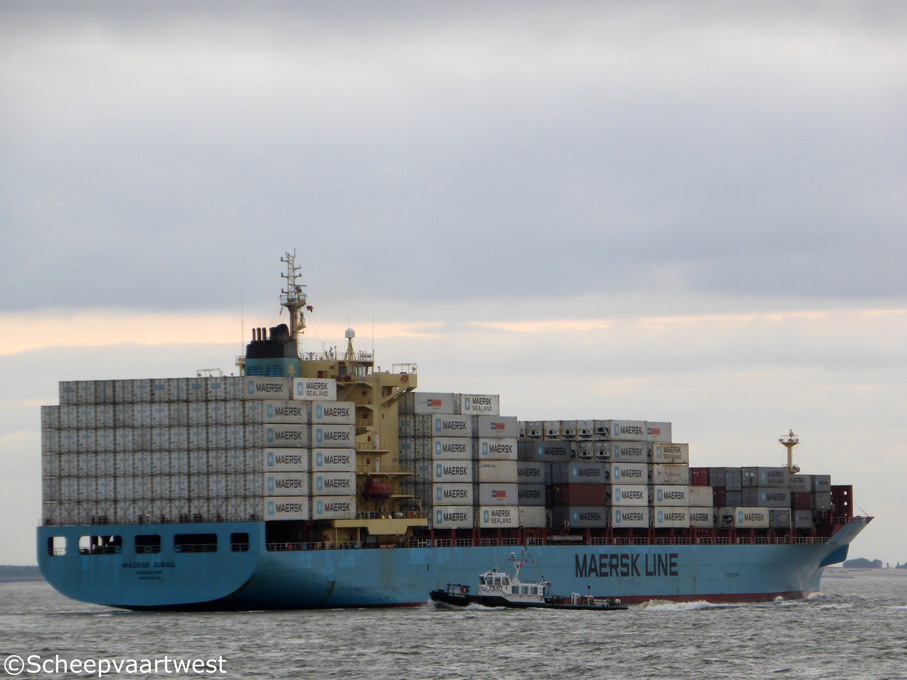

Maersk Jubail 03   Maersk Jubail 02
Westerschelde 26/04/14 Westerschelde 26/04/14



Name

MAERSK JUBAIL

Type

Cellular containership

IMO-number

9349045

Call sign

VREN8

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

28.340 t

DWT

Summer: 39.446 t

NT

14.289 t

Number of 20ft containers

2.824

Container capacity 14t

2.030

Reefer capacity

400

Length

222,20 m overall

Breadth

30,00 m

Draught

12,02 m

Reg. Dimensions L x B x D

212,20 x 30,00 x 16,80 m

Rule Dimensions L x B x D

209,70 x 30,00 x 16,80 m

Freeboard

4.837 mm

Depth

16,80 m

Speed

Max.: 23,1 knots

Built

2008

Keel laid

12.06.2008

Launch date

01.09.2008

Date of completion

14.10.2008

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan
South Korea

Yard number

H-4030

Hull material

Steel

Watertight bulkheads

Transverse: 9

Continuous decks

1

Main engine

1x MAN-B&W 7K80MC-C - 2 stroke single acting 7 cylinder 800 x 2.300 mm diesel engine 25.270 kW at 104,0 rpm

Built: 06.2008

Manufacturer: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea

Propellers

1

Boilers

Built: 07.2007

Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

4x MAN-B&W 8L28/32 main diesel generatorsets each 1.600 kW

Number of hatches

6

Hatch 1: 12,60 x 10,32 m

Hatch 2: 12,60 x 20,40 m

Hatch 3: 12,60 x 25,72 m

Hatch 4: 12,60 x 25,72 m

Hatch 5: 12,60 x 25,72 m

Hatch 6: 12,60 x 25,72 m

Tank capacities

Fuel oil: 3.258,5 m³

Fresh water: 223,2 m³

Water ballast: 11.340,8 m³

Cargo gear

Gearless

Manager

Cido Shipping (Hong Kong) Co., Ltd.

Technical manager

Anglo-Eastern Ship Management Ltd.
Hong Kong

Operator

Maersk Line

Registered owner

White Mulberry Shipping S.A.
Care of Univan Ship Management Ltd , 35th Floor, Citicorp Centre North Point, 18, Whitfield Road, Causeway Bay
Hong Kong
China

Latest data adjustment

03 February 2016
