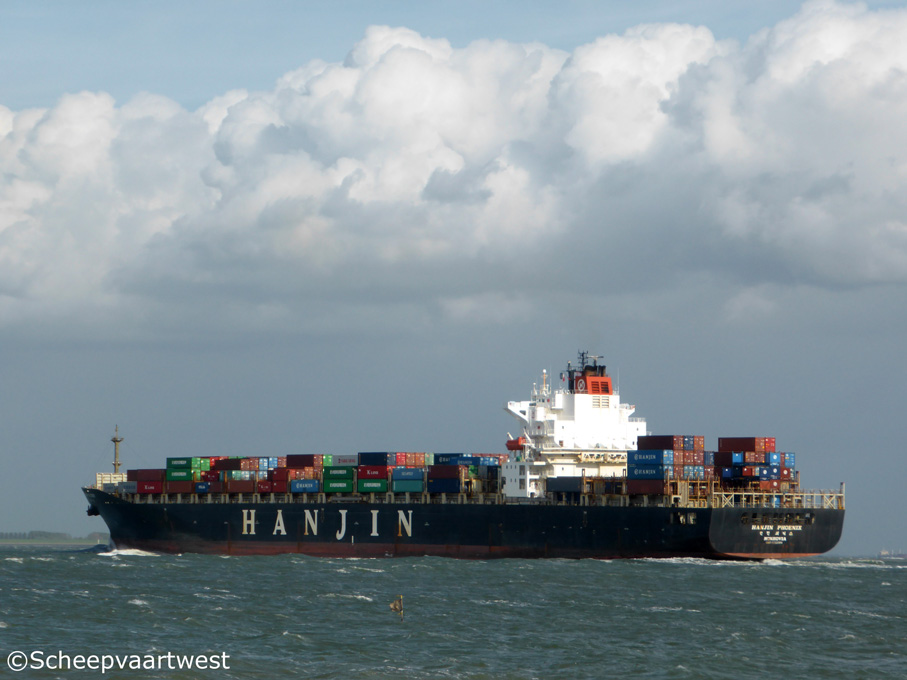

Hanjin Phoenix 01

Westerschelde 07 May 2014



Name

HANJIN PHOENIX

Type

Cellular containership

IMO-number

9232084

Call sign

A8CN9

Flag

Liberia

Port of registry

Monrovia

GT

50.242 t

DWT

Summer: 58.724 t

NT

27.530 t

Number of 20ft containers

4.389

Container capacity 14t

3.051

Reefer points

400

Length

282,09 m overall

266,42 m between perpendiculars

Breadth

32,20 m extreme

Draught

13,00 m

Freeboard

4.370 mm

Depth

21,50 m

Speed

Service: 24,0 knots

Built

2002

Keel laid

07.09.2001

Launch date

30.11.2001

Date of completion

26.01.2002

Builder

Hanjin Heavy Industries & Construction C., Ltd.
29, 5-Ka, Pongnae-dong Yongdo-gu
Busan
South Korea

Yard number

091

Hull material

Shipbuilding steel (higher tensile)

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 9K90MC-C - 2 stroke 9 cylinder 900 x 2.300 mm diesel engine - 41.040 kW at 104,0 rpm

Year of manufacture: 2001

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 50,0 m²

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 727,0 m²

Year of manufacture: 2001

Manufacturer: KangRim Industries Co., Ltd. (2nd Factory)
1515-11, Dadae-dong, Saha-gu
Busan
Republic of Korea

Electric installations

2x Plants each 440/220 V - 2.125 kVA

2x Plants each 440/220 V - 2.488 kVA

1x Plant 440 V - 213 kVA

2x Plants each 24 V - 146 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

2x 7L27/38 diesel generatorsets each 2.488 kVA

2x 6L27/38 diesel generatorsets each 2.125 kVA

Emergency generator

1x D2866 TE diesel generatorset 213 kVA

Compressed air receivers

2x Receivers each 13.500 litres - 32,4 bar

1x Receiver 300 litres - 32,4 bar

4x Receivers each 60 litres - 9,7 bar

1x Receiver 20 litres - 9,7 bar

1x Receiver 200 litres - 7,7 bar

Bow thruster

1x Transverse thruster Nakashima 1.850 kW, forward

Tank capacities

Fuel oil: 6.057 m³

Ballast: 17.135 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Length: 687,50 m

Diameter: 87 mm

Cargo gear

Gearless

Manager

Reederei F. Laeisz GmbH
Lange Str. 1a
18055 Rostock
Federal Republic of Germany

Operator

Hanjin

Renamed

11.06.2014 Phoenix I - Liberia, Monrovia - Call sing: A8CN9

Latest data adjustment

03 March 2016
