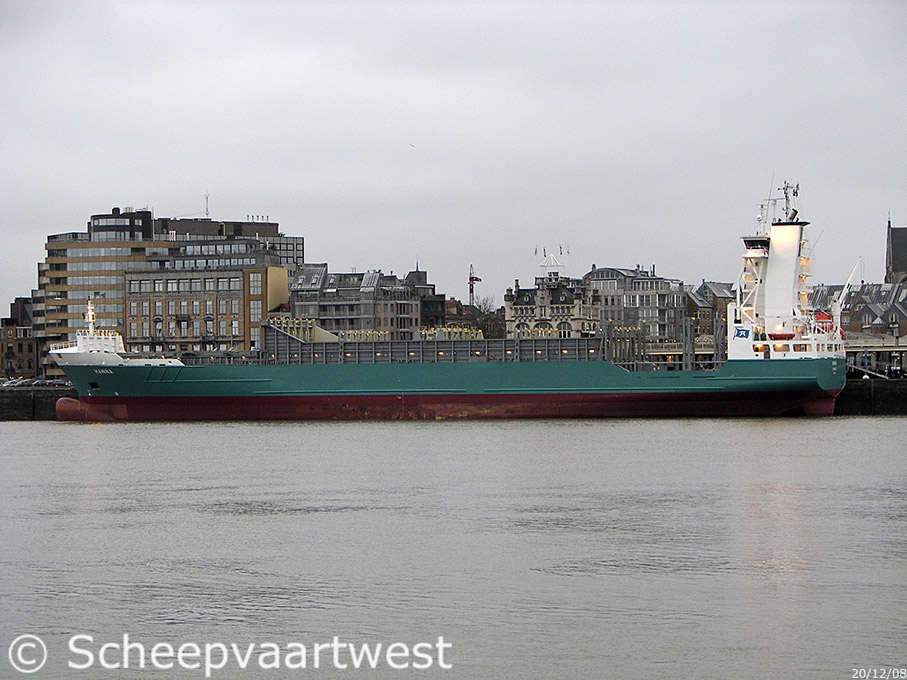

| Antwerpen 20 December 2008 |
 |

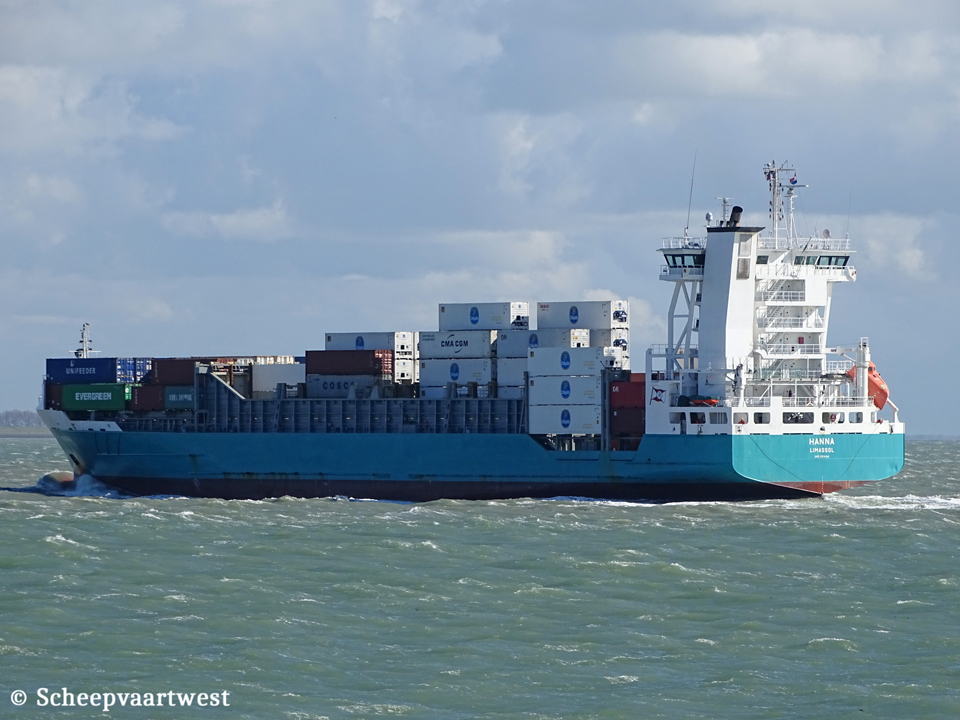

| Westerschelde 17/03/19 |
|
Name |
HANNA |
|
Previous name |
2008 Launch as: Hanna 2008 - 2008 WEC Van Ruysdael |
|
Type |
Containership |
|
IMO-number |
9376048 |
|
Call sign |
5BVG2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
9.981 t |
|
DWT |
11.408 t |
|
NT |
6.006 t |
|
Number of 20ft containers |
868 |
|
Number of 40ft containers |
392 |
|
Container capacity 14t |
585 |
|
Reefer capacity |
204 - 380 Volt 50 Hz |
|
Length |
134,44 m overall 125,08 m registered |
|
Breadth |
22,50 m moulded |
|
Draught |
Summer: 8,71 m |
|
Forecastle |
91,39 m |
|
Poop |
9,45 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m moulded |
|
Speed |
18,5 knots |
|
Built |
2008 |
|
Keel laid |
16/12/2005 |
|
Launch date |
02/04/2008 |
|
Date as completed |
05/06/2008 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1285 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.413 hp at 500 rpm Build: 01/12/2008 Builder: Caterpillar Motoren Rostock GmbH - Germany |
|
Propeller |
1 Controllable pitch propeller - Aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 51,7 m² Year of manufacture: 2008 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 221,50 m² Year of manufacture: 2008 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
1x 400 V - 1.155 kVA 1x 400 V - 1.390 kVA 1x 400 V - 1.860 kVA 1x 400 V - 400 kVA 1x 24 V - 140 Ah |
|
Shaft generator |
1x SAM SE500 - 1.488 kW - 1.860 kV |
|
Main generators |
1x Caterpillar main diesel generatorset 1.390 kVA - 1.112 kW - 1.386 hp 1x Caterpillar main diesel generatorset 1.155 kVA - 924 kW - 1.163 hp |
|
Emergency generator |
1x Caterpillar 5E500 diesel generator 400 kVA |
|
Batteries |
2x Batteries for start emergency engine each 140 Ah |
|
Bow thruster |
1x Brunvoll transverse thruster - 750 kW, forward 1x Brunvoll transverse thruster - 450 kW, stern |
|
Compressed air Receivers |
2x Receivers each 750 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Nuber of holds |
4 |
|
Cargo hold capacity |
4.730 m³ |
|
Number of hatches |
4 |
|
Tank capacities |
Fuel: 861 t Fresh water: 128 t Gas oil: 113 t Water ballast: 4.030 t |
|
Cargo gear |
Gearless |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Crew size |
19 |
|
Manager |
Reederei Gebrüder Ahrens GmbH & Co. KG Morellenweg 10 21720 Grünendeich Federal Republic of Germany |
|
Owner |
MS 'Hanna' UG (haftungsbeschraenkt) & Co., KG Federal Republic of Germany |
|
Latest data adjustment |
02 June 2022 |
