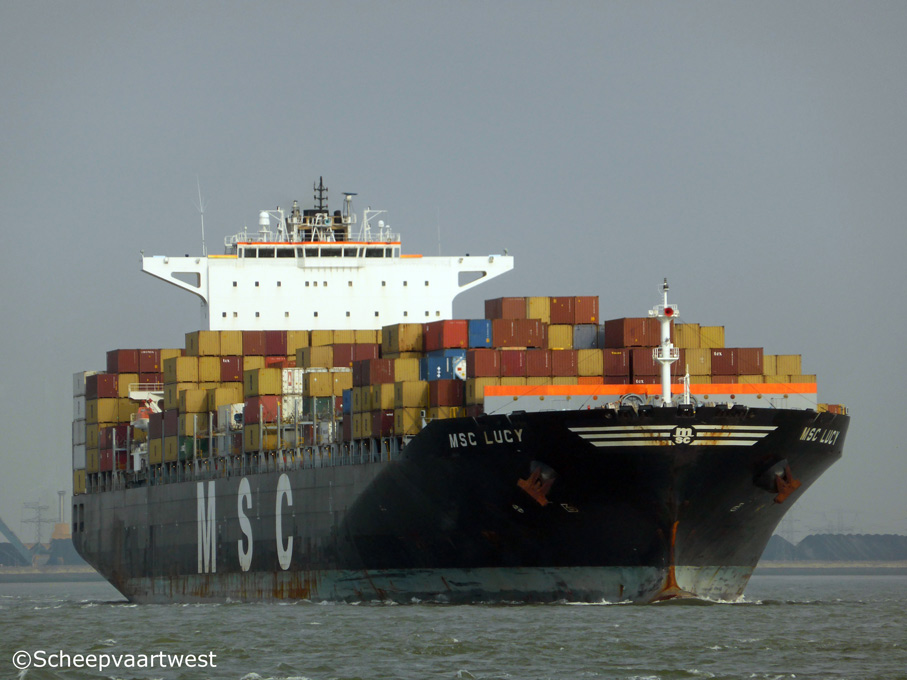

MSC Lucy 01

Westerschelde 12 April 2014

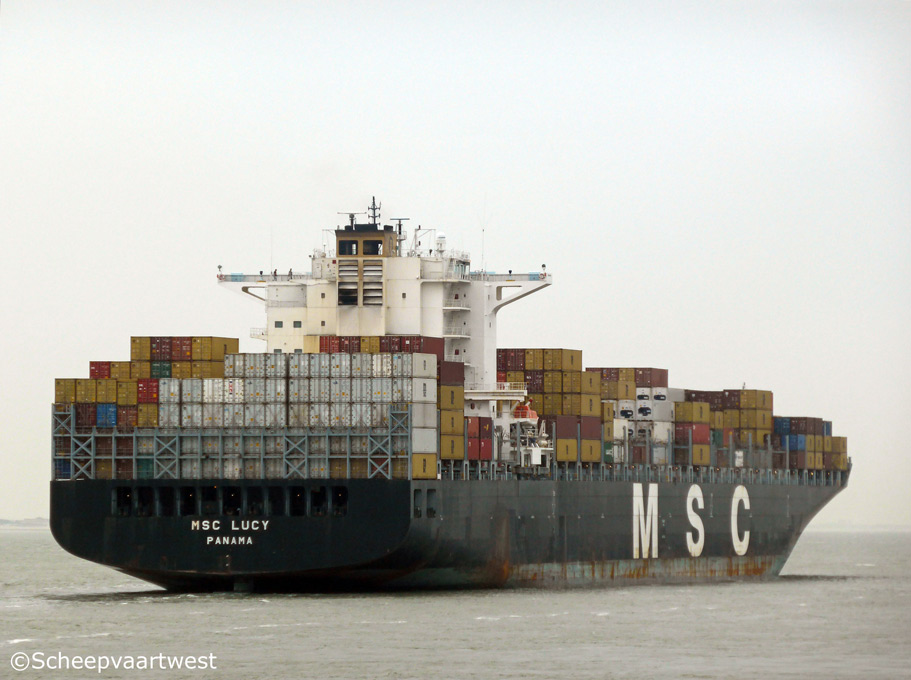

MSC Lucy 02
Westerschelde 12/04/14



Name

MSC LUCY

Type

Cellular containership

IMO-number

9289104

Call sign

3EBC5

Flag

Republic of Panama

Port of registry

Panama City

GT

89.954 t

DWT

Summer: 104.954,7 t

NT

54.268 t

Number of 20ft containers

8.089

Container capacity 14t

6.275

Reefer capacity

550

Length

324,85 m

309,20 m between perpendiculars

Breadth

42,93 m extreme

42,80 m moulded

Draught

14,50 m

Forecastle

61,97 m

Poop

233,06 m

Depth

24,60 m

Speed

Max.: 25,4 knots

Built

2005

Keel laid

25.11.2004

Launch date

03.03.2005

Date of completion

12.05.2005

Builder

Hanjin Heavy Industries & Construction Co., Ltd.
29, 5-ga, Bongnae-dong Youngdo-gu
Busan
Republic of Korea

Yard number

N-129

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x Sulzer 12 RTA 96 C-B - 2 stroke 12 cylinder 960 x 2.500 mm diesel engine- 68.640 kW at 102,0 rpm

Year of manufacture: 2006

Manufacturer: Doosan Engine Co., Ltd.
18, Gongdanro21-gil, Sungsan-gu
Changwon
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 95,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 449,0 m²

Year of manufacture: 2005

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao
People's Republic of China

Electric installations

4x Plants each 450 V - 2.812,5 kVA

1x Plant 450 V - 625 kVA

2x Plants each 24 V - 7 Ah

2x Plants each 24 V - 12 Ah

2x Plants each 24 V - 35 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 400 Ah

Generators

4x MAN 8L27/38 diesel generatorsets each 2.812,5 kVA

Emergency generator

1x Diesel generatorset 625 kVA

Batteries

1x Battery for start emergency engine 200 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 16.800 litres - 32,0 bar

1x Receiver 500 litres - 32,0 bar

3x Receivers each 30 litres - 10,0 bar

1x Receiver 250 litres - 8,8 bar

2x Receivers each 15 litres - 7,7 bar

Bow thruster

1x Transverse thruster 2.600 kW, forward

Tank capacities

Ballast: 26.164 t

Anchor equipment

3x Anchors weight each 18.800 kg

Chain length: 742,50 m

Diameter: 107 mm

Cargo gear

Gearless

Manager

MSC Mediterranean Shipping Company S.r.l.

Operator

MSC - Mediterranean Shipping Company

Owner

Compania Naviera Lucy S.A.

Latest data adjustment

03 June 2016
