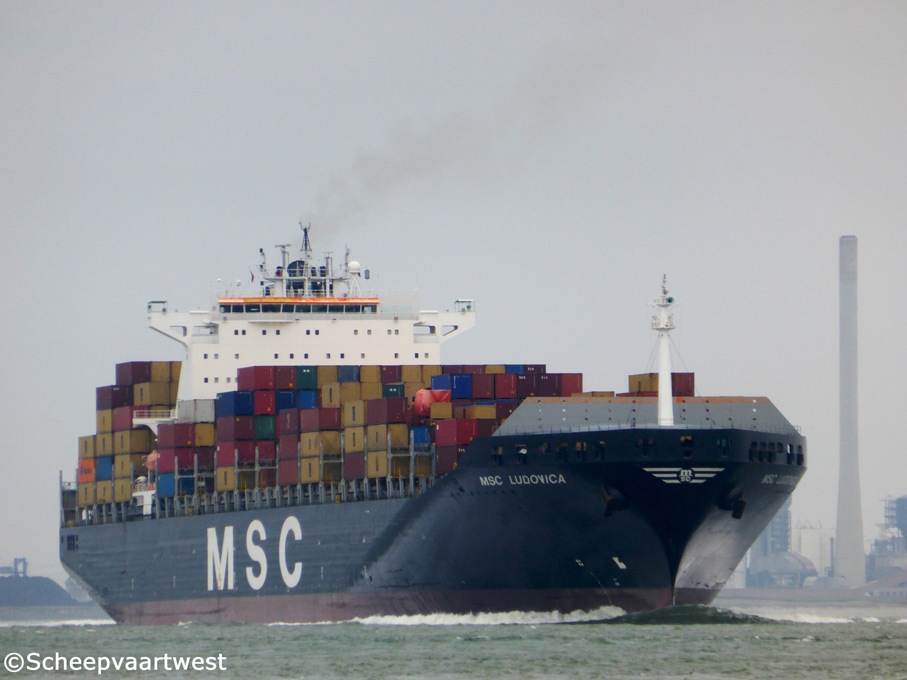

MSC Ludovica 02
Westerschelde 12 October 2014

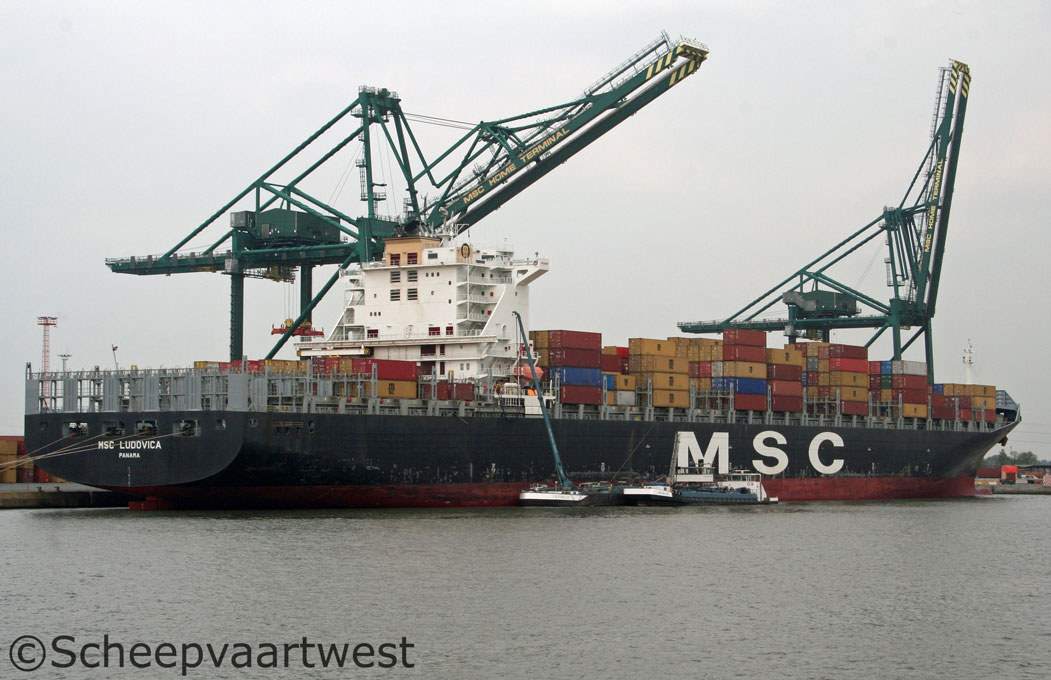

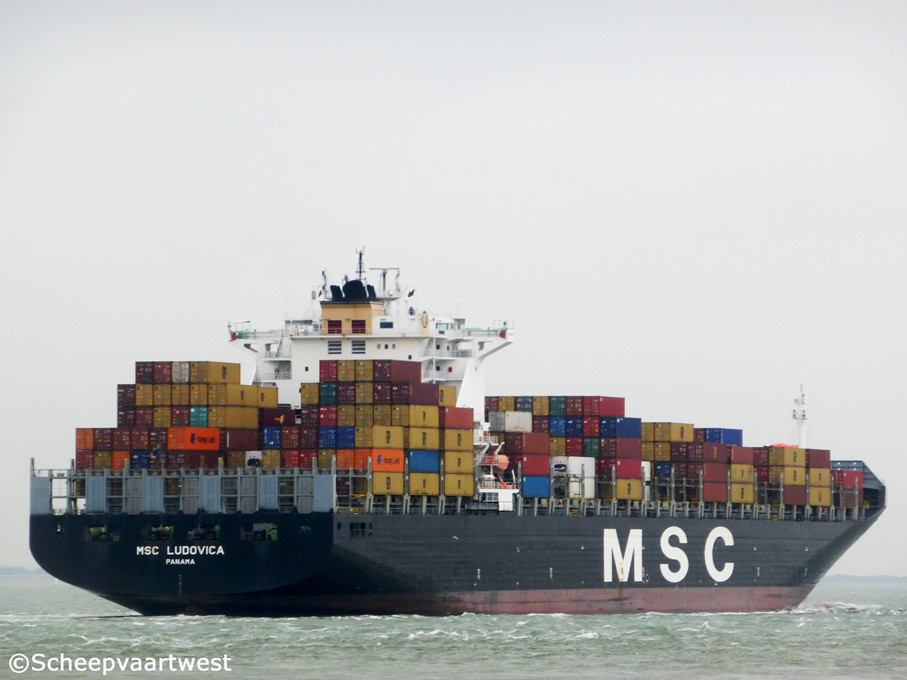

MSC Ludovica 03   MSC Ludovica 01
Westerschelde 12/10/14 Angtwerpen 20/05/11



Name

MSC LUDOVICA

Type

Cellular containership

IMO-number

9251690

Call sign

HPAF

Flag

Republic of Panama

Port of registry

Panama City

GT

75.590 t

DWT

85.882 t

NT

42.233 t

Number of 20ft containers

6.750

Container capacity 14t

5.150

Reefer containers

400

Length

299,99 m overall

289,06 m registered

Breadth

40,00 m registered

Draught

14,50 m

Freeboard

5.415 mm

Depth

24,20 m moulded

Speed

25,0 knots

Built

2003

Keel laid

18.11.2002

Launch date

08.02.2003

Gate of completion

16.04.2003

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard
1, Aju-dong
Geoje-si , Gyeongsangnam-do 656-714
Republic of Korea

Yard number

4086

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 10 K 98 MC-C - 2 stroke 10 cylinder 980 x 2.400 mm diesel engine - 57.100 kW at 104,0 rpm

Year of manufacture: 2002

Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Propeller

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 137,8 m²

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 919,3 m²

Year of manufacture: 2002

Manufacturer: KangRim Ind. Co., Ltd. (1st Factory)
505, Sinpyung-dong, Saha-gu
Busan
Republic of Korea

Electric installations

4x Plants each 440/220 V - 2.625 kVA

1x Plant 440 V - 688 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Diesel generators

4x Wärtsilä 6R32LND diesel generatorsets each 2.625 kVA / 2.100 kW

Emergency generator

1x Diesel generatorset 688 kVA

Compressed air receivers

2x Receivers each 22.000 litres - 32,4 bar

2x Receivers each 200 litres - 32,4 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

1x Transverse thruster - 2.000 kW, forward

Tank capacities

Fuel oil: 7.849 m³

Water ballast: 19.687 m³

Anchor equipment

3 Anchors weight each16.900 kg

Chain length: 742,50 m

Cargo gear

Gearless

Crew size

29

Manager

MSC Ship Management (Hong Kong) Ltd.
45th Floor, The Centre 99, Queens Road Central
Hong Kong
Hong Kong Special Administration Region of P.R. China

Operator

MSC - Mediterranean Shipping Company

Owner

Marmose Investments S.A.
c/o Eskildsen & Eskildsen
WTC, Calle 50 No. 102 Edificio Universal No. 50 Planta Baja No. 6
Panama City 5
Republic of Panama

Latest data adjustment

09 December 2014
