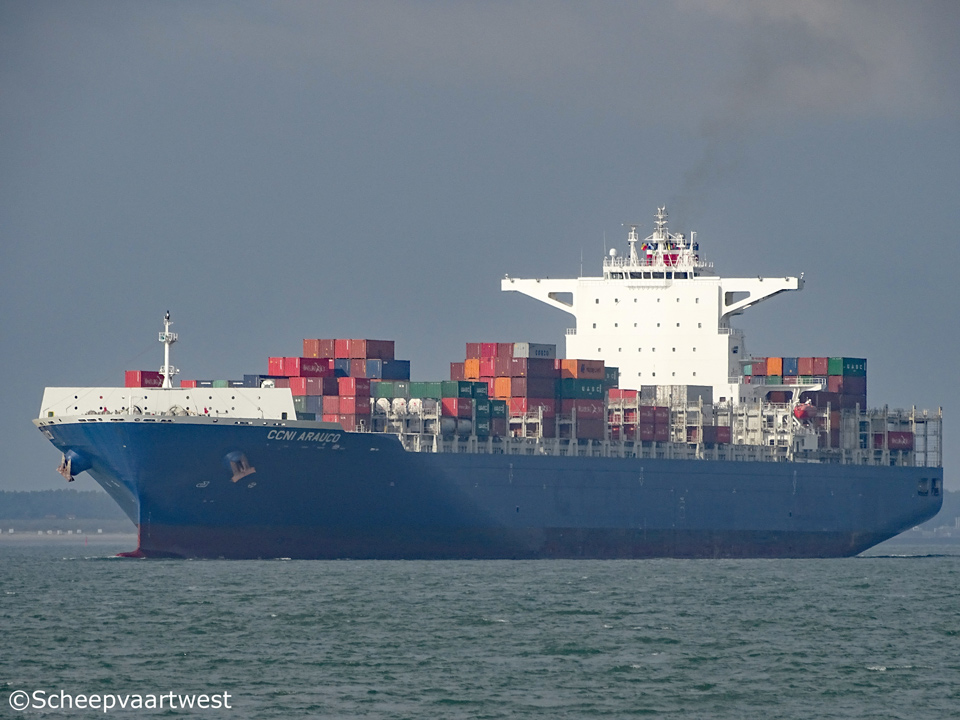

CCNI Arauco 02

Westerschelde 05 August 2017

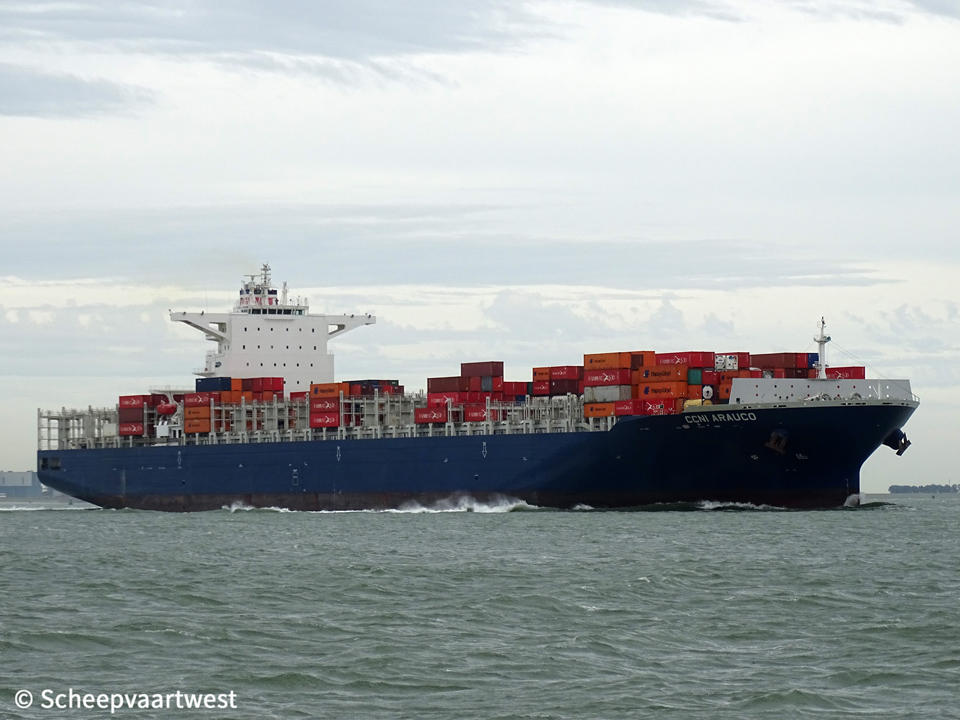

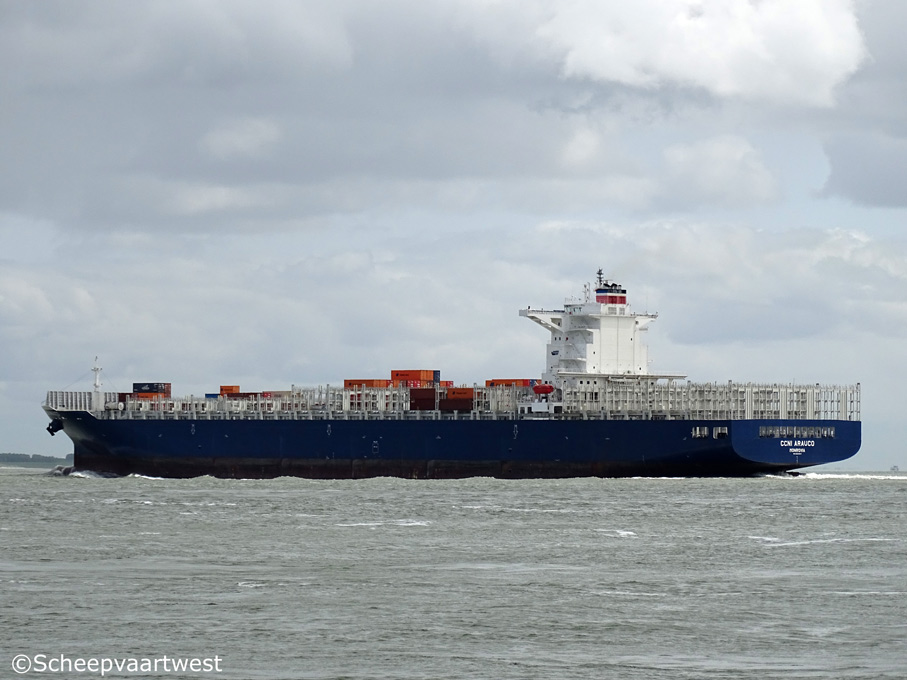

CCNI Arauco 01   CCNI Arauco 03
Westerschelde 15/05/16 Westerschelde 10/07/16



Name

CCNI ARAUCO

Type

Cellular containership

IMO-number

9683843

Call sign

D5GZ3

Flag

Liberia

Port of registry

Monrovia

GT

95.138 t

DWT

112.588 t

NT

54.877 t

Number of 20ft containers

In hold: 3.846

On deck: 5.184

Total: 9.030

Number of 40ft containers

In hold: 400

On deck: 600

Total: 1.000

Container capacity 14t

7.340

Reefer capacity

1.200

Length

299,98 m overall

286,01 m between perpendiculars

Breadth

48,34 m extreme

48,21 m moulded

Draught

14,50 m

Depth

24,80 m

Speed

Max.: 22,1 knots at 12,50 m draft with 85 % MCR output 36.031,5 kW

Built

2015

Keel laid

28.11.2013

Launch date

09.05.2014

Date of completion

28.01.2015

Builder

HHIC - Hanjin Heavy Industries & Construction Co., Ltd.
Subic Bay
Philippines

Yard number

PN-093

Hull material

Steel

Main engine

1x MAN-B&W 9G80ME-C9.2 - 9 cylinder diesel engine 42.390 kW

Manufacturer: MAN Diesel & Turbo, Filial of MAN Diesel & Turbo SE - Germany

Propellers

1x Fixed propeller

6 blades - Diameter: 9.300 mm

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Generators

2x Hyundai/HimSen 8H32/40 main diesel generatorset each 3.400 kW at 720 rpm

2x Hyundai/HimSen 7H32/40 main diesel generatorset each 2.975 kW at 720 rpm

Emergency generator

1x Diesel generatorset 300 kW at 1.800 rpm

Bow thruster

3.000 kW

4 Blades - Diameter: 2.950 mm

Number of holds

8

Hold 1: dim. 30,58 x 33,14 m

Hold 2: dim. 29,08 x 43,40 m

Hold 3: dim. 28,88 x 43,40 m

Hold 4: dim. 28,88 x 43,40 m

Hold 5: dim. 28,88 x 43,40 m

Hold 6: dim. 28,88 x 43,40 m

Hold 7: dim. 29,08 x 43,40 m

Hold 8: dim. 41,52 x 43,40 m

Number of hatches

6

1 x Hatch pontoon type 12,64 x 18,02

1 x Hatch pontoon type 12,64 x 33,14

1 x Hatch pontoon type 12,64 x 38,18

2 x Hatch pontoon type 12,64 x 43,40

1 x Hatch pontoon type 12,64 x 13,53

Tank capacities

Ballast: 33.386,1 m³

Heavy fuel: 5.600 m³

Fresh water: 500 m³

Anchor equipment

Length: 770,00 m

Diameter: 114 mm

Cargo gear

Gearless

Accommodation

For a crew of 28 persons with heating, ventilation and airconditoning

Manager

NSC Shipping GmbH & Cie. KG
Van-der-Smissen-Str. 9

22767 Hamburg
Germany

Operator

CCNI - Cia. Chilena de Nav. Interoceania

Owner

Arauco Navigation Ltd.

Latest data adjustment

12 October 2017
