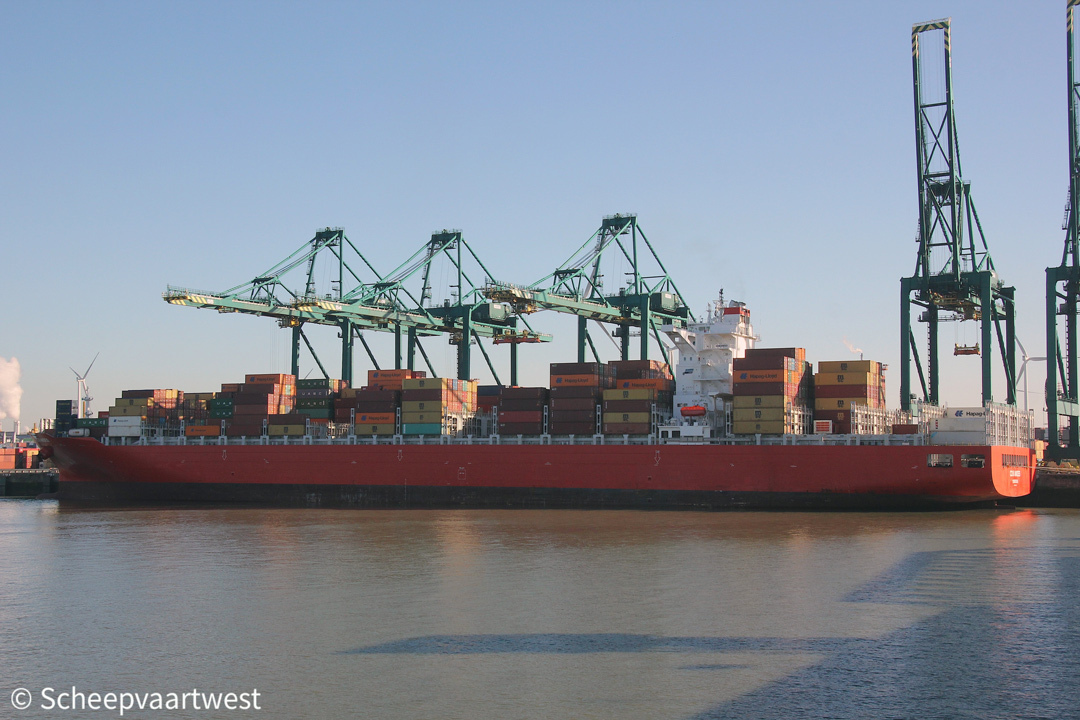

CCNI Andes 01

Antwerpen 15 November 2018

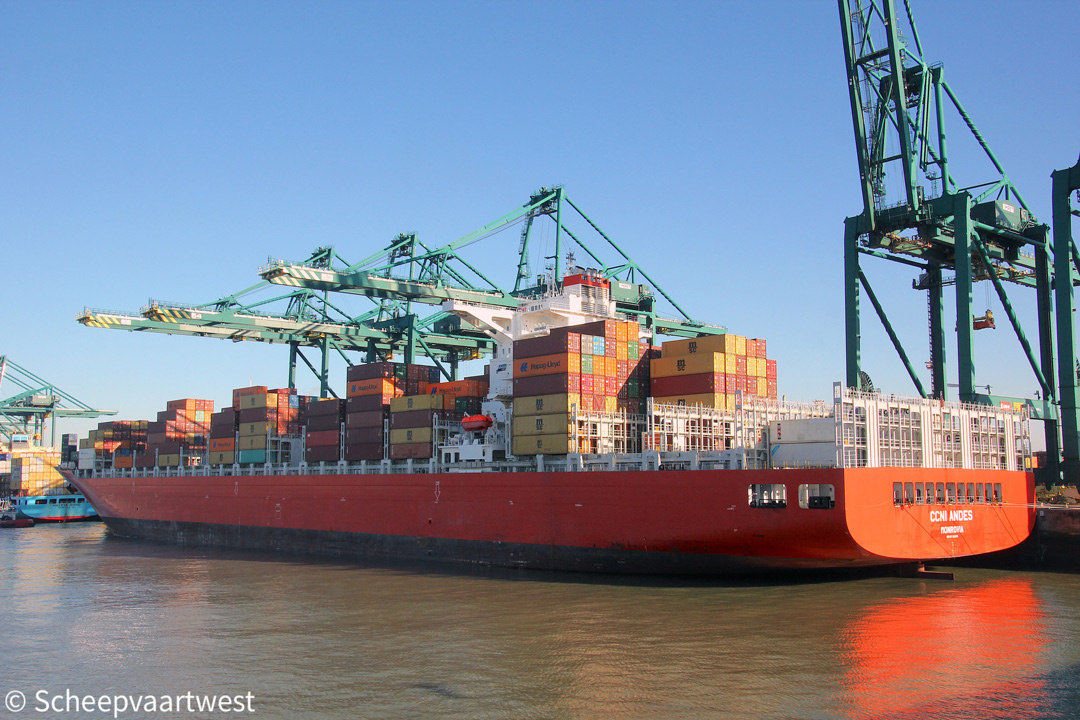

CCNI Andes 02
Antwerpen 15/11/18



Name

CCNI ANDES

Type

Cellular containership

IMO-number

9718935

Call sign

D5IN3

Flag

Liberia

Port of registry

Monrovia

GT

95.138 t

DWT

Summer: 113.212,8 t

NT

54.877 t

Number of 20ft containers

In hold: 3.846

On deck: 5.184

Total: 9.030

Number of 40ft containers

In hold: 400

On deck: 600

Total: 1.000

Container capacity 14t

7.340

Reefer capacity

1.200

Length

299,97 m overall

286,00 m between perpendiculars

Breadth

48,34 m extreme

Draught

Max: 14,52 m

Speed

Max: 22,1 knots

Built

2015

Builder

HHIC-Phil Inc (Hanjin Heavy Industries & Construction)
Subic Bay
Philippines

Yard number

094

Hull material

Steel

Main engine

1x MAN-B&W 9G80ME-C9.2 - 9 cylinder combustion engine output 42.390 kW

Propellers

1x Fixed propeller diameter 9,300 m

6 Blades

Generators

2x Hyundai/HimSen 8H32/40 Main diesel generatorsets each 3.840 kW at 720 rpm

2x Hyundai/HimSen 7H32/40 Main diesel generatorsets each 3.360 kW at 720 rpm

Emergency generator

1x Diesel generatorset 300 kW at 1.800 rpm

Bow thruster

3.000 kW diameter 2.950 mm 4 blades

Number of holds

Hold 1: 30,58 x 33,14 m

Hold 2-7: 29,08 x 43,40 m

Hold 3-4-5-6: 28,88 x 43,40 m

Hold 8: 41,52 x 43,40 m

Number of hatches

6

1x: 12,64 x 18,02 m

1x: 12,64 x 33,14 m

1x: 12,64 x 38,18 m

2x: 16,64 x 43,40 m

1x: 12,64 x 15,53 m

Hatch type

Pontoon

Tank capacities

Heavy fuel oil: 6.187,83 m³

Lube oil: 547,04 m³

Ballast water: 33.386,11 m³

Fresh water: 530,9 m³

Cargo gear

Gearless

Crew size

28

Manager

NSC Shipping Gmbh & Cie KG
Van-der-Smissen-Strasse 9
22767 Hamburg
Germany

Operator

CCNI

Registered owner

Andes Navigation Ltd.

Latest data adjustment

25 November 2018
