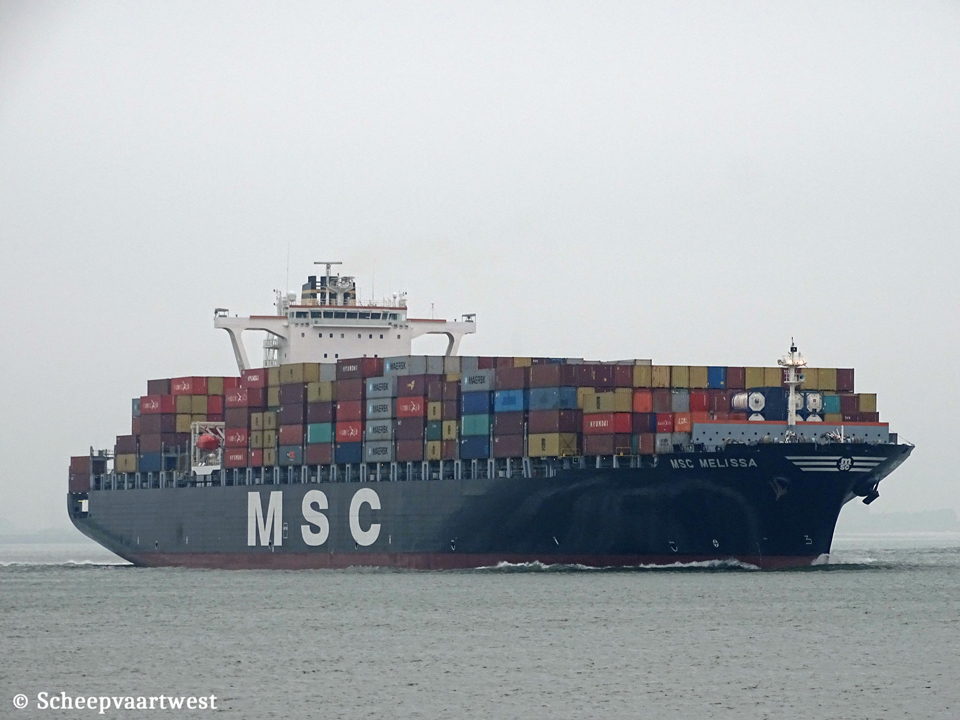

MSC Melissa IMO 9226918 04

Westerschelde 07 May 2017

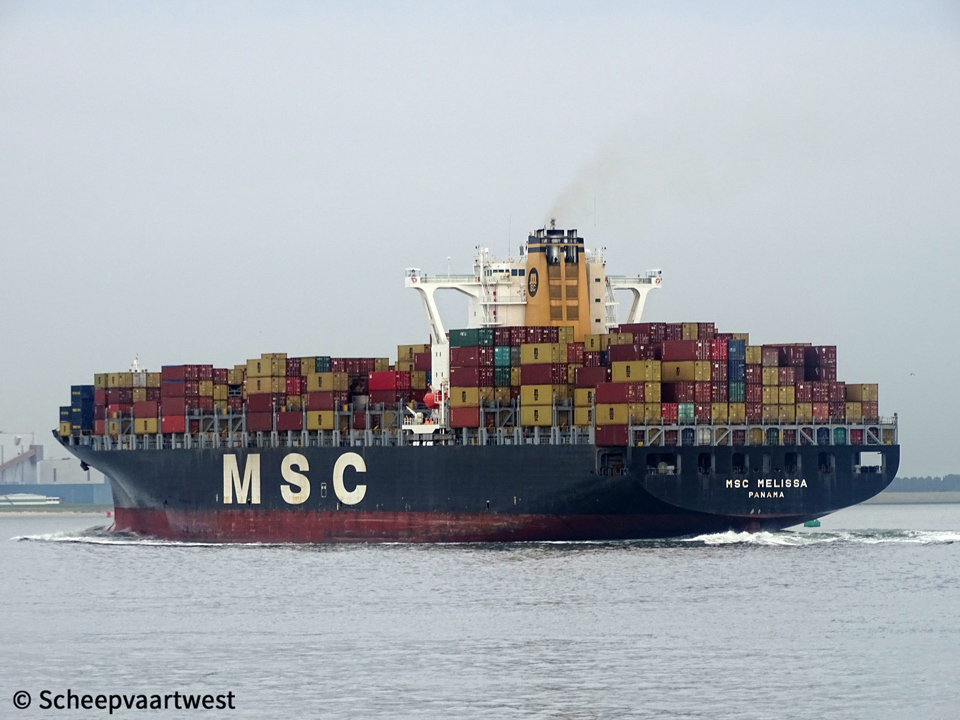

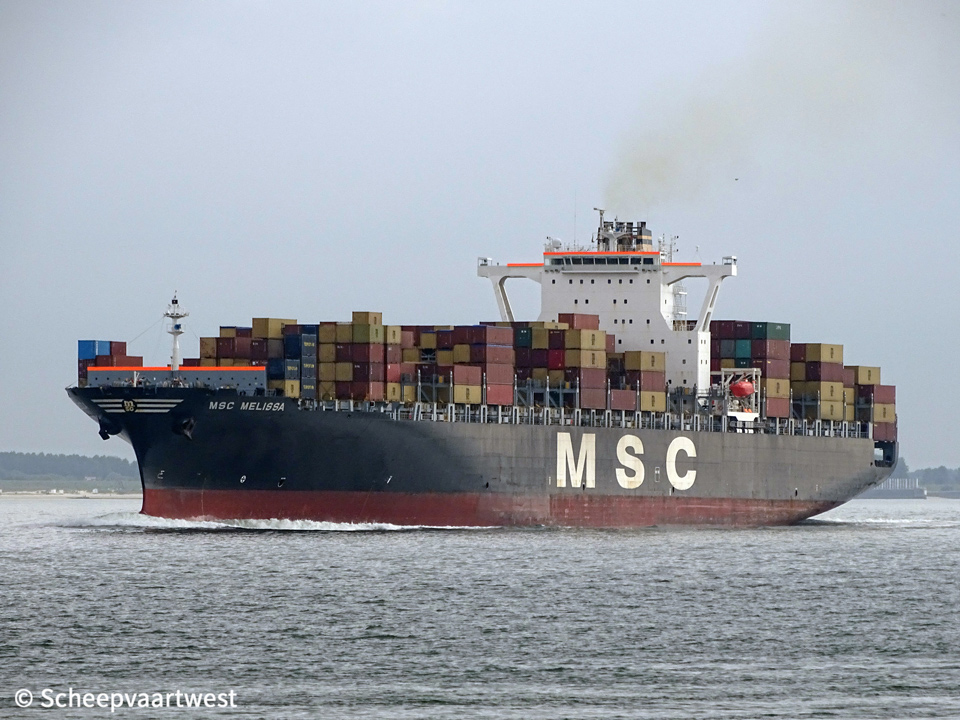

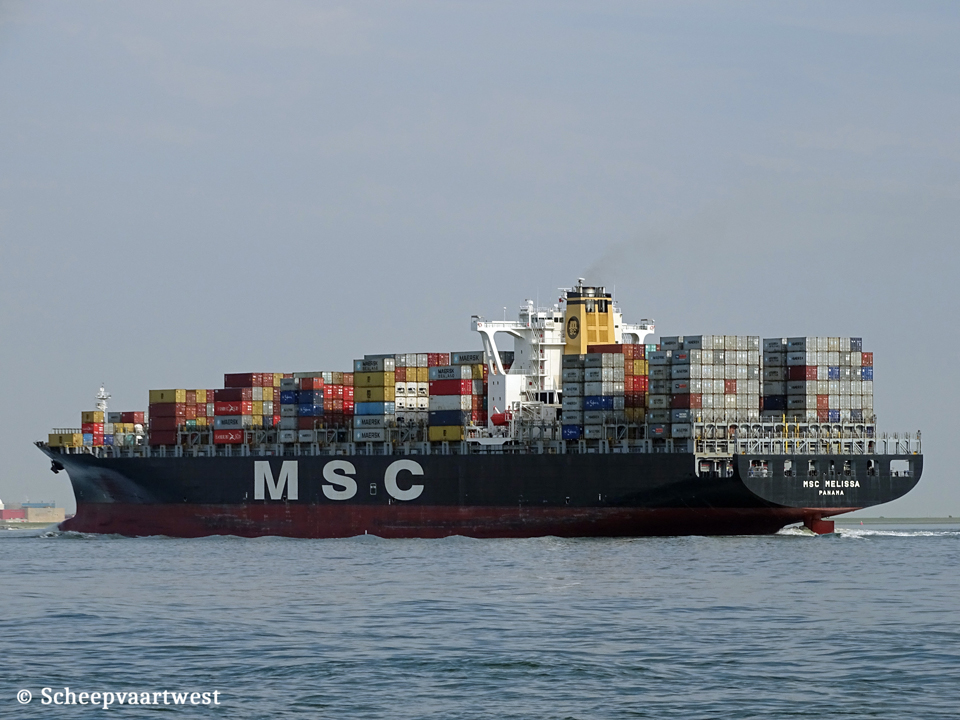

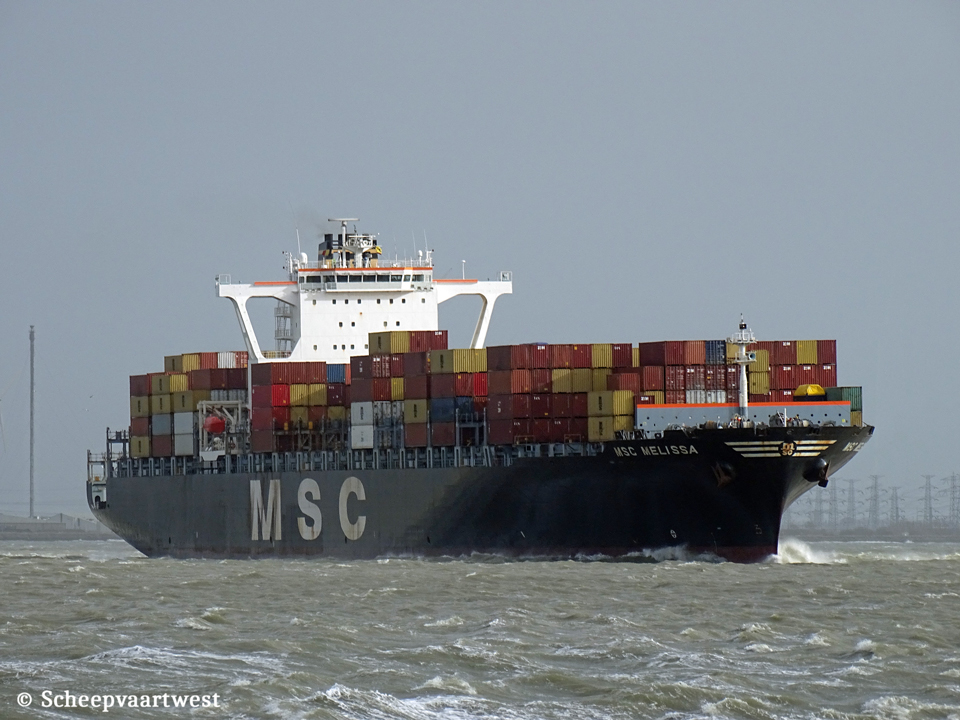

MSC Melissa 02   MSC Melissa 03   MSC Melissa 01   MSC Melissa IMO 9226918 05   MSC Melissa IMO 9226918 06
Westerschelde 19/06/18   Westerschelde 19/06/18 Westerschelde 09/04/16   Westerschelde 08/02/16   Westerschelde 22/08/17


Name

MSC MELISSA

Type

Cellular containership

IMO-number

9226918

Classification

DNV

Call sign

H9VY

Flag

Republic of Panama

Port of registry

Panama City

GT

73.819 t

DWT

Summer: 85.786 t

NT

47.138 t

Number of 20ft containers

6.730

Container capacity 14t

5.150

Reefer capacity

400

Length

303,89 m overall

292,00 m between perpendiculars

Breadth

40,00 m extreme

Draught

14,50 m

Keel to mast end

59,54 m

Freeboard

5.370 mm

Depth

19,85 m

Speed

Max.: 24,8 knots

Built

2002

Keel laid

20/08/2001

Launch date

30/11/2001

Date of completion

01/01/2002

Builder

Hyundai Heavy Industries Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan, Kyongsang-namdo

Republic of Korea

Yard number

H1352

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN/B&W/Hyundai 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm combustion engine 57.100 kW / 77.633 hp at 104,0 rpm

Year of manufacture: 2001

Manufacturer: Hyundai Heavy Industries Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan, Kyongsang-namdo

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 68,0 m²

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 894,0 m²

Year of manufacture: 2001

Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory)

505, Sinpyung-dong, Saha-gu

Busan, Kyongsang-namdo

Republic of Korea

Electric installations

4x Plants each 440/220 V - 2.625 kVA

1x Plant 440 V - 625 kVA

2x Plants each 24 V - 42 Ah

2x Plants each 24 V - 200 Ah

4x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 500 Ah

Generators

4x MAN-B&W 8L27/38 main diesel generatorsets each 2.625 kVA

Emergency generator

1x Cummins VTA28D diesel generatorset 625 kVA

Compressed air receivers

2x Receivers each 22.000 litres - 33,0 bar

2x Receivers each 250 litres - 33,0 bar

1x Receiver 250 litres - 7,7 bar

Bow thruster

1x Variable pitch propeller LIPS - 2.500 kW, forward

Tank capacities

Ballast: 17.736,1 m³

Anchor equipment

3x Anchors weight each 16.900 kg

Length: 742,00 m

Diameter: 100 mm

Cargo gear

Gearless

Crew size

32

ISM & commercial manager

MSC Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa, 29

80063 Piano di Sorrento

Napoli

Italy

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Avantage Enterprises, Inc. - Republic of Panama

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

21 August 2022
