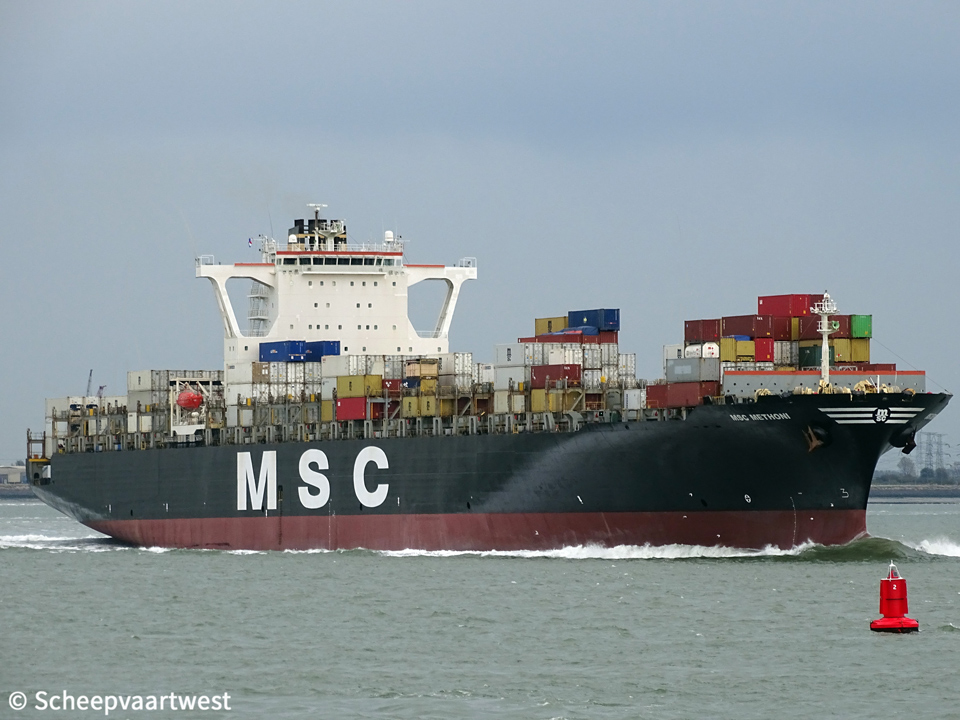

MSC Methoni 01

Westerschelde 01 November 2019



Name

MSC METHONI

Previous names

2003 - 10/2011 MSC Viviana

Type

Cellular containership - Panamax

IMO-number

9256755

Call sign

D5AN2

Flag

Liberia

Port of registry

Monrovia

Previous flags

2003 - 2011 Republic of Panama, Panama City - Call sign:

GT

73.819 t

DWT

Summer: 85.824 t

NT

47.138 t

Number of 20ft containers

6.750

Container capacity 14t

6.350

Reefer capacity

400

Length

304,00 m overall

292,00 m between perpendiculars

Breadth

40,00 m extreme

Draught

Max: 14,50 m

Depth

24,80 m

Speed

Max: 24,8 knots

Built

2003

Keel laid

22/01/2003

Launch date

12/04/2003

Date of completion

13/06/2003

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

H1458

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

2

Main engine

1x HHI/MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm combustion engine 57.100 kW / 77.600 hp at 104,0 rpm

Builder: Hyundai Heavy Ind. Co., Ltd. licensed Man B&W diesel engine

Propellers

1x Fixed propeller

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 68,0 m²

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 894,0 m²

Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory)

Generators

4x MAN-B&W 8L27/38 main diesel generatorsets each 2.100 kW / 2.625 kVA

Emergency generator

1x Cummins VTA28D diesel generatorset 625 kVA

Compressed air receivers

2x Receivers each 22.000 litres - 33,0 bar
2x Receivers each 250 litres - 33,0 bar
1x Receiver 250 litres - 7,7 bar

Bow thruster

2.500 kW

Tank capacities

Ballast: 17.736 m³

Anchor equipment

3x Anchors weight each 16.900 kg

Length: 742,50 m

Diameter: 100 mm

Cargo gear

Gearless

Crew size

32

Manager

V Ships Greece Ltd.

Operator

MSC - Mediterranean Shipping Co.
Chemin Rieu, 12-14
1208 Geneva
Switzerland

Registered owner

Virna Shipping Co.

Latest data adjustment

11 November 2019
