Westerschelde 22 August 2017 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 06/03/16 | Westerschelde 06/03/16 | Westerschelde 24/12/16 | Westerschelde 24/12/16 | Westerschelde 26/05/16 | Westerschelde 04/06/15 | |||||
 |
 |
 |
||||||||
| Westerschelde 04/06/15 | Westerschelde 06/07/20 | Westerschelde 12/03/17 | ||||||||
|
Name |

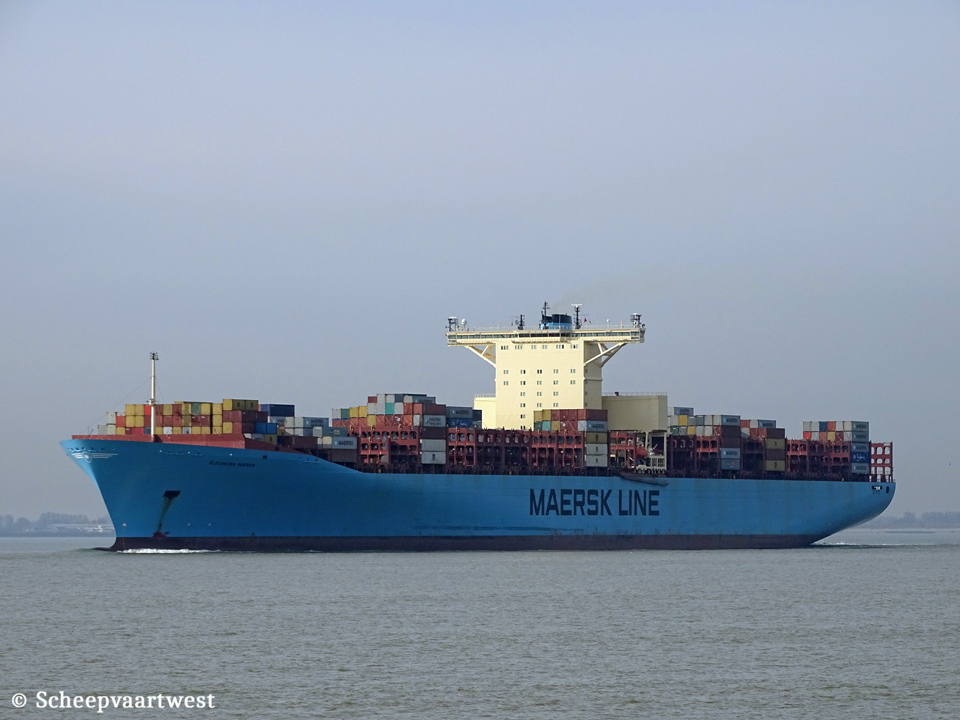

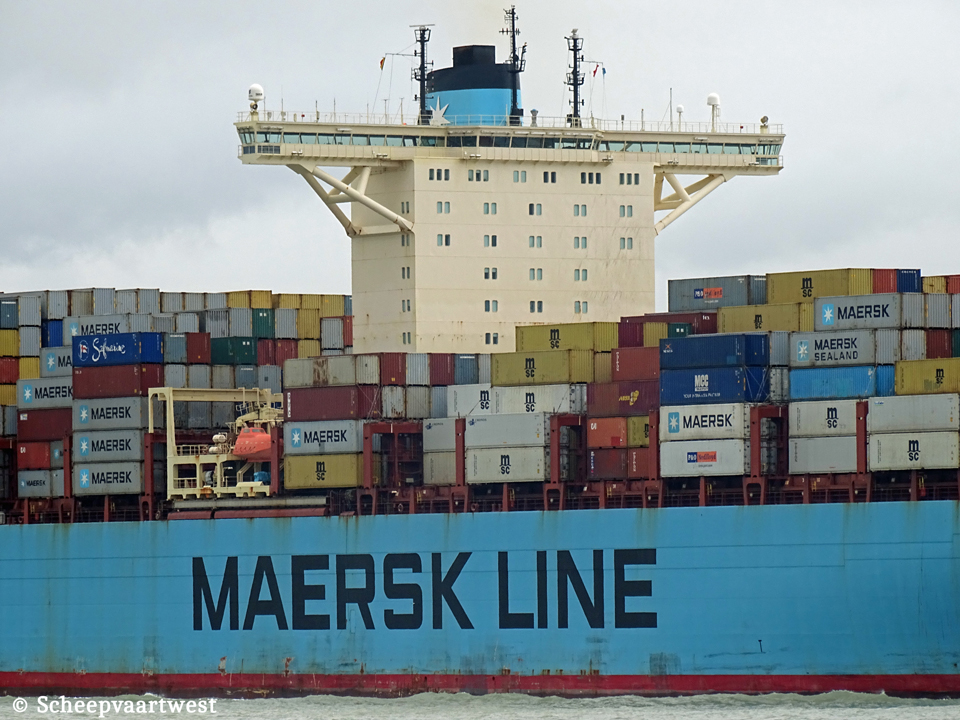

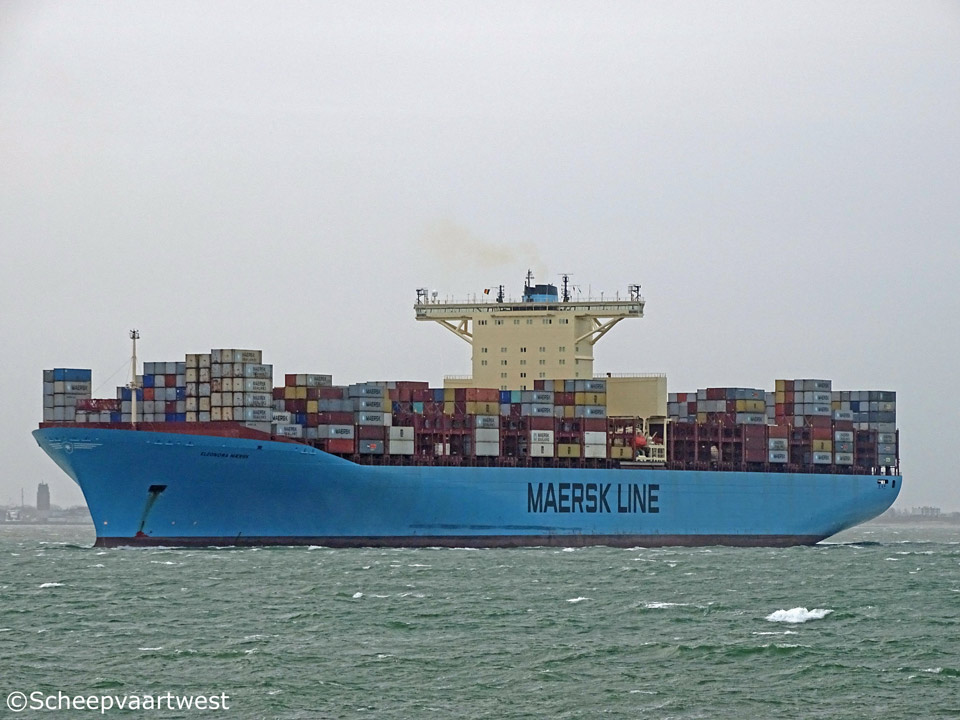

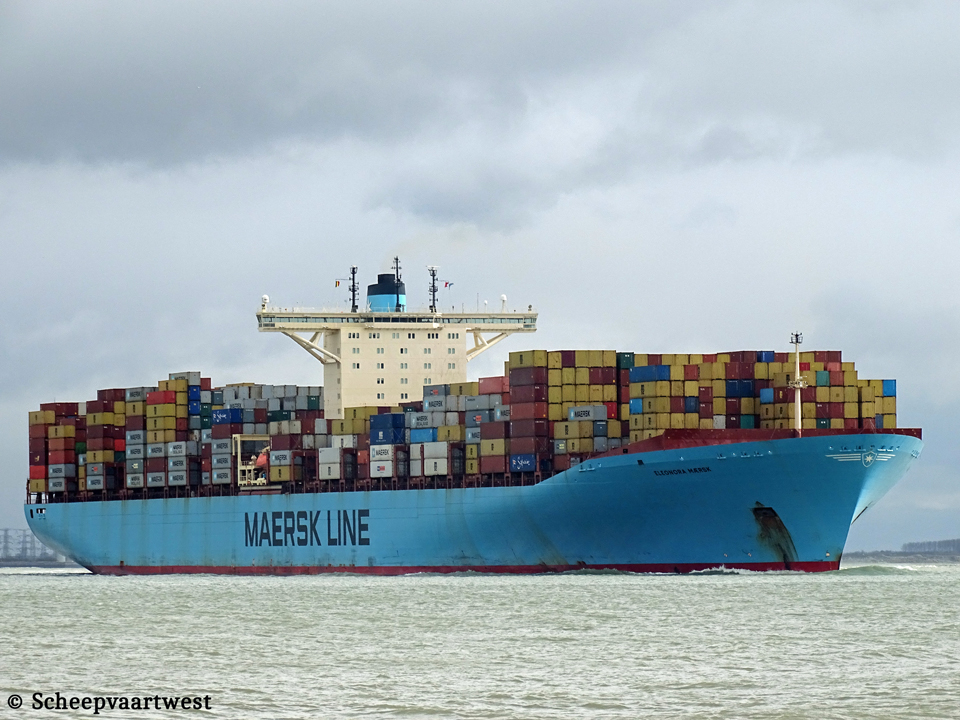

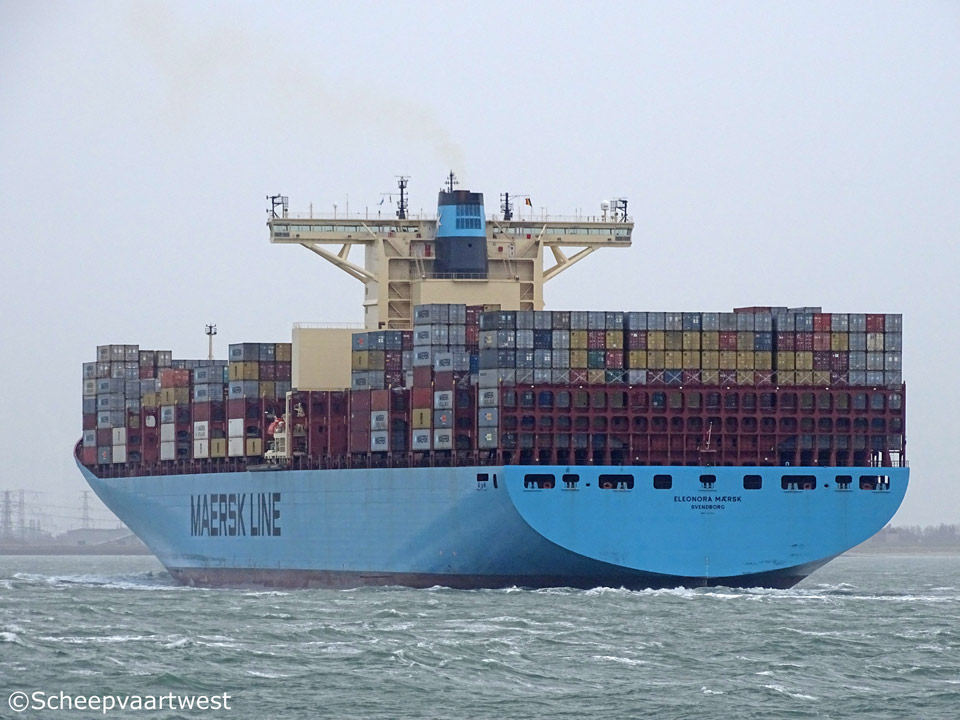

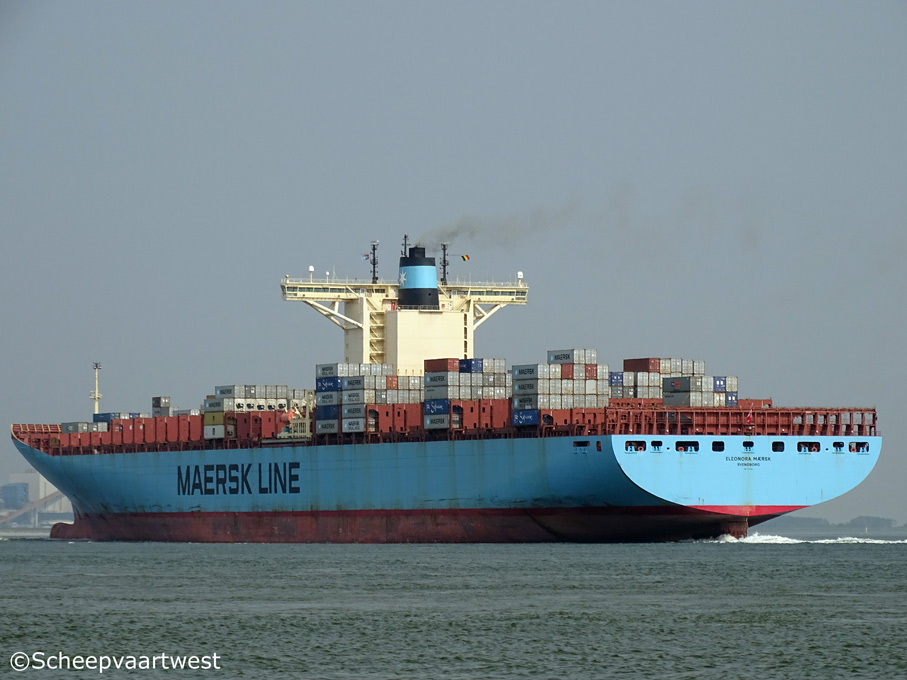

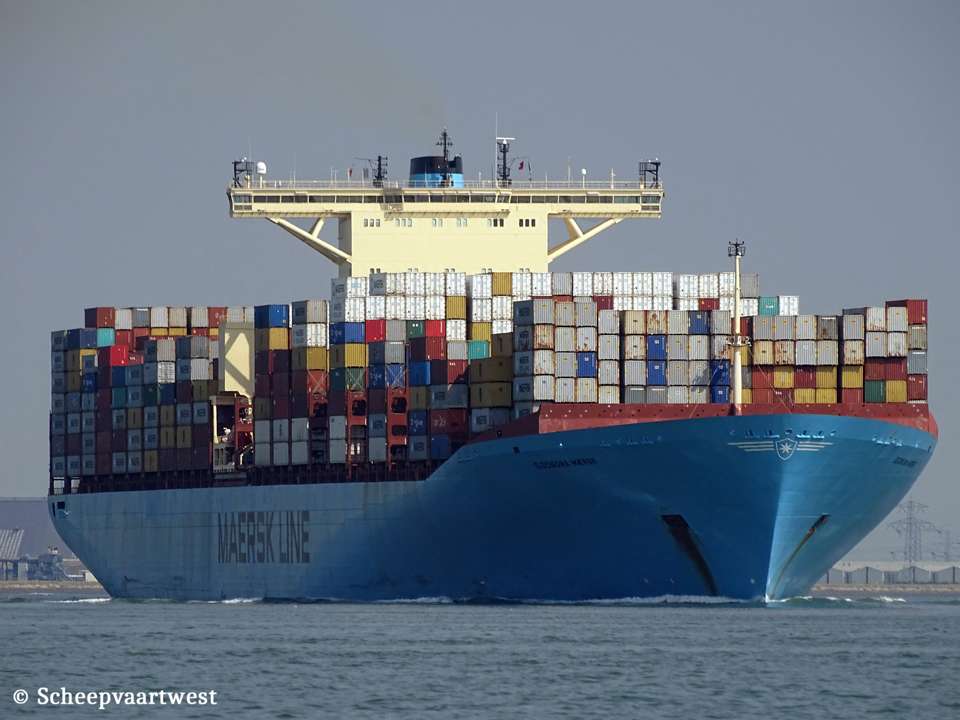

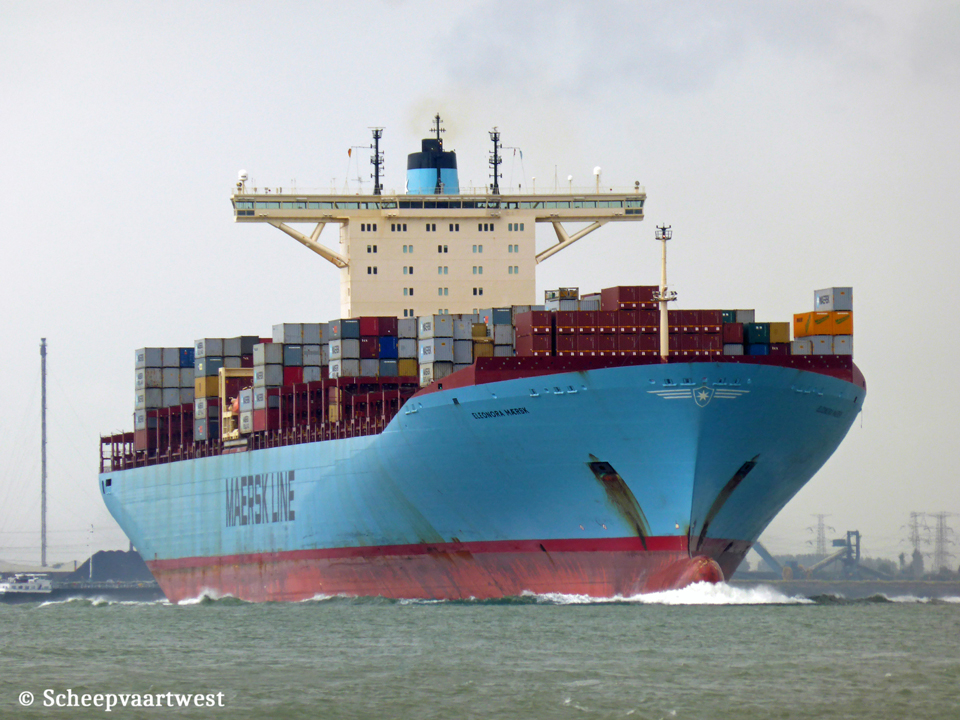

ELEONORA MAERSK |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9321500 |
|
Call sign |
OVXP2 |
|
Flag |
Denmark |
|
Port of registry |
Svendborg |
|
GT |
170.794 Suez: 170.916,04 |
|
DWT |
Summer: 152.800 t |
|
NT |
55.396 Suez: 151.687,66 |
|
Number of 20ft containers |
15.550 |
|
Container capacity 14t |
11.000 |
|
Reefer capacity |
1286 |
|
Length |
397,71 m overall 376,00 m between perpendiculars |
|
Breadth |
56,40 m moulded |
|
Draught |
Max.: 16,50 m |
|
Freeboard |
6.670 mm |
|
Depth |
30,20 m moulded |
|
Speed |
Max.: 25,5 knots |
|
Built |
2007 |
|
Keel laid |
05/07/2006 |
|
Launch date |
09/11/2006 |
|
Delivery date |
12/01/2007 |
|
Builder |
Odense Staalskibsvaerft Lindo Munkebo Denmark |
|
Yard number |
L205 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Bulkheads |
Non tight: 11 Water tight: 10 Oil tight: 13 |
|
Main engine |
1x Doosan-Sulzer 14RT-FLEX96C - 2 stroke 14 cylinder 960 x 2.500 mm combustion engine 80.080 kW / 108.878 hp at 102, rpm Manufacturer: Doosan Engine Co. Ltd. |
|
Propellers |
1x Solid propeller - 6 blades Manufacturer: Mecklenburger Metallguss GmbH |
|
Shaft motor |
2x Siemens each 9.000 kW |
|
Boilers |
Vertical water tube oil fired auxiliary boiler - 14,0 bar HP exhaust gas boiler - 14,0 bar LP exhaust gas boiler - 12,0 bar Unfired exhaust gas boiler - 15,0 bar Manufacturer: Aalborg Industries Ltd. |
|
Generators |
1x Combo power / steam turbine generator - 8.500 kW 5x MaK 9M32C auxiliary generators each 4.148 kW Manufacturer: Sem Drasov |
|
Bow thruster |
2x 1.750 kW, forward 2x 1.750 kW, aft |
|
Number of tanks |
Ballast: 31 Fuel oil: 22 Lubricating oil: 8 Sea water: 7 Fresh water: 7 Waste water: 6 Sludge: 6 Diesel oil: 6 Chain: 2 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel Oil: 405 m³ Freshwater: 752,6 m³ Fuel Oil: 16.920,3 m³ Hydraulic Oil: 5,7 m³ Lube Oil: 652,1 m³ Tank Ballast: 60.338,2 m³ |
|
Lifting equipment |
1x Monorail stores crane - SWL 20,0 t Manufacture: Dreggen A/S 2x Overhead engine room crane - SWL 12,5 t Manufacture: Danish Crane Building A/S 2x Stores/Bunker/Suez boat pedestal crane - 5,0 t Manufacture: Dreggen A/S |
|
Cargo gear |
Gearless |
|
Manager |
A.P. Möller |
|
Operator |
Maersk Line Esplanaden 50 DK-1263 Copenhagen K Denmark |
|
Owner |
A.P.Möller- Maersk A/S |
|
Registered owner |
Maersk Line A/S |
|
Latest data adjustment |
04 May 2023 |
