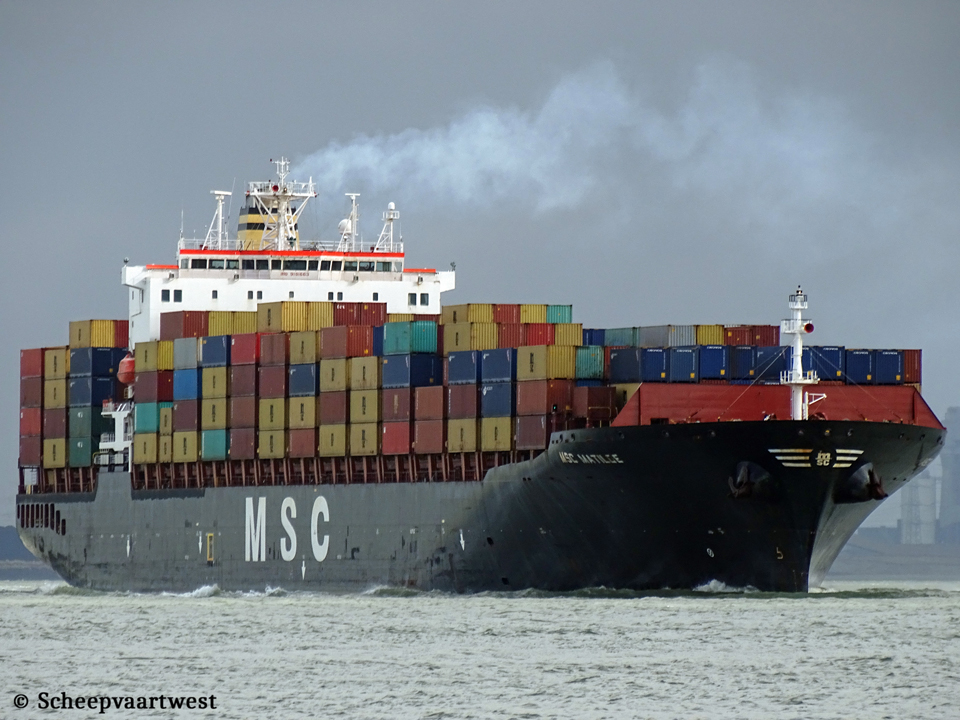

MSC Matilde IMO 9181663 06

Westerschelde 03 April 2017

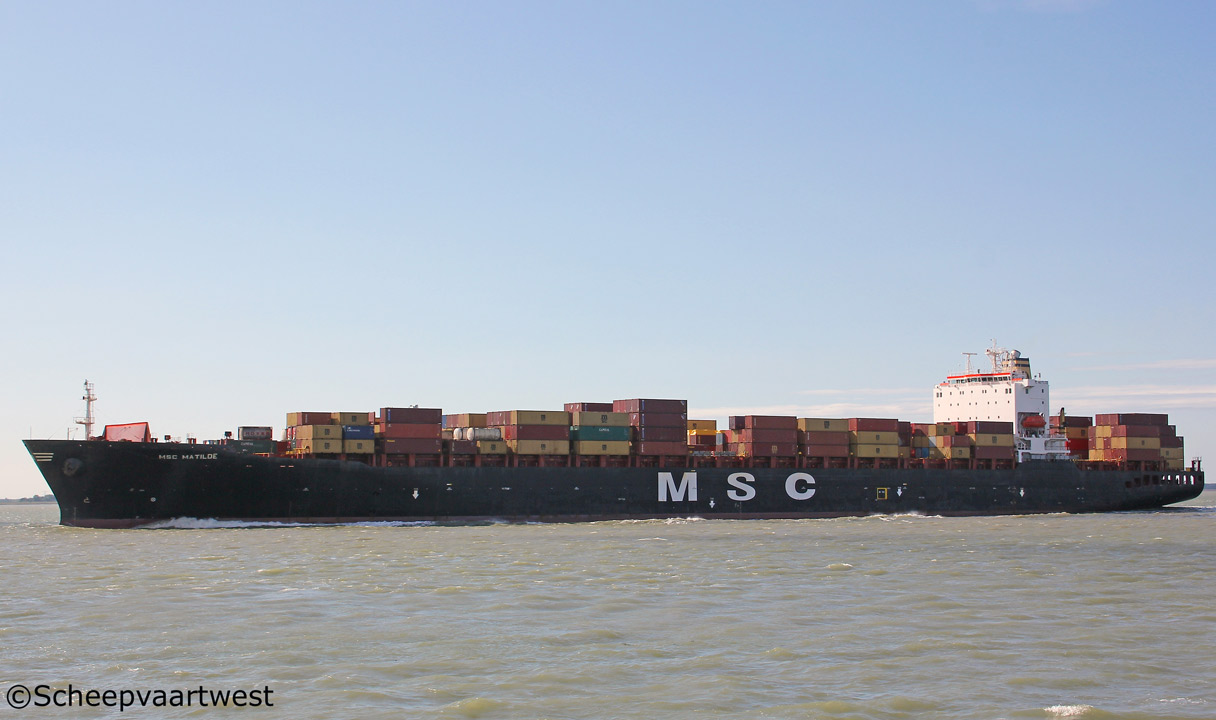

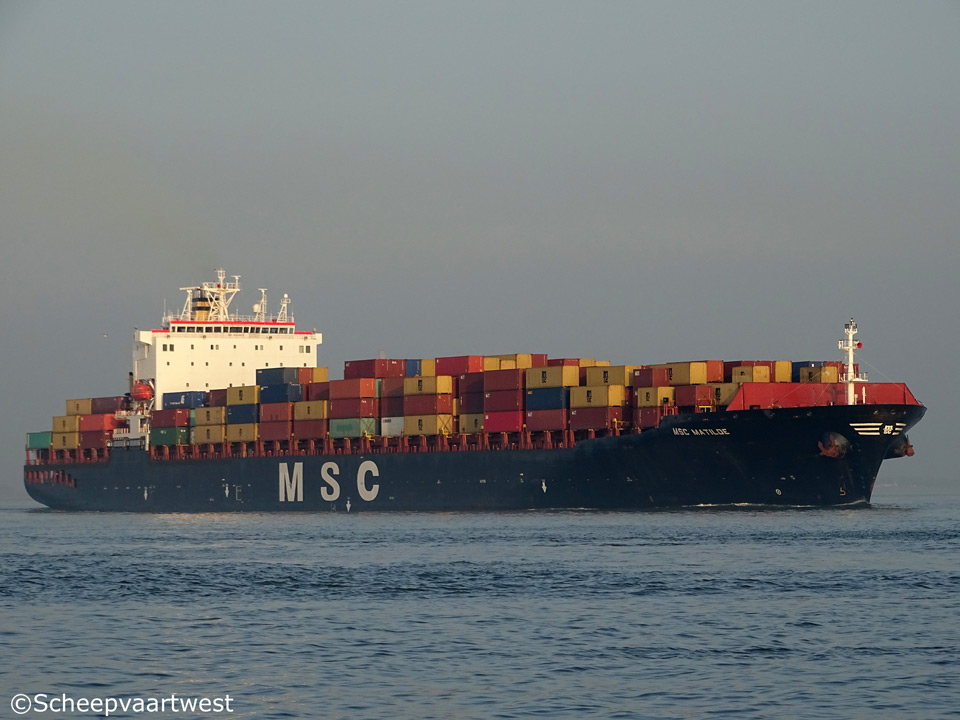

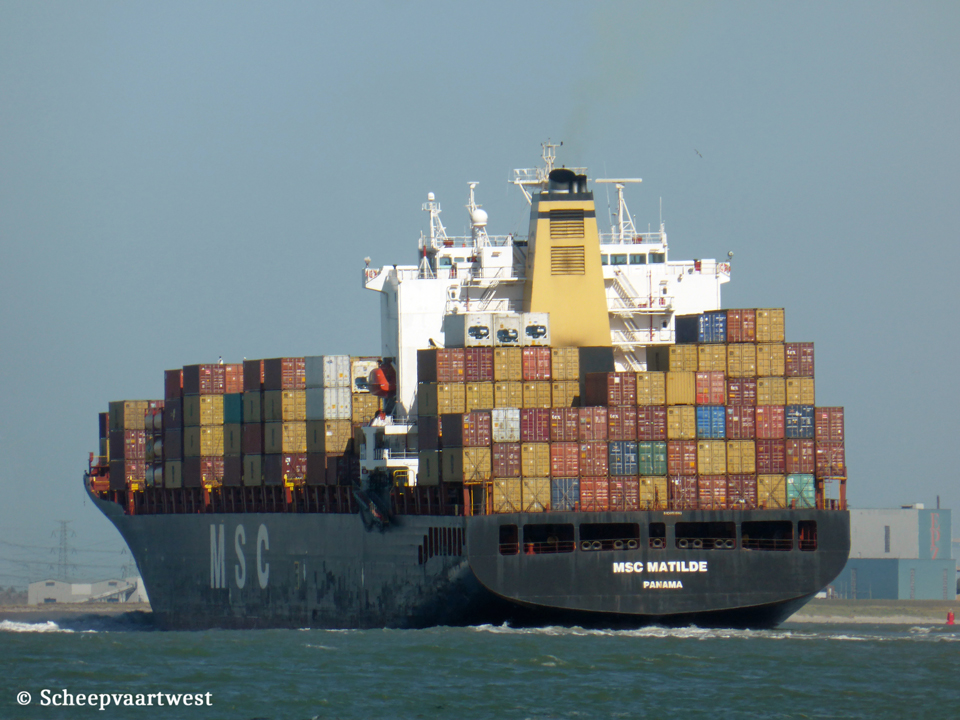

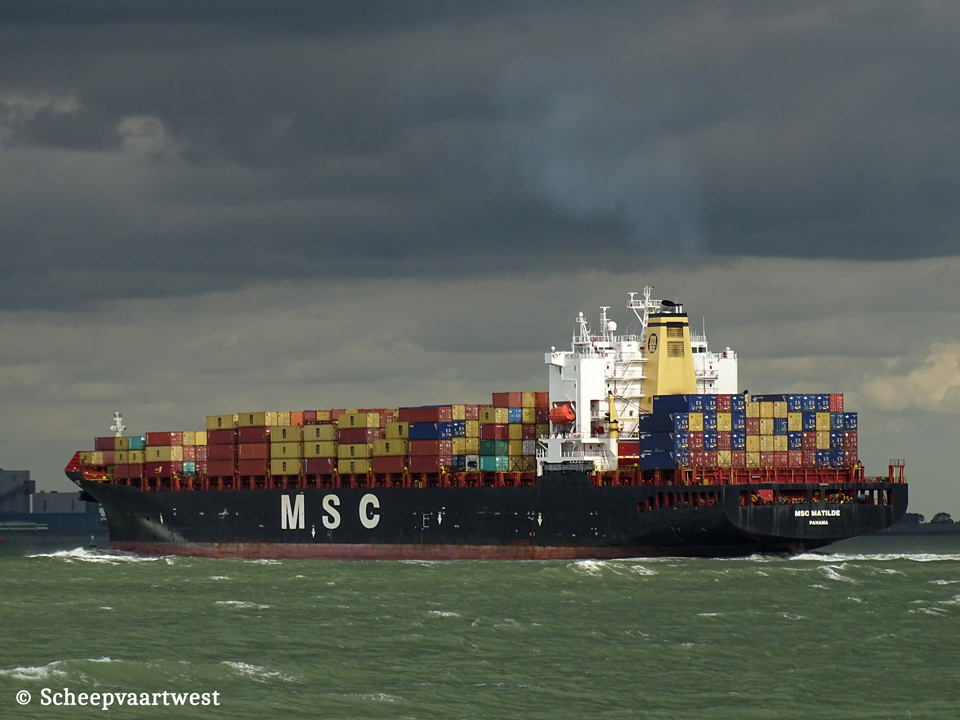

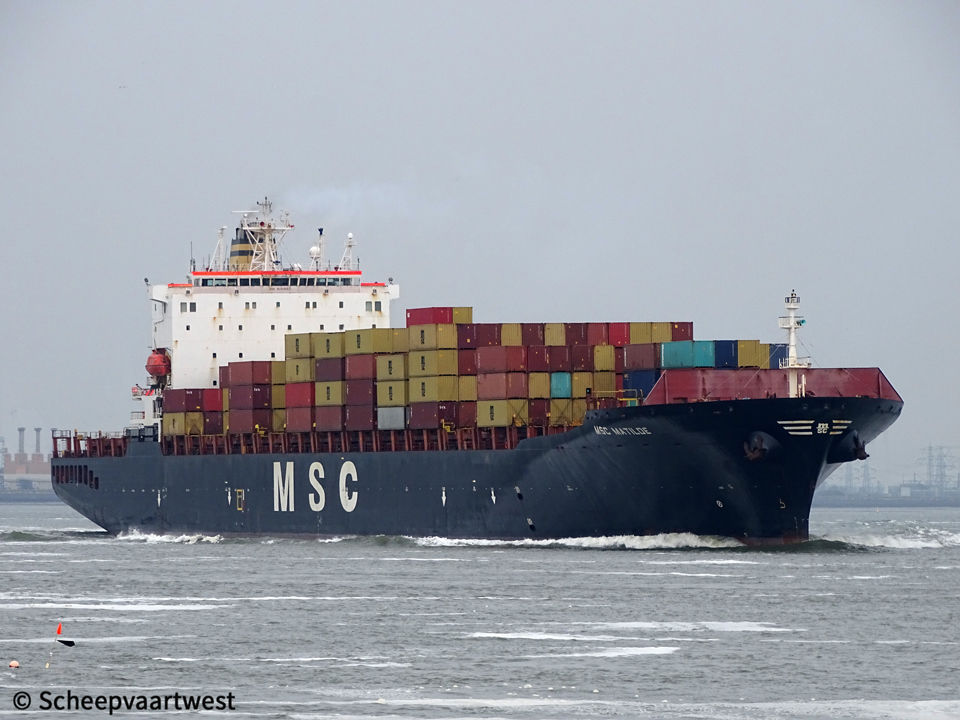

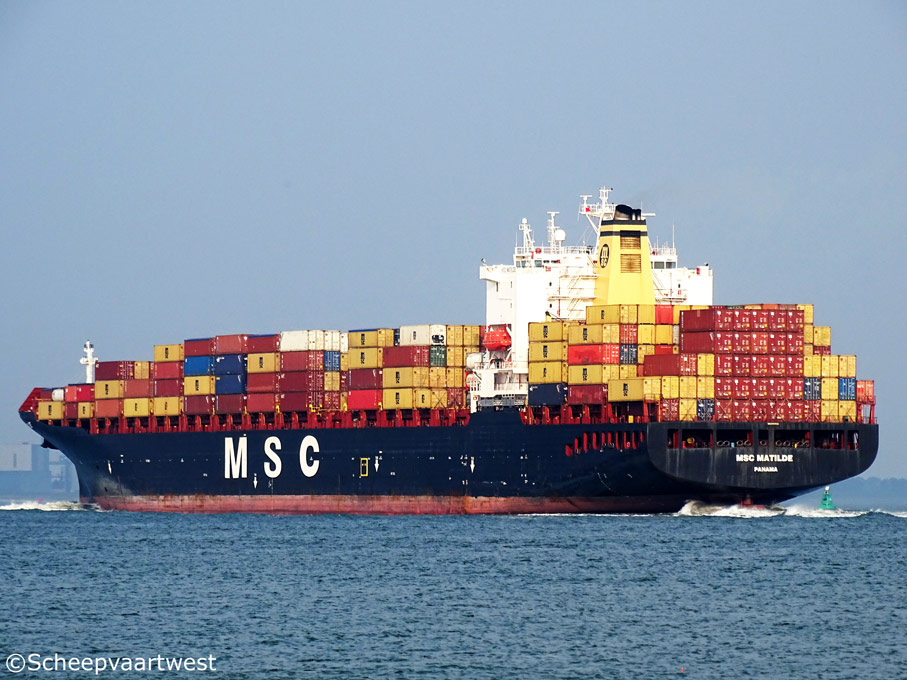

MSC Matilde 03   MSC Matilde 01   MSC Matilde 02   MSC Matilde 04   MSC Matilde IMO 9181663 05   MSC Matilde IMO 9181663 07
Westerschelde 03/04/17   Westerschelde 27/05/16 Westerschelde 19/07/15 Westerschelde 30/04/19   Westerschelde 29/07/16   Westerschelde 06/06/15


Name

MSC MATILDE

Previous names

1999 - 04/2002 Saudi Jubail

Type

Cellular containership

IMO-number

9181663

Call sign

HODP

Flag

Republic of Panama

Port of registry

Panama City

GT

53.208 t

DWT

67.678 t

NT

35.277 t

Number of 20ft containers

4.400

Number of 40ft containers

3.720

Reefer points

350

Length

294,07 m overall

282,08 m between perpendiculars

Breadth

32,25 m

Draught

Max.: 13,52 m

Forecastle

26,23 m

Freeboard

3.795 mm

Depth

17,28 m

Speed

Max.: 24,0 knots

Built

1999

Keel laid

28/12/1998

Launch date

10/04/1999

Date of completion

13/08/1999

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

530, Jangpyeong-ri, Sinhyeon-eup

Geoje, Kyongsang-namdo

Republic of Korea

Yard number

1261

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 9K90MC - 2 stroke single acting 9 cylinder 900 x 2.550 mm combustion engine 41.145 kW / 55.941 hp at 94,0 rpm

Manufacturer: Samsung Heavy Industries Co., Ltd.

12th Fl., Dong Nam Tower Bldg. 890-25, Daechi-dong, Kang Nam-gu

Seoul

Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft at 94,0 rpm

Boilers

Steam boiler, oil fired - 8,0 bar

Heating surface: 99,0 m²

Steam boiler, exhaust gas heated - 8,0 bar

Heating surface: 1.020,0 m²

Year of manufacture: 1999

Manufacturer: ThyssenKrupp Marine Systems GmbH
Werftstr. 112-114

24143 Kiel

Federal Republic of Germany

Electric installations

1 Plant 440/220 V - 1.875 kVA

2 Plants 440/220 V - 2.500 kVA

1 Plant 440 V - 3.750 kVA

1 Plant 440 V - 250 kVA

Shaft generator

1x 3.750 kVA

Generators

2x Main diesel generatorsets each 2.500 kVA - 2.000 kW - 2.717 hp

1x Diesel generatorset 1.875 kVA - 1.500 kW - 2.038 hp

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 12.500 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver 1.500 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.900 kW, forward

Tank capacities

Fuel oil: 6.650 m³

Ballast water: 17.585 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Cargo gear

Gearless

Crew size

35

Manager

MSC Shipmanagement

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Compania Naviera Matilde SA

c/o Eskildsen & Eskildsen
WTC, Calle 50 No. 102 Edificio Universal No. 50 Planta Baja No. 6

Panama City

Republic of Panama

Renamed

01/2023 MSC Matilde V

Republic of Panama, Panama City - Call sign: HODP

Owner: Compania Naviera Matilde SA

Manager: MSC Ship Management (Hong Kong) Ltd., Hong Kong - china

ISM Manager: MSC Ship Management Ltd., Limassol - Cyprus

Latest data adjustment

26 May 2023
