Westerschelde 31 October 2019 |
Westerschelde 22/07/19 | Westerschelde 11/09/15 | Westerschelde 25/05/15 | ||
Name |

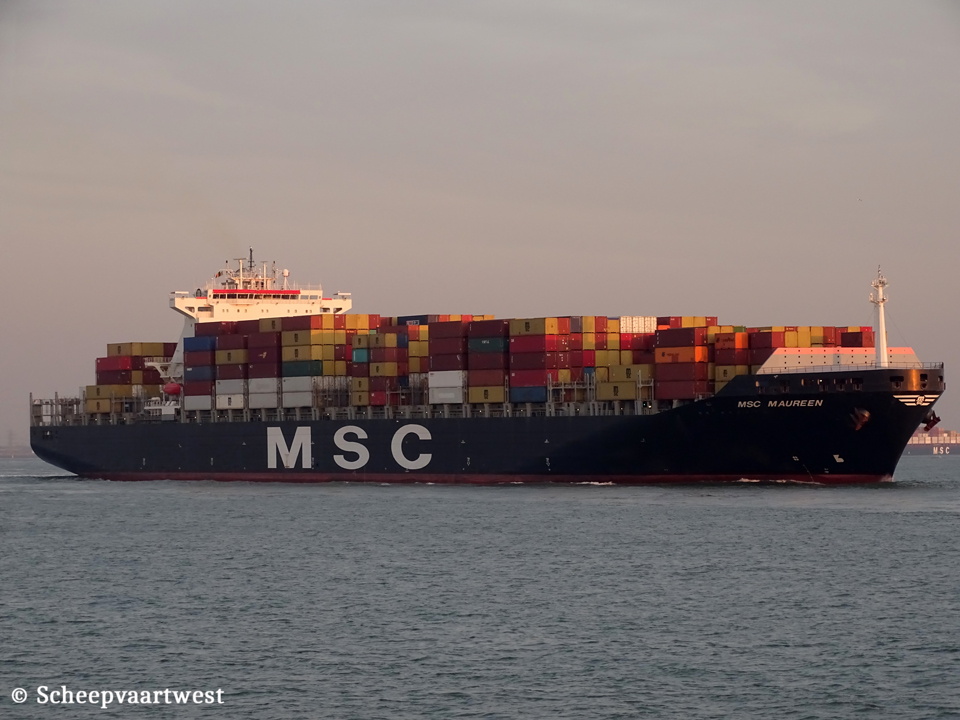

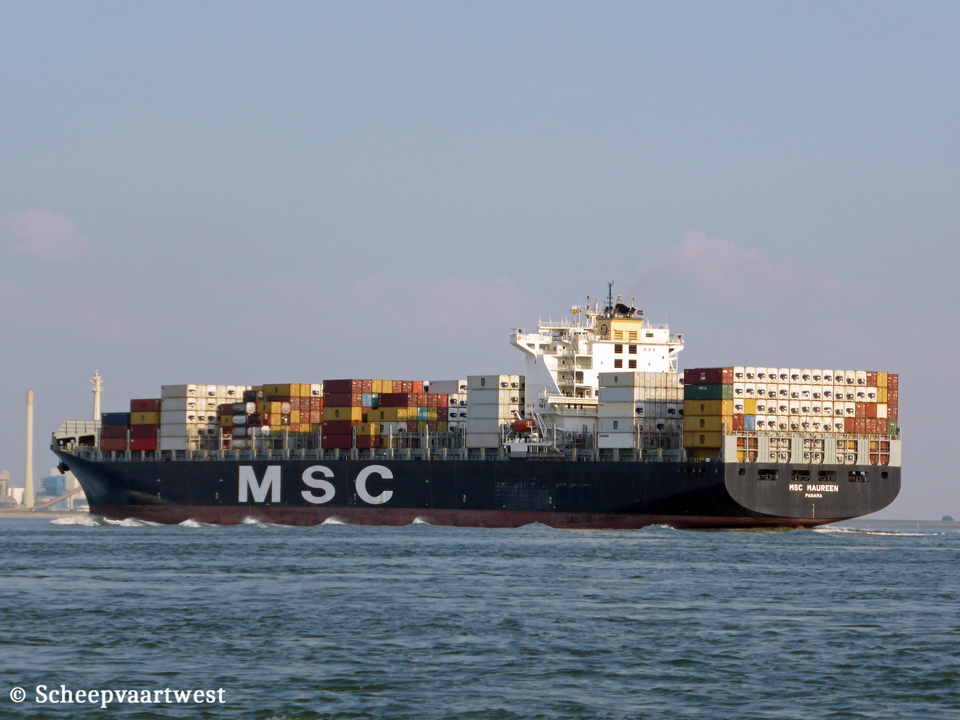

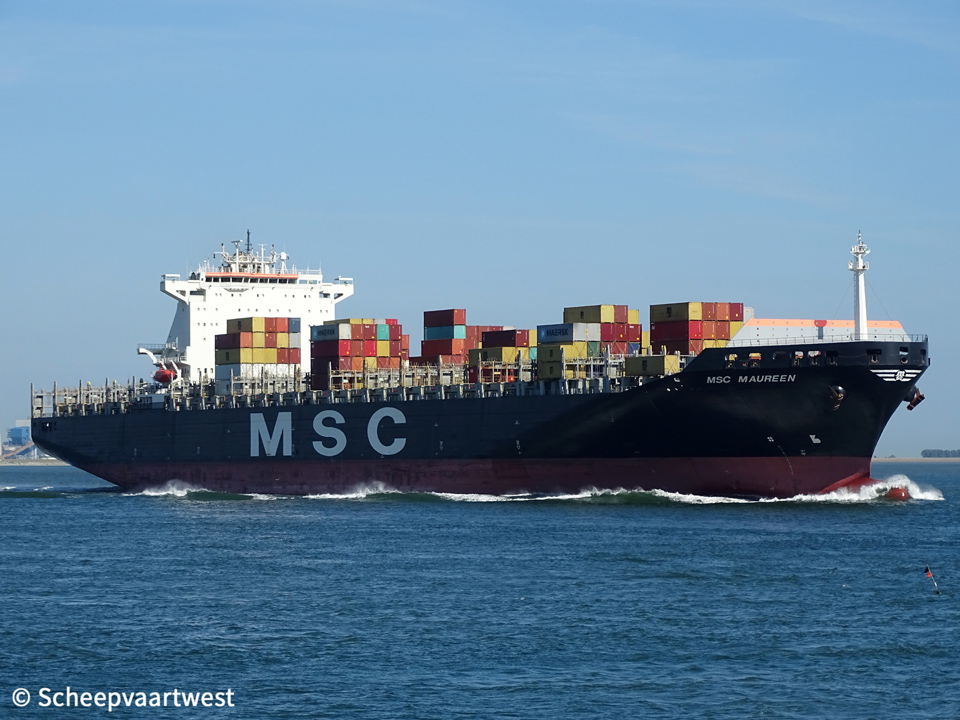

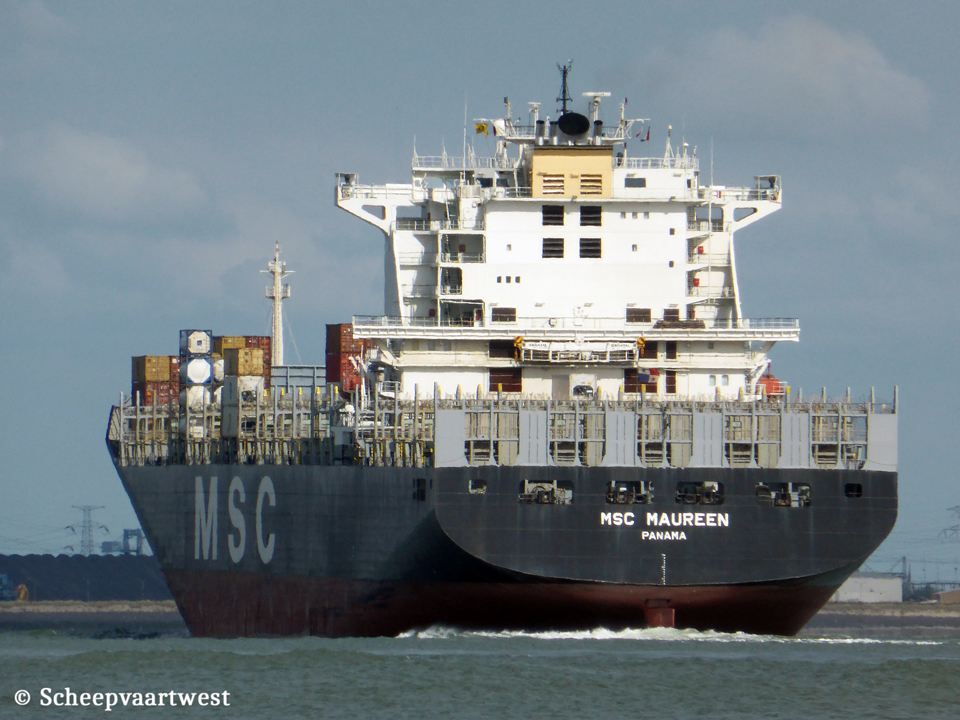

MSC MAUREEN |
Type |
Cellular containership |
IMO-number |
9251717 |
Call sign |
HPMP |
Flag |
Republic of Panama |
Port of registry |
Panama City |
GT |
75.590 t |
DWT |
Summer: 85.810 t |
NT |
42.233 t |
Number of 20ft containers |
6.750 |
Container capacity 14t |
5.150 t |
Reefer capacity |
400 |
Length |
299,99 m overall 286,56 m between perpendiculars |
Breadth |
40,00 m extreme |
Draught |
Summer: 14,50 m |
Keel to mast end |
60,63 m |
Depth |
24,20 m |
Speed |
Max: 25,6 knots |
Built |
2003 |
Keel laid |
28/04/2003 |
Launch date |
19/07/2003 |
Date of completion |
18/06/2003 |
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard 3370, Geoje-daero Geoje-si, Kyongsang-namdo Republic of Korea |
Yard number |
4088 |
Hull material |
Shipbuilding steel (higher tensile) |
Hull type |
Double bottom |
Watertight bulkheads |
9 |
Main engine |
1x Doosan/MAN-B&W 10K98MC-C - 2 stroke single acting 10 cylinder 980 x 2.400 mm combustion engine 57.100 kW / 77.633 hp at 104, rpm Manufacturer: Doosan Engine Co., Ltd. 69 Sinchon-dong Changwon, Kyungnam 641-370 |
Propellers |
1x Solid propeller (Keyless) - aft at 104,0 rpm |
Boilers |
Steam boiler, oil fired - 9,8 bar Heating surface: 137,8 m² Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 842,7 m² Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory) 505, Sinpyung-dong, Saha-gu Busan, Kyongsang-namdo Republic of Korea |
Electric installations |
4x Plants each 440/220 V - 2.625 kVA 1x Plant 440 V - 688 kVA |
Generators |
4x Wärtsilä 6R32LND main diesel generatorsets each 2.625 kVA / 2.100 kW |
Emergency generator |
1x Cummins VTA28 DM diesel generatorset 688 kVA |
Compressed air receivers |
2x Receivers each 22.000 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar |
Bow thruster |
2.000 kW |
Number of holds |
7 |
Tank capacities |
Ballast: 20.694 m² |
Anchor equipment |
Length: 752,10 m Diameter: 100 mm |
Cargo gear |
Gearless |
Commercial manger |
MSC Mediterranean Shipping Co. chemin Rieu, 12-14 1208 Geneva Switzerland |
ISM manager |
Mediterranean Shipping Company S.r.l. Via Francesco Ciampa Piano di Sorrento Napoli Italy |
Operator |
MSC - Mediterranean Shipping Company |
Registered owner |
Compania Naviera Duart S.A |
Previous register owner |
Xiang L28 HK International Ship Lease Co. Limited Care of MSC Mediterranean Shipping Co SA, 1208 Geneva- Switzerland |
Latest data adjustment |
10 October 2022 |
